0.80MM(.031")
Home /

Wire-to-Board

 /

0.80MM(.031")

 /

20801AWR

20801AWR

20801AWR

PIN:1*2-1*16P H:1.90MM

  • Product Code:

    20801AWR

  • Order(MOQ):

    3000

  • Product Specifications:

    0.031

  • Product Origin:

    Xiamen City, China.

  • Color:

    Red, yellow, blue, green, brown, black, white, grey

  • Shipping Port:

    Xiamen port, China.

  • Lead Time:

    Within 7-10 working days as soon as we received the deposit.
Inquire Now

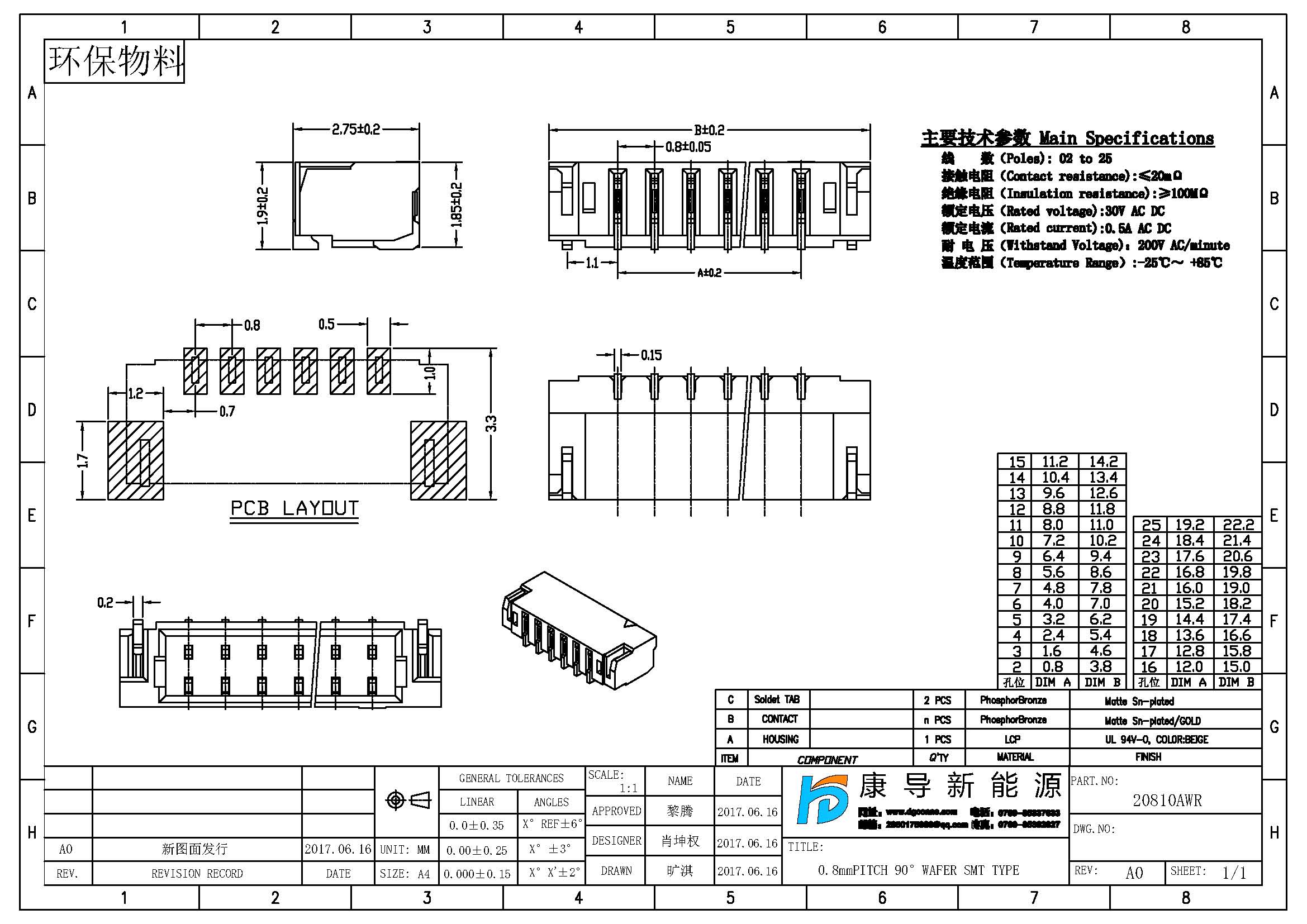

/js/htmledit/kindeditor/attached/20241007/20241007085351_42473.jpg

Spec：0.8mm PITCH 90° WAFER SMT TYPE
Poles：2-25
Contact resistance：20mΩ Max
Insulation resistance：100MΩ Min
Rated Voltage：30V AC DC
Rated Current：0.5A AC DC
Withstand Voltage：200V AC/minute
Temperature Range：-25℃~+85℃
