2.50MM(.098")
42501

42501W90

  • Product Code:

    42501W90
  • Order(MOQ):

    3000
  • Product Specifications:

    0.098"90°Dual WAFER DIP TYPE
  • Product Origin:

    Xiamen City, China.
  • Color:

    Red, yellow, blue, green, brown, black, white, grey
  • Shipping Port:

    Xiamen port, China.
  • Lead Time:

    Within 7-10 working days as soon as we received the deposit.

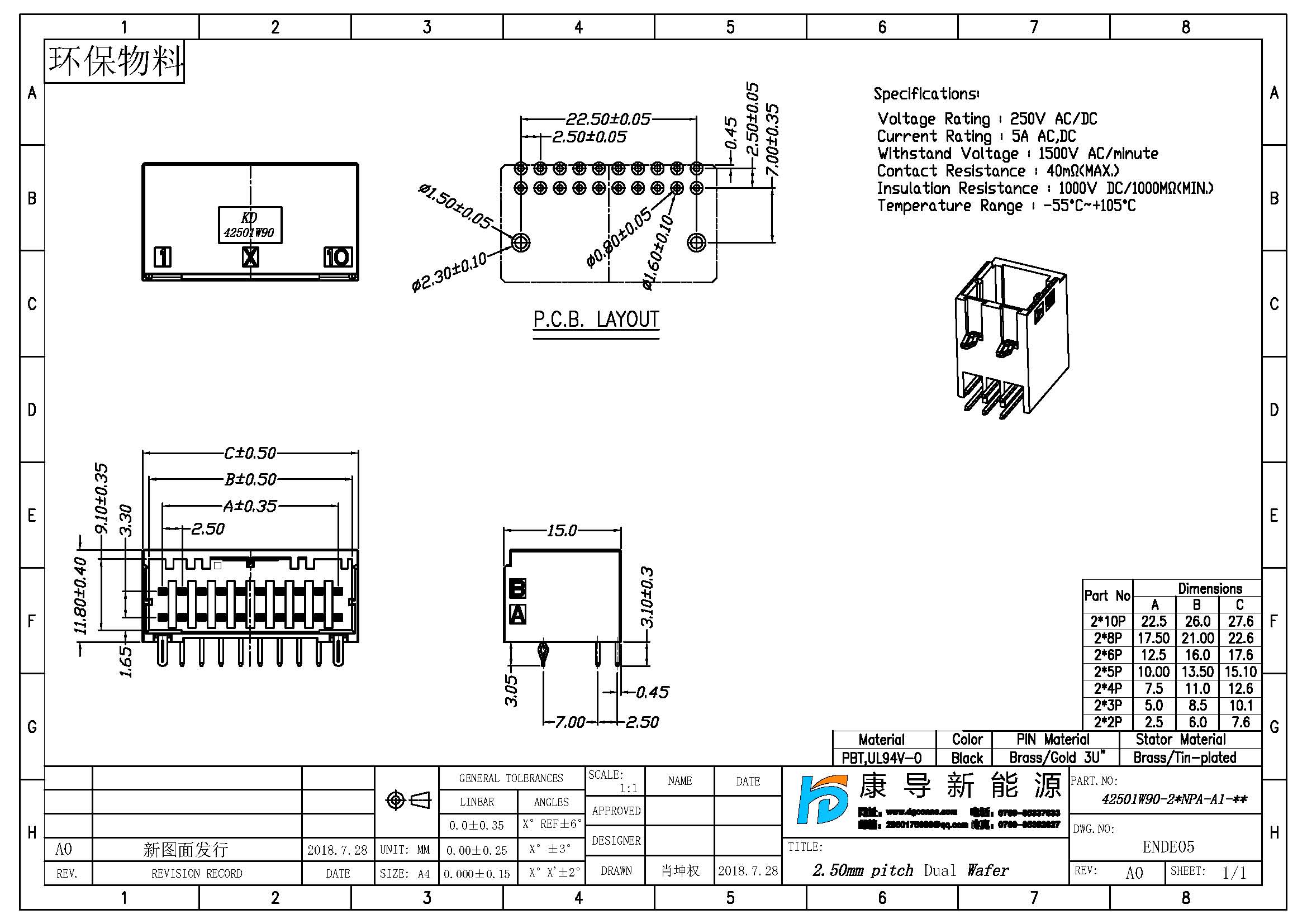

/js/htmledit/kindeditor/attached/20240827/20240827081914_91245.jpg

Spec:2.5mm PITCH 90° Dual WAFER DIP TYPE
Poles:2*2~2*10
Rated Current:5A AC DC
Rated Voltage:250V AC DC
Contact resistance:40mΩ Max
Insulation resistance:100MΩ Min
Withstand Voltage:1500V AC/minute
Temperature Range:-55℃~+105℃
