2.50MM(.098")
42508

42508TXP

  • Product Code:

    42508TXP
  • Order(MOQ):

    3000
  • Product Specifications:

    0.098"amphenol connector
  • Product Origin:

    Xiamen City, China.
  • Color:

    Red, yellow, blue, green, brown, black, white, grey
  • Shipping Port:

    Xiamen port, China.
  • Lead Time:

    Within 7-10 working days as soon as we received the deposit.

/js/htmledit/kindeditor/attached/20240826/20240826105106_27427.jpg

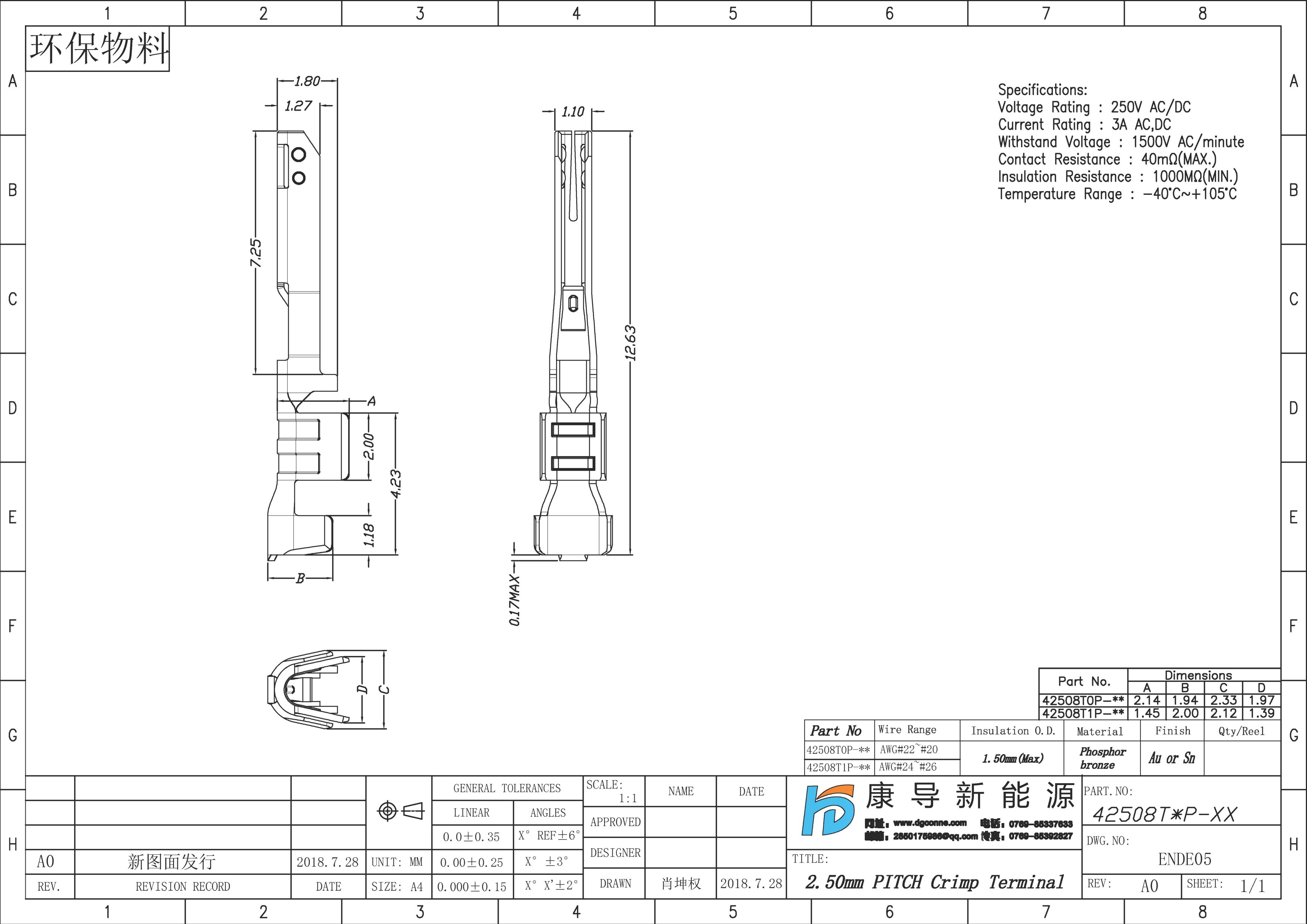

Spec:2.50mm PITCH CRIMP TERMINAL
Wrie Range:AWG#20~#26
Insulation O.D.:1.50mm Max
Material:Phosphor Bronze
Plating:Au or Sn
Rated Current:3A   AC DC
Rated Voltage:250V  AC DC
Contact resistance:40mΩ Max
Insulation resistance:1000MΩ Min
Withstand Voltage:1500V AC/minute
Temperature Range:-40℃~+105℃
