Product Code:
21009AWROrder(MOQ):
3000Product Specifications:
0.039"Single row patch Lying stickProduct Origin:
Xiamen City, China.Color:
Red, yellow, blue, green, brown, black, white, greyShipping Port:
Xiamen port, China.Lead Time:
Within 7-10 working days as soon as we received the deposit./js/htmledit/kindeditor/attached/20240923/20240923090234_71896.jpg

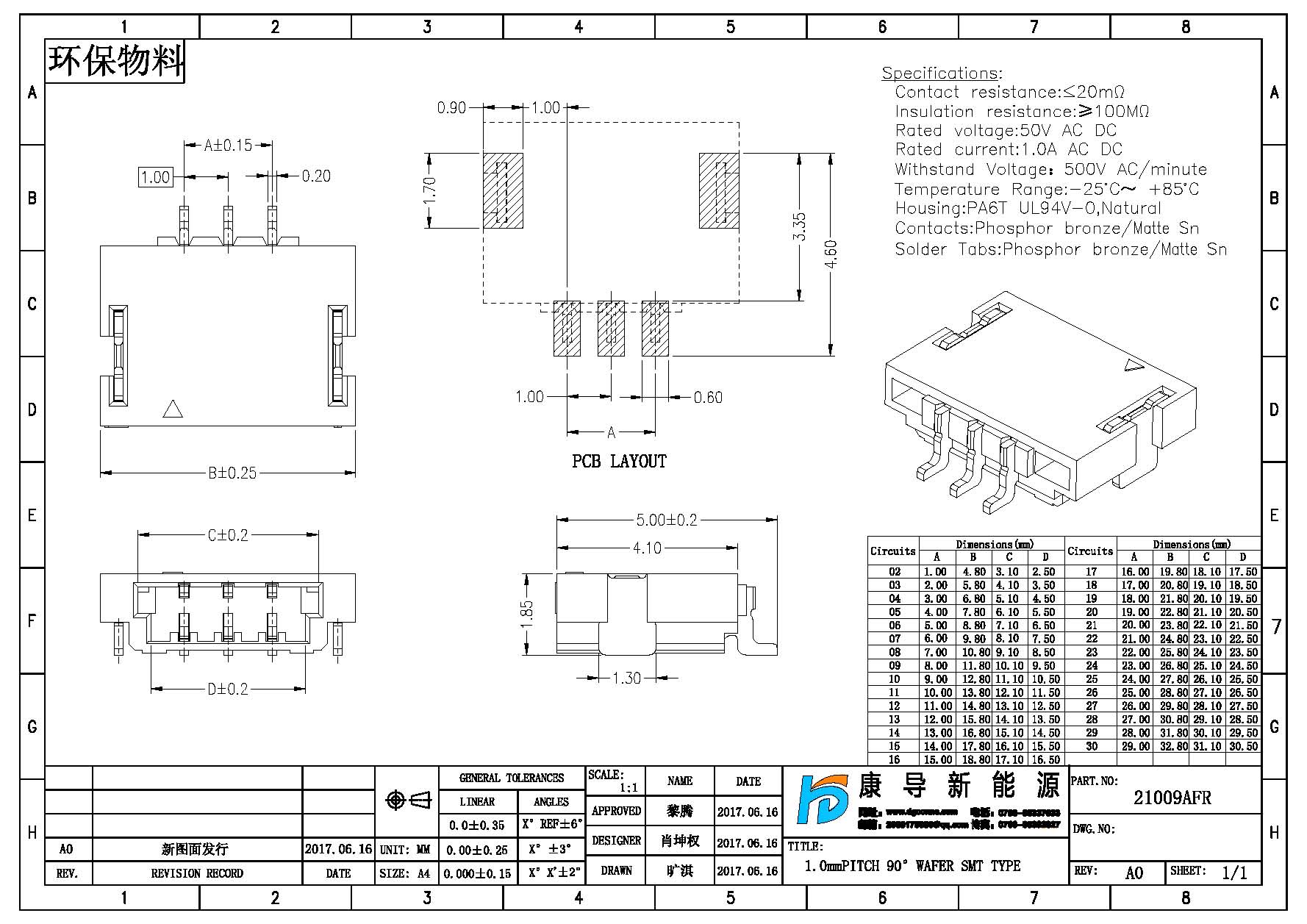

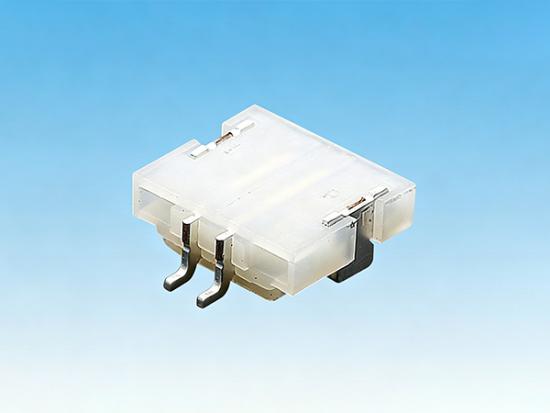

Spec:1.0mm PITCH 90° WAFER SMT TYPE
Poles:2-30
Contact resistance:20mΩ Max
Insulation resistance:100MΩ Min
Rated Voltage:50V AC DC
Rated Current:1.0A AC DC
Withstand Voltage:500V AC/minute
Temperature Range:-25℃~+85℃
