20801AWR

20801AWR

20801AWV

PIN:1*2-1*16P H:2.75MM

  • Product Code:

    20801AWV

  • Order(MOQ):

    3000

  • Product Specifications:

    0.031"Single row patc Vertical sticker

  • Product Origin:

    Xiamen City, China.

  • Color:

    Red, yellow, blue, green, brown, black, white, grey

  • Shipping Port:

    Xiamen port, China.

  • Lead Time:

    Within 7-10 working days as soon as we received the deposit.
Inquire Now

/js/htmledit/kindeditor/attached/20241007/20241007085901_10912.jpg

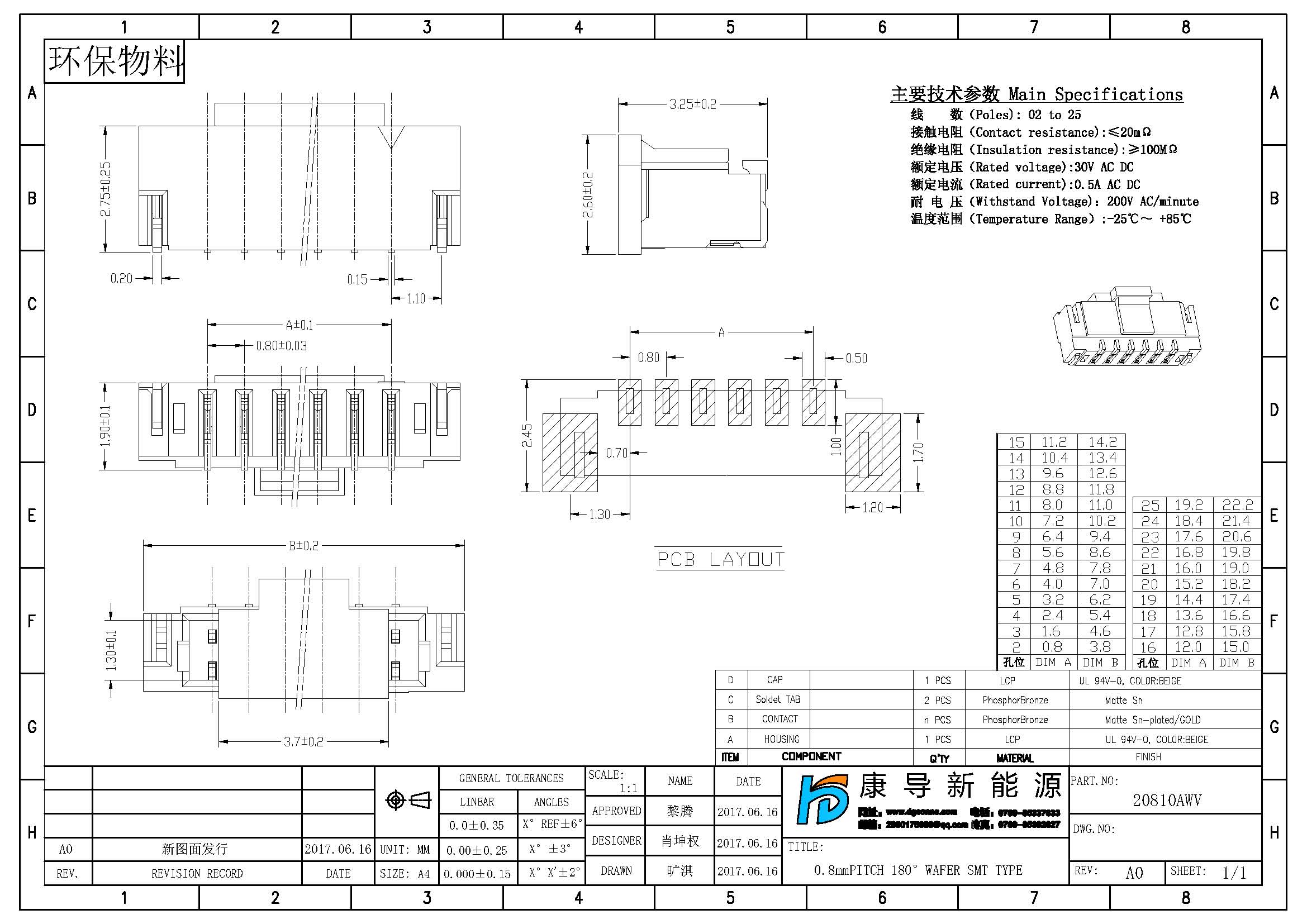

Spec：0.8mm PITCH 180° WAFER SMT TYPE
Poles：2-25
Contact resistance：20mΩ Max
Insulation resistance：100MΩ Min
Rated Voltage：30V AC DC
Rated Current：0.5A AC DC
Withstand Voltage：200V AC/minute
Temperature Range：-25℃~+85℃
