3.20MM(.126")
33201

33201TOP

  • Product Code:

    33201TOP
  • Order(MOQ):

    3000
  • Product Specifications:

    0.126"amphenol connector
  • Product Origin:

    Xiamen City, China.
  • Color:

    Red, yellow, blue, green, brown, black, white, grey
  • Shipping Port:

    Xiamen port, China.
  • Lead Time:

    Within 7-10 working days as soon as we received the deposit.

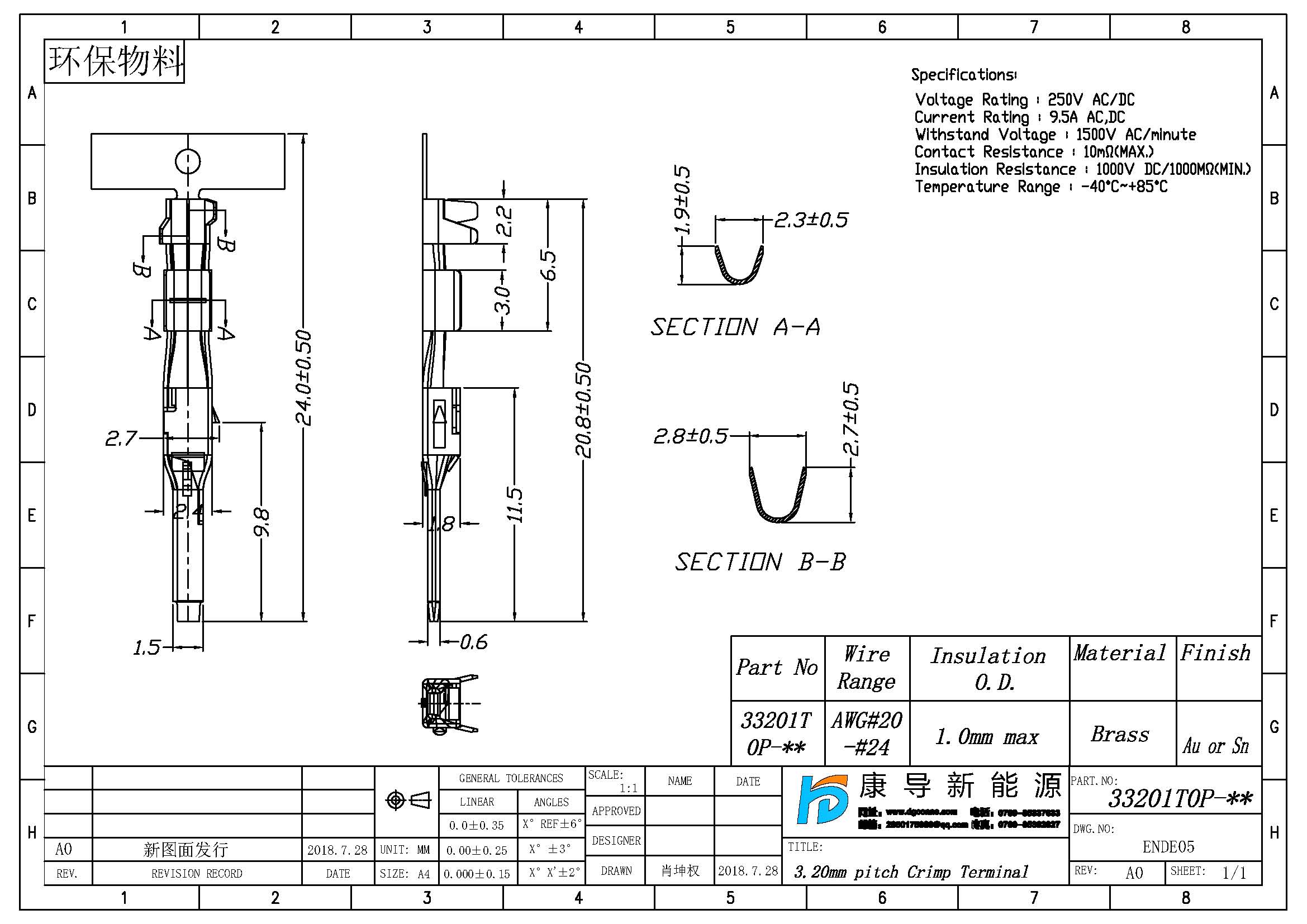

/js/htmledit/kindeditor/attached/20240826/20240826090423_16335.jpg

Spec:3.2mm PITCH TERMINAL
Wrie Range:AWG#20~#24
Insulation O.D.:1.0mm
Material:Phosphor Bronze
Plating:Au or Sn
Rated Current:9.5A AC DC
Rated Voltage:1500V AC DC
Contact resistance:10mΩ Max
Insulation resistance:1000MΩ Min
Withstand Voltage:1000V AC/minute
Temperature Range:-40℃~+85℃
