3.00MM(.118")
23002Y

23001T

  • Product Code:

    23001T
  • Order(MOQ):

    3000
  • Product Specifications:

    0.118"Female terminal
  • Product Origin:

    Xiamen City, China.
  • Color:

    Red, yellow, blue, green, brown, black, white, grey
  • Shipping Port:

    Xiamen port, China.
  • Lead Time:

    Within 7-10 working days as soon as we received the deposit.

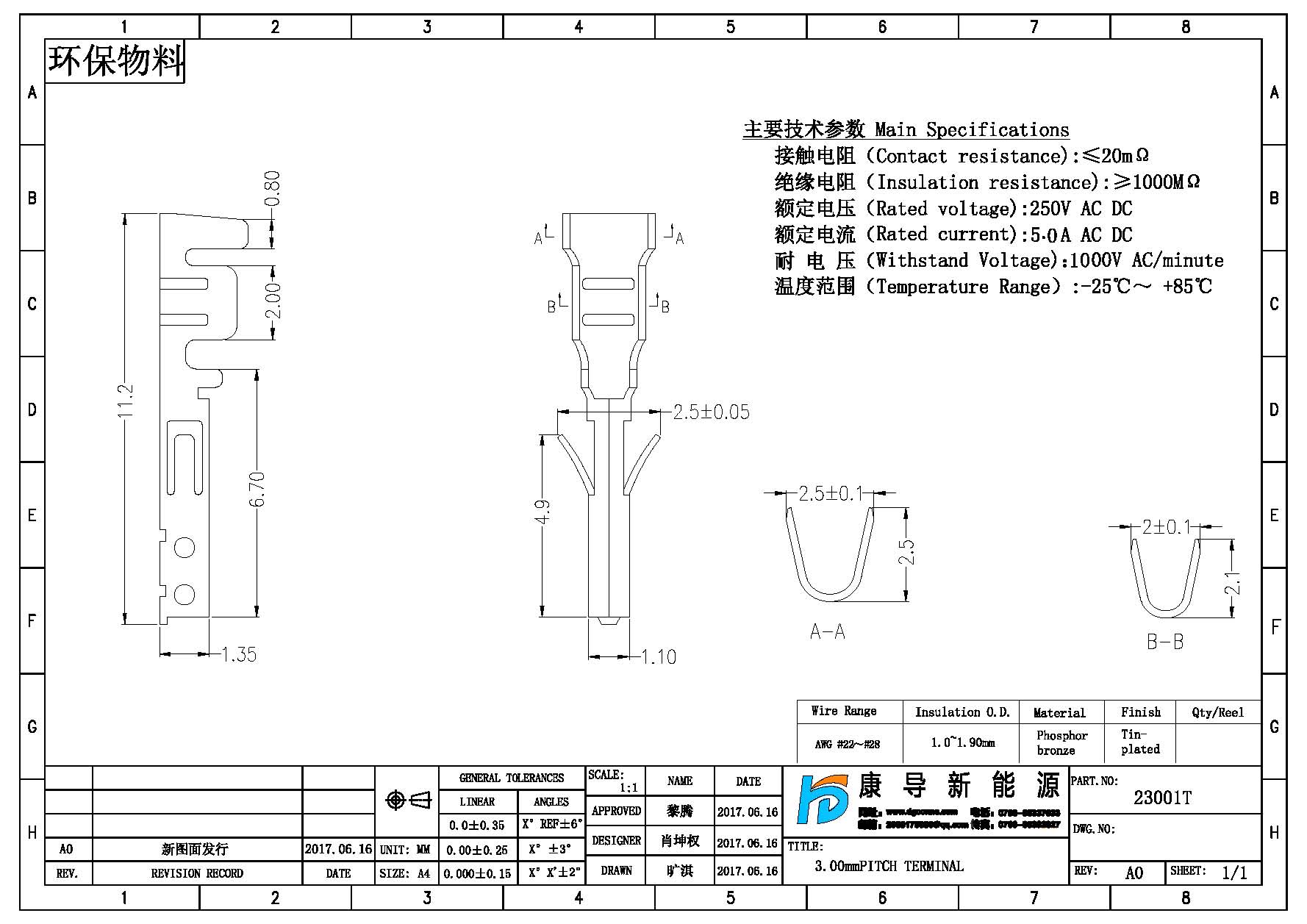

/js/htmledit/kindeditor/attached/20240905/20240905162848_32967.jpg

Spec:3.00mm PITCH TERMINAL
Wrie Range:AWG #22~#28
Insulation O.D.:1.0~1.90mm
Material:Phosphor bronze
Plating:Sn
Rated Current:5.0A AC DC
Rated Voltage:250V AC DC
Contact resistance:20mΩ Max
Insulation resistance:1000MΩ Min
Withstand Voltage:1000V AC/minute
Temperature Range:-25℃~+85℃

Leave A Message
If you have questions or suggestions,please leave us a message,we will reply you as soon as we can!
Subject : 23002Y
