Product Code:
23001ATOrder(MOQ):
3000Product Specifications:
0.118"amphenol connectorProduct Origin:
Xiamen City, China.Color:
Red, yellow, blue, green, brown, black, white, greyShipping Port:
Xiamen port, China.Lead Time:
Within 7-10 working days as soon as we received the deposit./js/htmledit/kindeditor/attached/20240905/20240905145043_20673.jpg

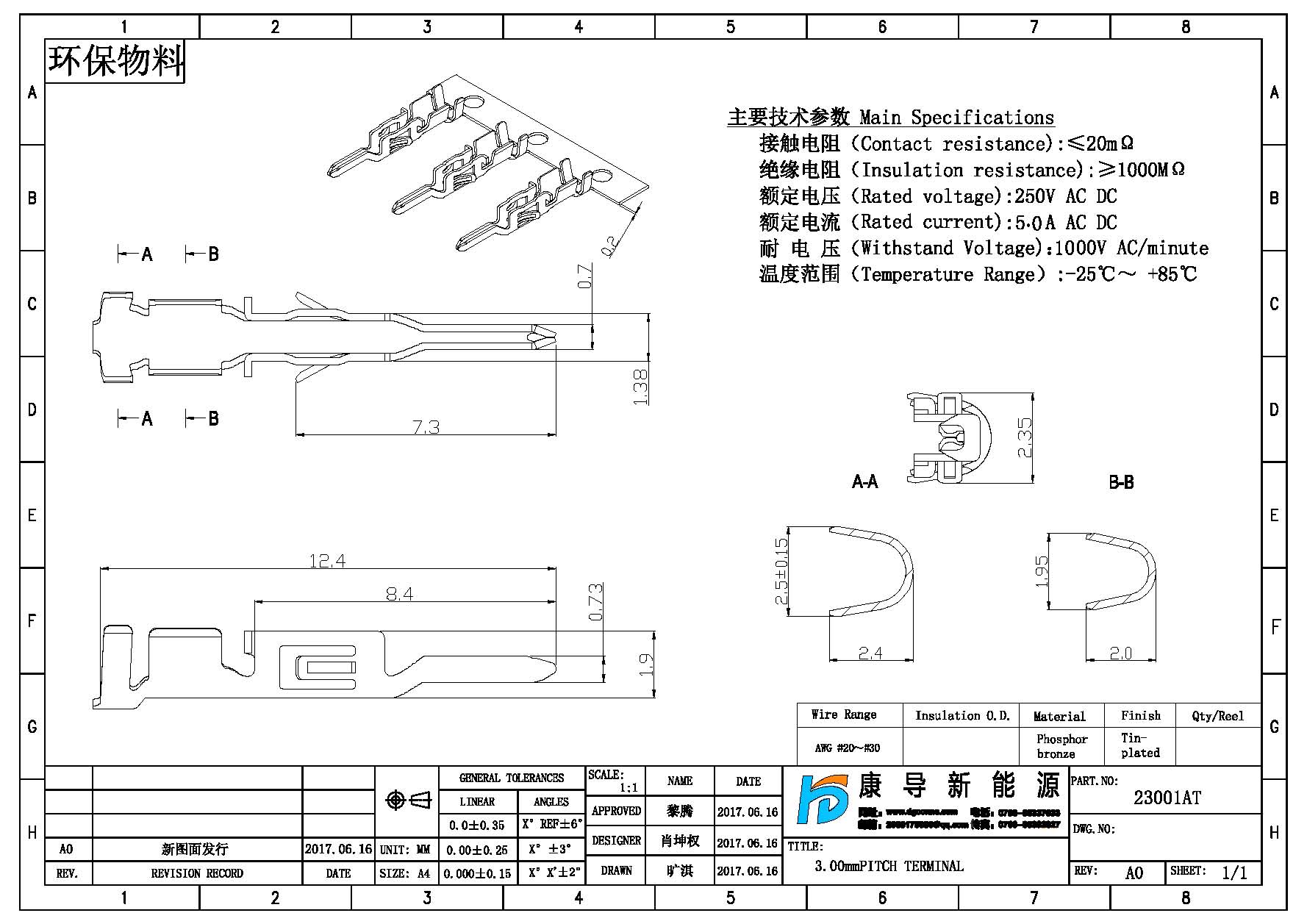

Spec:3.00mm PITCH TERMINAL
Wrie Range:AWG #20~#30
Insulation O.D.:
Material:Phosphor bronze
Plating:Sn
Rated Current:5.0A AC DC
Rated Voltage:250V AC DC
Contact resistance:20mΩ Max
Insulation resistance:1000MΩ Min
Withstand Voltage:1000V AC/minute
Temperature Range:-25℃~+85℃
