Product Code:
45702W90Order(MOQ):
3000Product Specifications:
0.224 90° SINGLE WAFER DIP TYPEProduct Origin:
Xiamen City, China.Color:
Red, yellow, blue, green, brown, black, white, greyShipping Port:
Xiamen port, China.Lead Time:
Within 7-10 working days as soon as we received the deposit./js/htmledit/kindeditor/attached/20240822/20240822140930_69577.jpg

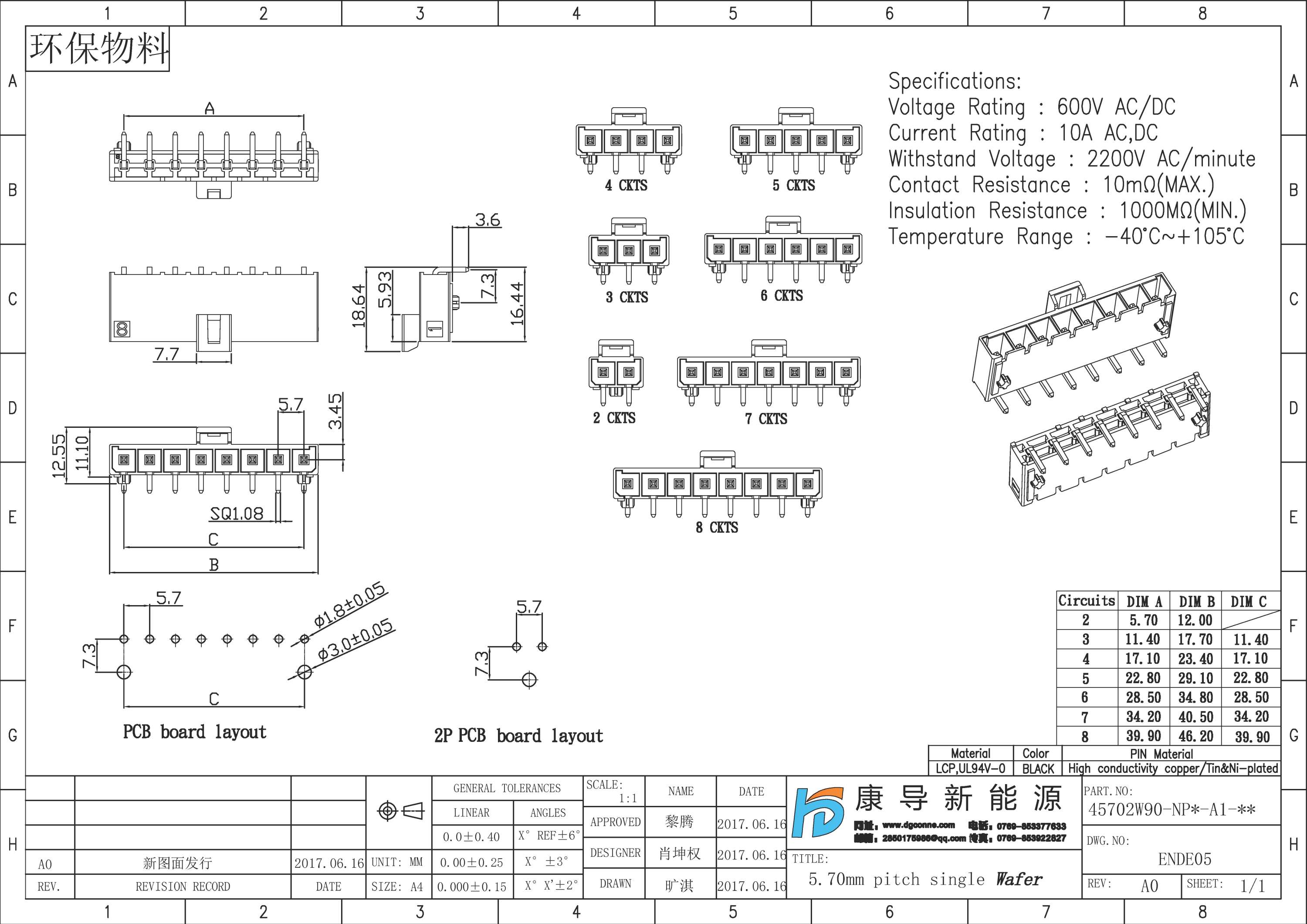

Spec:5.7mm PITCH 90° SINGLE WAFER DIP TYPE
Poles:2~8
Rated Current:10A AC DC
Rated Voltage:600V AC DC
Contact resistance:10mΩ Max
Insulation resistance:1000MΩ Min
Withstand Voltage:2200V AC/minute
Temperature Range:-40℃~+105℃
