Product Code:
45701W01Order(MOQ):
3000Product Specifications:
0.224 180° Dual WAFER DIP TYPE With earsProduct Origin:
Xiamen City, China.Color:
Red, yellow, blue, green, brown, black, white, greyShipping Port:
Xiamen port, China.Lead Time:

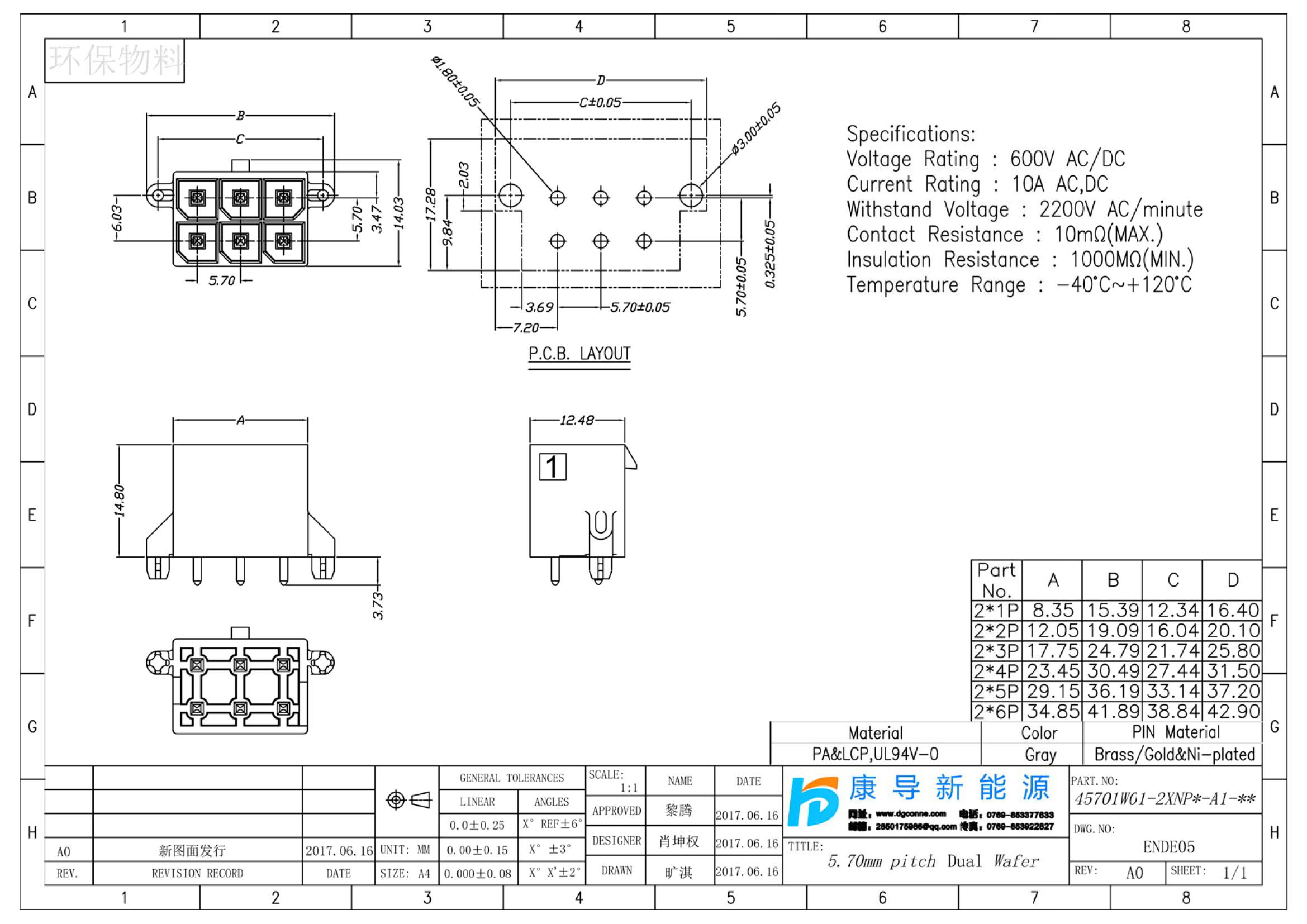

Within 7-10 working days as soon as we received the deposit./js/htmledit/kindeditor/attached/20240822/20240822154539_80972.jpg
Spec:5.7mm PITCH 180° Dual WAFER DIP TYPE
Poles:2*1~2*6
Rated Current:3A AC DC
Rated Voltage:600V AC DC
Contact resistance:10mΩ Max
Insulation resistance:1000MΩ Min
Withstand Voltage:2200V AC/minute
Temperature Range:-40℃~+105℃
