5.70MM(.224")
45702

45702W00

  • Product Code:

    45702W00
  • Order(MOQ):

    3000
  • Product Specifications:

    0.224 180° SINGLE WAFER DIP TYPE
  • Product Origin:

    Xiamen City, China.
  • Color:

    Red, yellow, blue, green, brown, black, white, grey
  • Shipping Port:

    Xiamen port, China.
  • Lead Time:

    Within 7-10 working days as soon as we received the deposit.

/js/htmledit/kindeditor/attached/20240822/20240822140304_84833.jpg

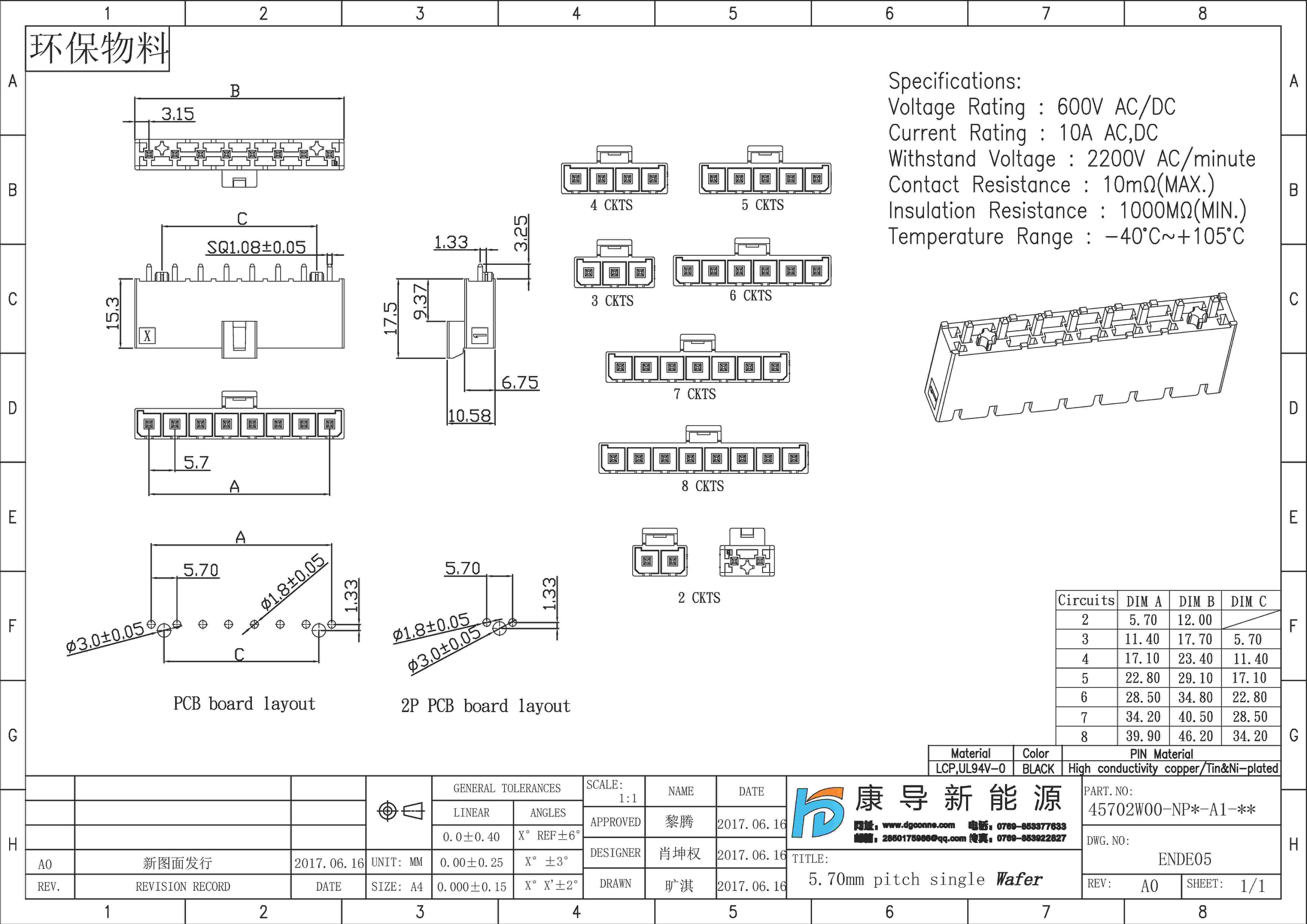

Spec:5.7mm PITCH 180° SINGLE WAFER DIP TYPE
Poles:2~8
Rated Current:10A AC DC
Rated Voltage:600V AC DC
Contact resistance:10mΩ Max
Insulation resistance:1000MΩ Min
Withstand Voltage:2200V AC/minute
Temperature Range:-40℃~+105℃
