Product Code:
KDFH-0103Order(MOQ):
3000Product Specifications:

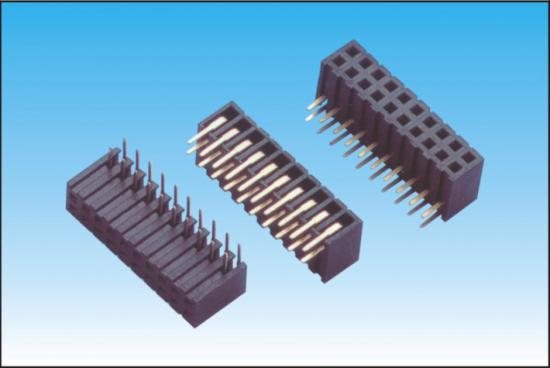

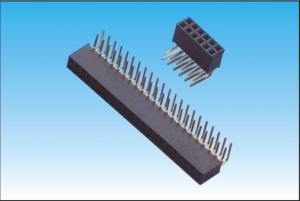

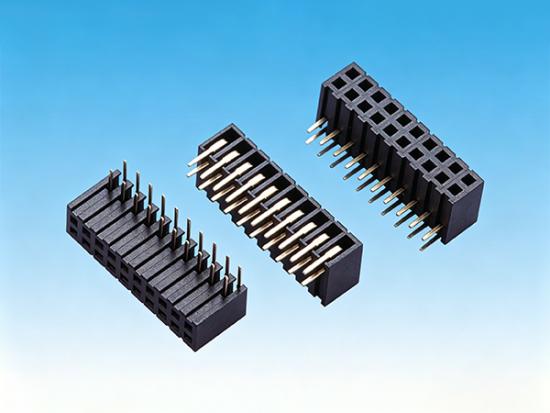

0.079"Female Header,Dual Row , Right Angle Type (U)Product Origin:
Xiamen City, China.Color:
Red, yellow, blue, green, brown, black, white, greyShipping Port:
Xiamen port, China.Lead Time:

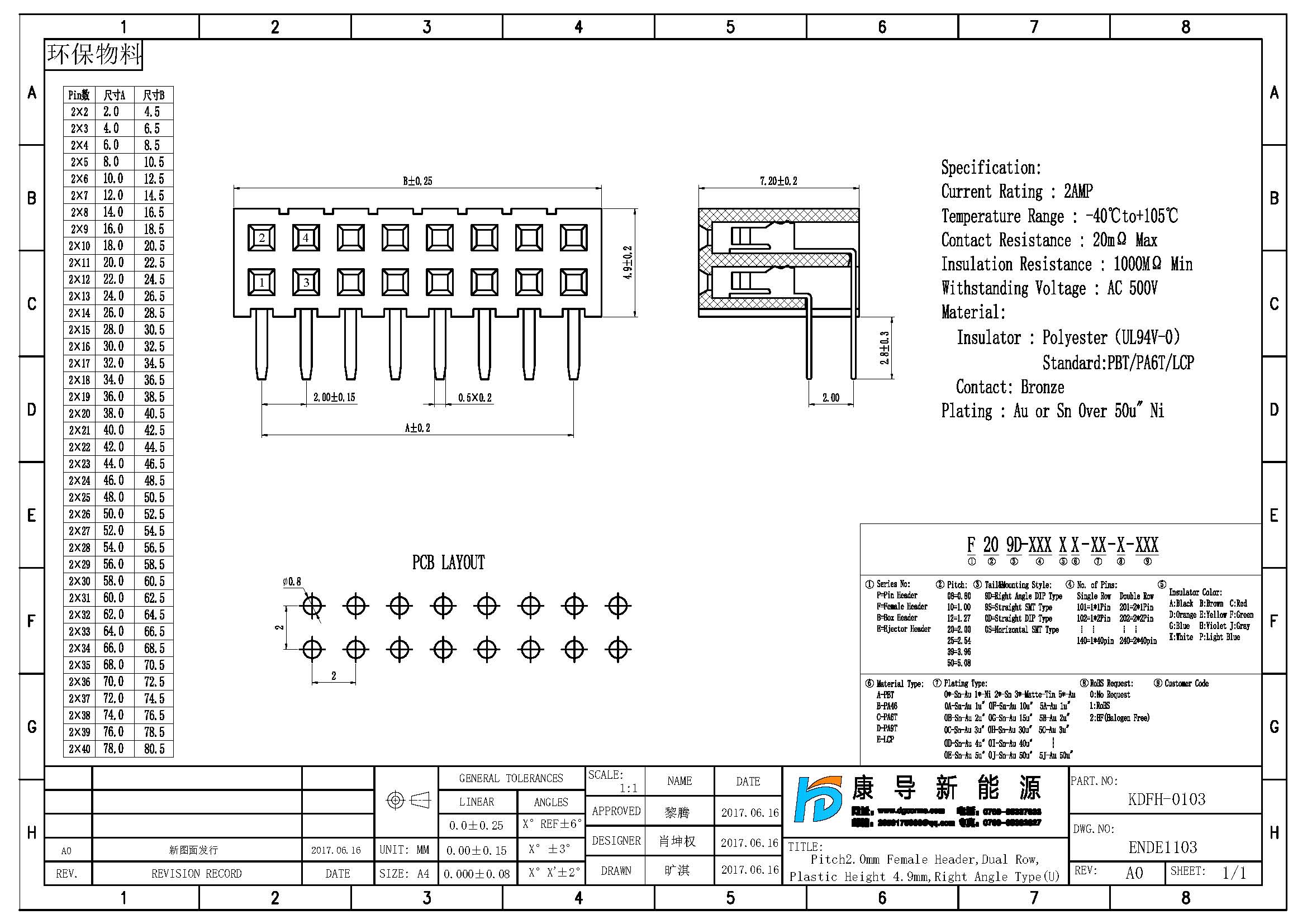

Within 7-10 working days as soon as we received the deposit./js/htmledit/kindeditor/attached/20240902/20240902144144_56364.jpg
Spec:Pitch2.00MM Female Header,Dual Row , Right Angle Type (U)
Pins:2*2-2*40
Plastics Height:7.20MM
Rated Voltage:250V AC DC
Rated Current:2A AC DC
Contact resistance:20mΩ Max
Insulation resistance:1000MΩ Min
Withstand Voltage:500V AC/minute
Temperature Range:-40℃~+105℃
