2.00MM(.079")
Home /

Female Header

/

2.00MM(.079")

/

KDFH-0101

KDFH-0101

KDFH-0101

  • Product Code:

    KDFH-0101
  • Order(MOQ):

    3000
  • Product Specifications:

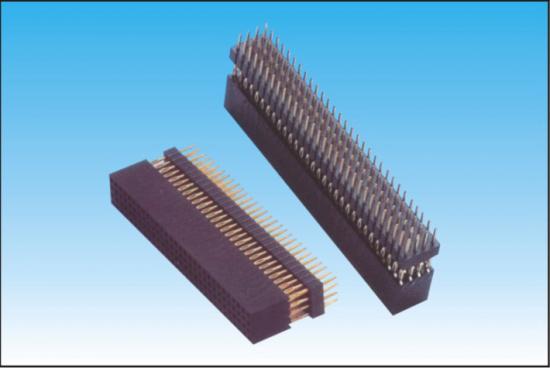

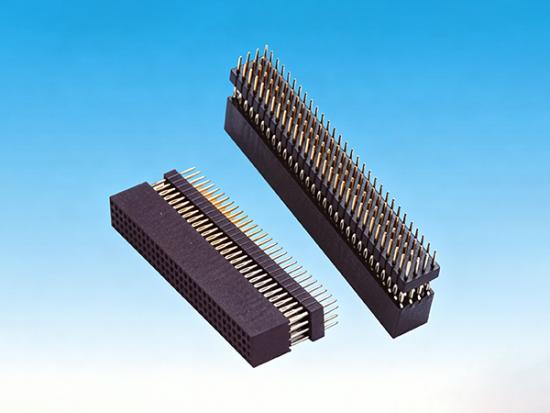

    0.079"Female Header,Triple Row , Elevated DIP Type (Y)
  • Product Origin:

    Xiamen City, China.
  • Color:

    Red, yellow, blue, green, brown, black, white, grey
  • Shipping Port:

    Xiamen port, China.
  • Lead Time:

    Within 7-10 working days as soon as we received the deposit.

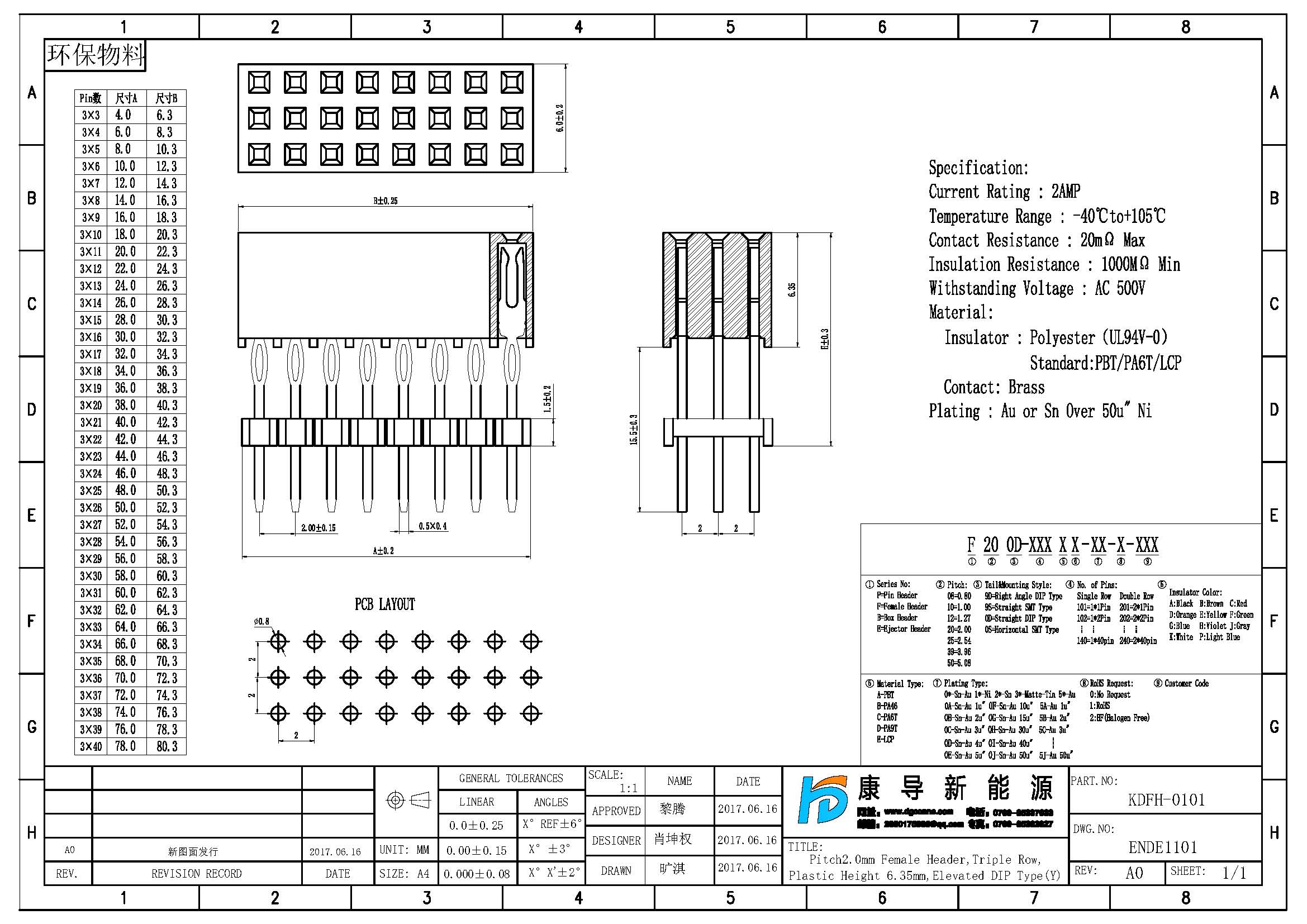

/js/htmledit/kindeditor/attached/20240902/20240902145508_27898.jpg

Spec:Pitch2.00MM Female Header,Triple Row , Elevated DIP Type (Y)
Pins:3*3-3*40
Plastics Height:6.35+1.5MM
Rated Voltage:250V AC DC
Rated Current:2A AC DC
Contact resistance:20mΩ Max
Insulation resistance:1000MΩ Min
Withstand Voltage:500V AC/minute
Temperature Range:-40℃~+105℃
