Product Code:
KDFH-0097Order(MOQ):
3000Product Specifications:
0.079"Female Header,Triple Row ,Right Angle Type (Y)Product Origin:
Xiamen City, China.Color:
Red, yellow, blue, green, brown, black, white, greyShipping Port:
Xiamen port, China.Lead Time:
Within 7-10 working days as soon as we received the deposit./js/htmledit/kindeditor/attached/20240902/20240902165302_91889.jpg

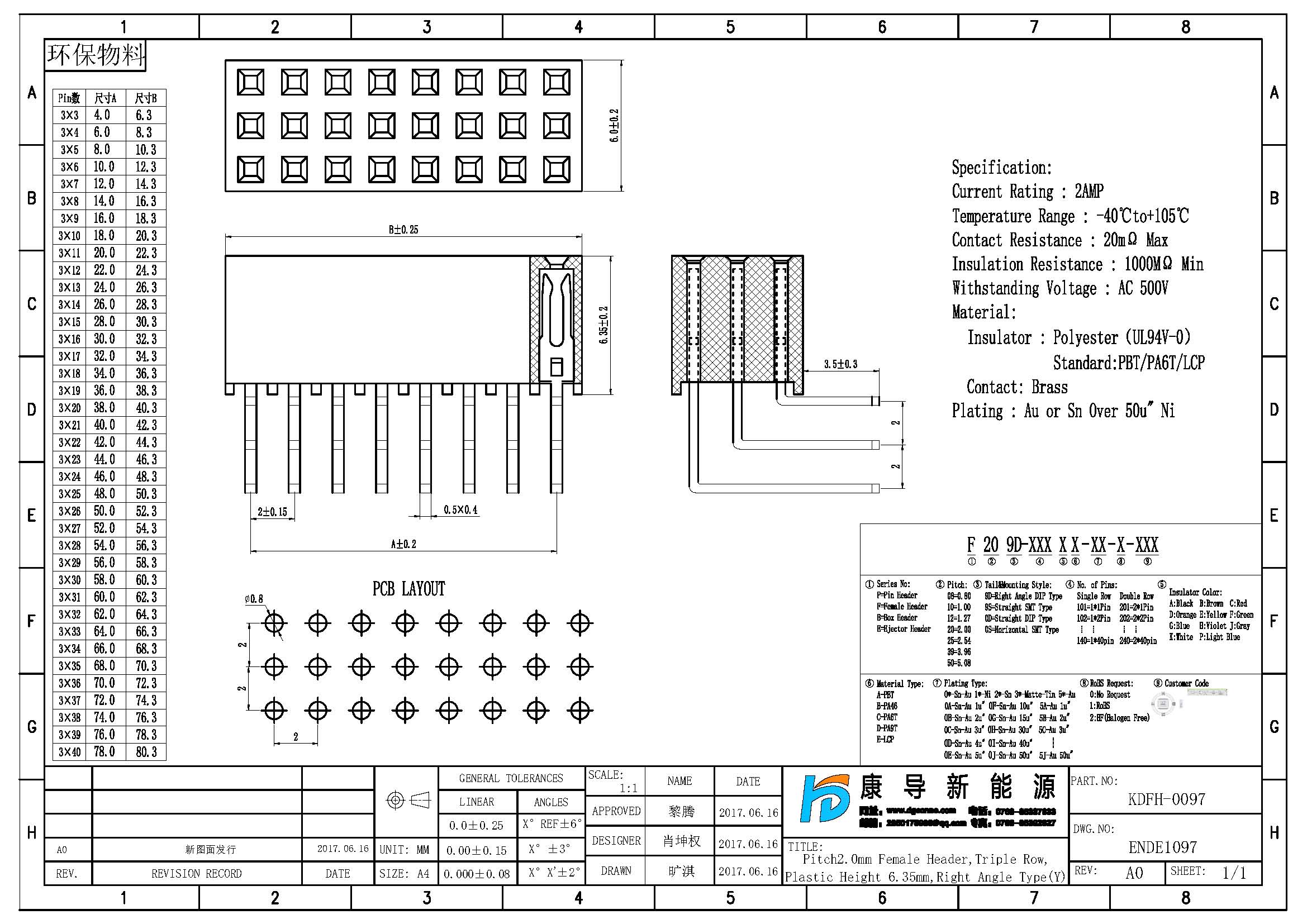

Spec:Pitch2.00MM Female Header,Triple Row ,Right Angle Type (Y)
Pins:3*3-3*40
Plastics Height:6.35MM
Rated Voltage:250V AC DC
Rated Current:2A AC DC
Contact resistance:20mΩ Max
Insulation resistance:1000MΩ Min
Withstand Voltage:500V AC/minute
Temperature Range:-40℃~+105℃
