4.00MM(.157")
44002

44002TOP

  • Product Code:

    44002TOP
  • Order(MOQ):

    3000
  • Product Specifications:

    0.157 amphenol connector
  • Product Origin:

    Xiamen City, China.
  • Color:

    Red, yellow, blue, green, brown, black, white, grey
  • Shipping Port:

    Xiamen port, China.
  • Lead Time:

    Within 7-10 working days as soon as we received the deposit.

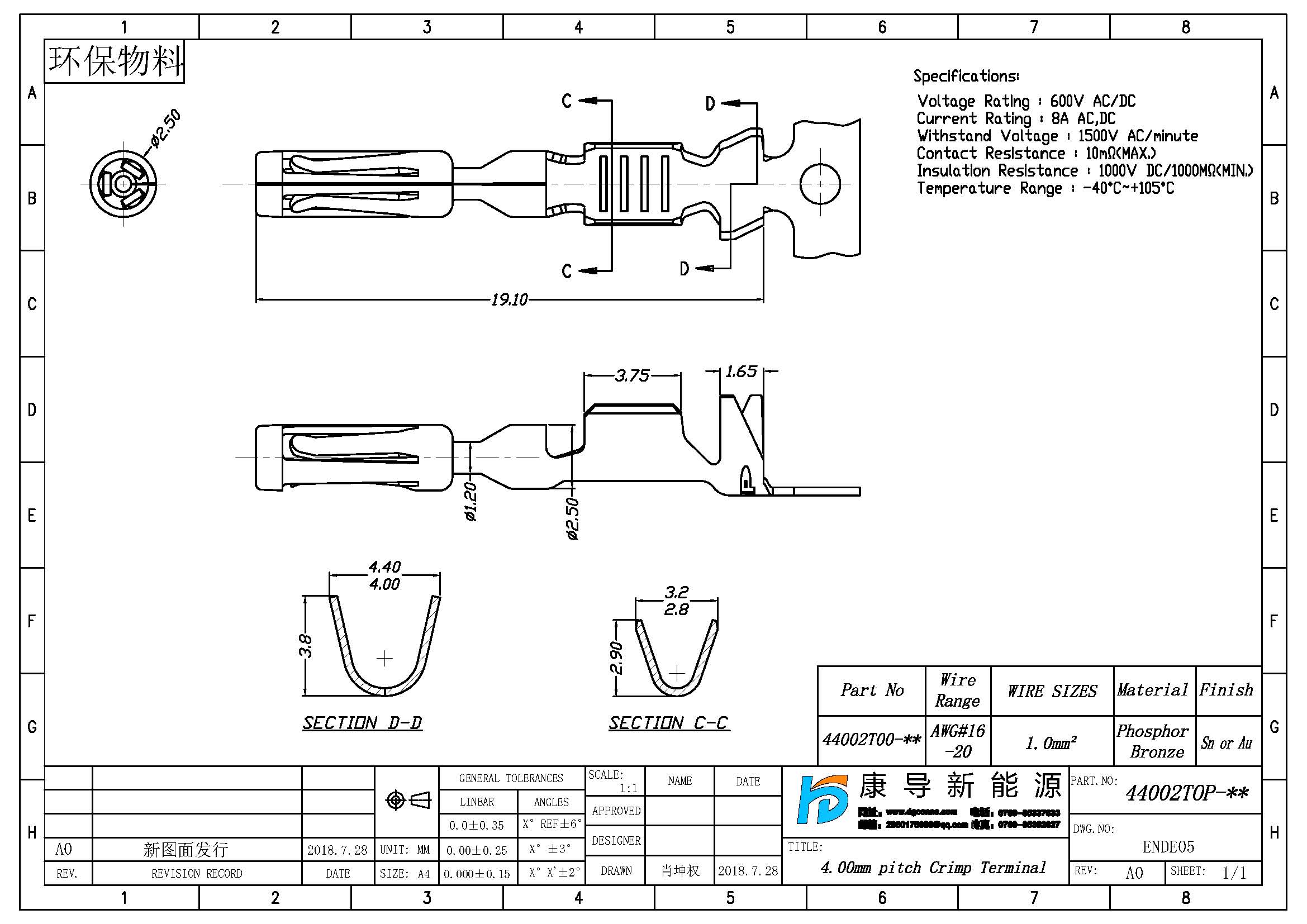

/js/htmledit/kindeditor/attached/20240823/20240823102005_96342.jpg

Spec:4.0mm PITCH TERMINAL
Wrie Range:AWG#20~#16
Insulation O.D.:1.0mm
Material:Phosphor Bronze
Plating:Au or Sn
Rated Current:8A AC DC
Rated Voltage:600V AC DC
Contact resistance:10mΩ Max
Insulation resistance:1000MΩ Min
Withstand Voltage:1500V AC/minute
Temperature Range:-40℃~+105℃
