Product Code:
44002W90Order(MOQ):
3000Product Specifications:
0.157 90°Dual WAFER DIP TYPEProduct Origin:
Xiamen City, China.Color:
Red, yellow, blue, green, brown, black, white, greyShipping Port:
Xiamen port, China.Lead Time:
Within 7-10 working days as soon as we received the deposit./js/htmledit/kindeditor/attached/20240823/20240823081802_75862.jpg

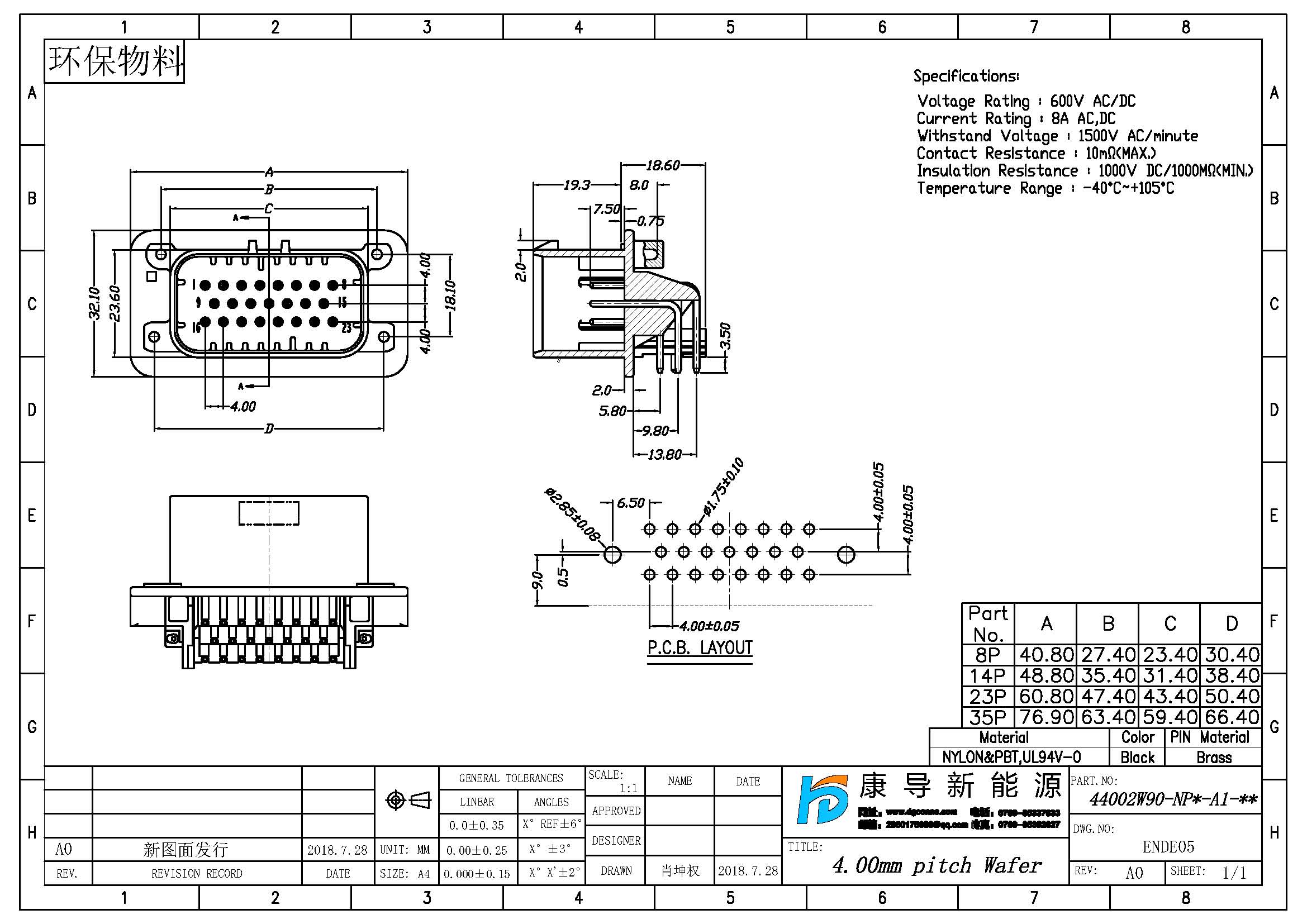

Spec:4.0mm PITCH 90° Dual WAFER DIP TYPE
Poles:8~35
Rated Current:8A AC DC
Rated Voltage:600V AC DC
Contact resistance:10mΩ Max
Insulation resistance:1000MΩ Min
Withstand Voltage:1500V AC/minute
Temperature Range:-40℃~+105℃
