4.00MM(.157")
44001

44001W00

  • Product Code:

    44001W00
  • Order(MOQ):

    3000
  • Product Specifications:

    0.157 180° Dual WAFER DIP TYPE
  • Product Origin:

    Xiamen City, China.
  • Color:

    Red, yellow, blue, green, brown, black, white, grey
  • Shipping Port:

    Xiamen port, China.
  • Lead Time:

    Within 7-10 working days as soon as we received the deposit.

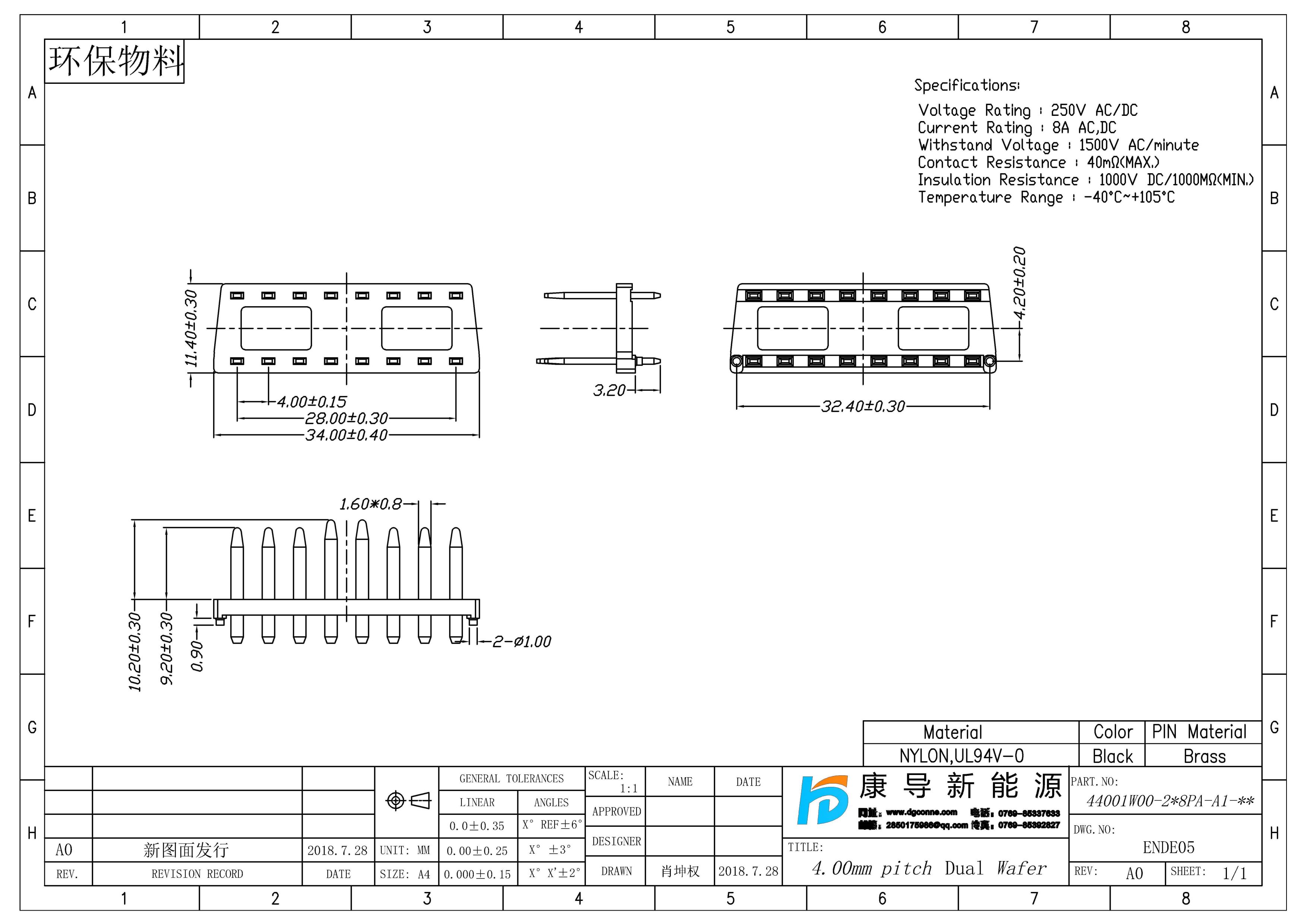

/js/htmledit/kindeditor/attached/20240823/20240823102201_19014.jpg

Spec:4.0mm PITCH 180° Dual WAFER DIP TYPE
Poles:2*8
Rated Voltage:250V AC DC
Rated Current:8A AC DC
Withstand Voltage:1500V AC/minute
Contact resistance:40mΩ Max
Insulation resistance:1000MΩ Min
Temperature Range:-40℃~+105℃
