Product Code:
43501TOPOrder(MOQ):
3000Product Specifications:
0.138Product Origin:
Xiamen City, China.Color:
Red, yellow, blue, green, brown, black, white, greyShipping Port:
Xiamen port, China.Lead Time:
Within 7-10 working days as soon as we received the deposit./js/htmledit/kindeditor/attached/20240826/20240826082603_58800.jpg

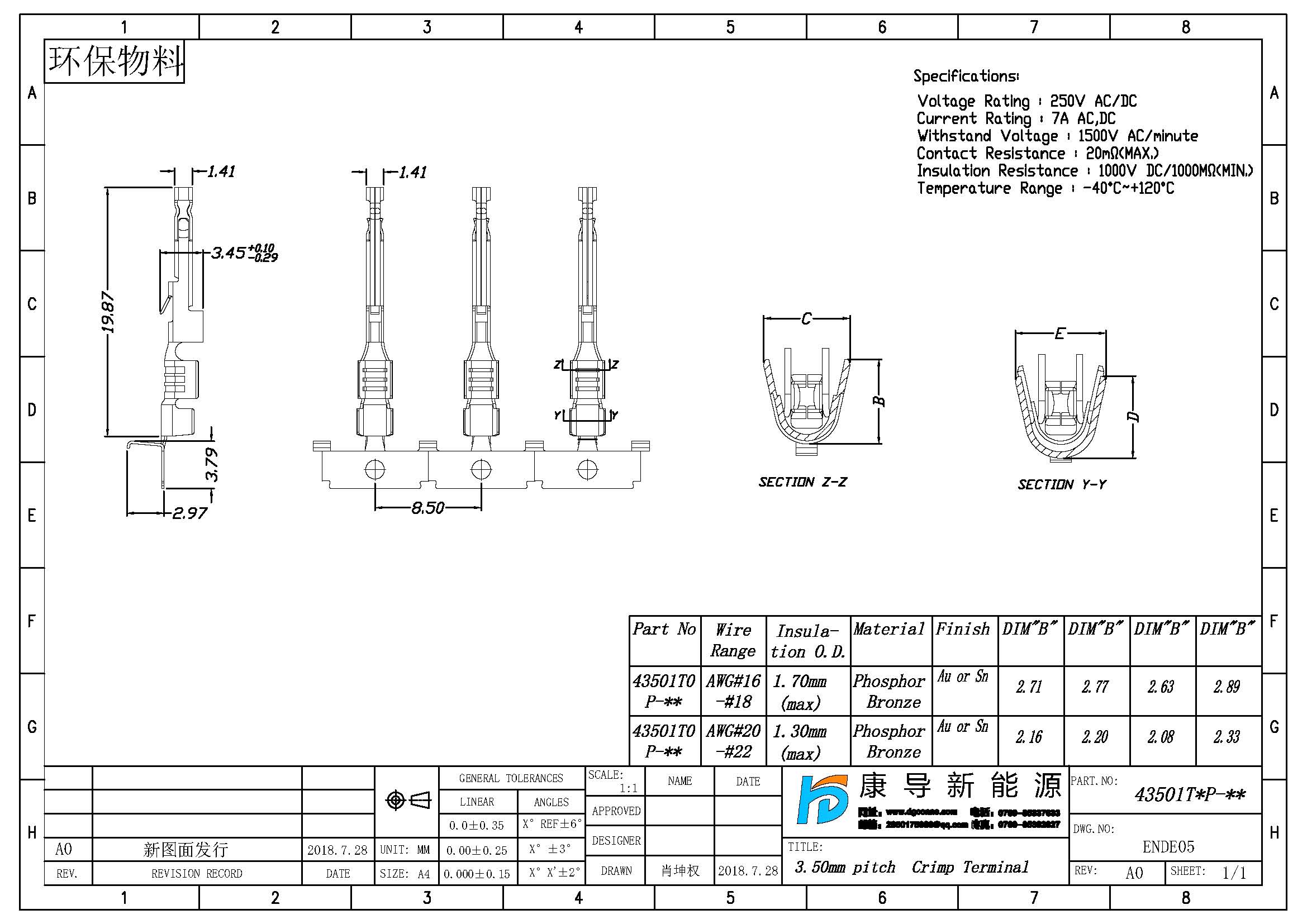

Spec:3.5mm PITCH TERMINAL
Wrie Range:AWG#20~#22 AWG#16~#18
Insulation O.D.:1.3mm 1.7mm
Material:Phosphor Bronze
Plating:Au or Sn
Rated Current:7A AC DC
Rated Voltage:250V AC DC
Contact resistance:20mΩ Max
Insulation resistance:1000MΩ Min
Withstand Voltage:1000V AC/minute
Temperature Range:-40℃~+120℃
