3.50MM(.138")
33501-W

43501W90

  • Product Code:

    43501W90
  • Order(MOQ):

    3000
  • Product Specifications:

    0.138 90° SINGLE WAFER
  • Product Origin:

    Xiamen City, China.
  • Color:

    Red, yellow, blue, green, brown, black, white, grey
  • Shipping Port:

    Xiamen port, China.
  • Lead Time:

    Within 7-10 working days as soon as we received the deposit.

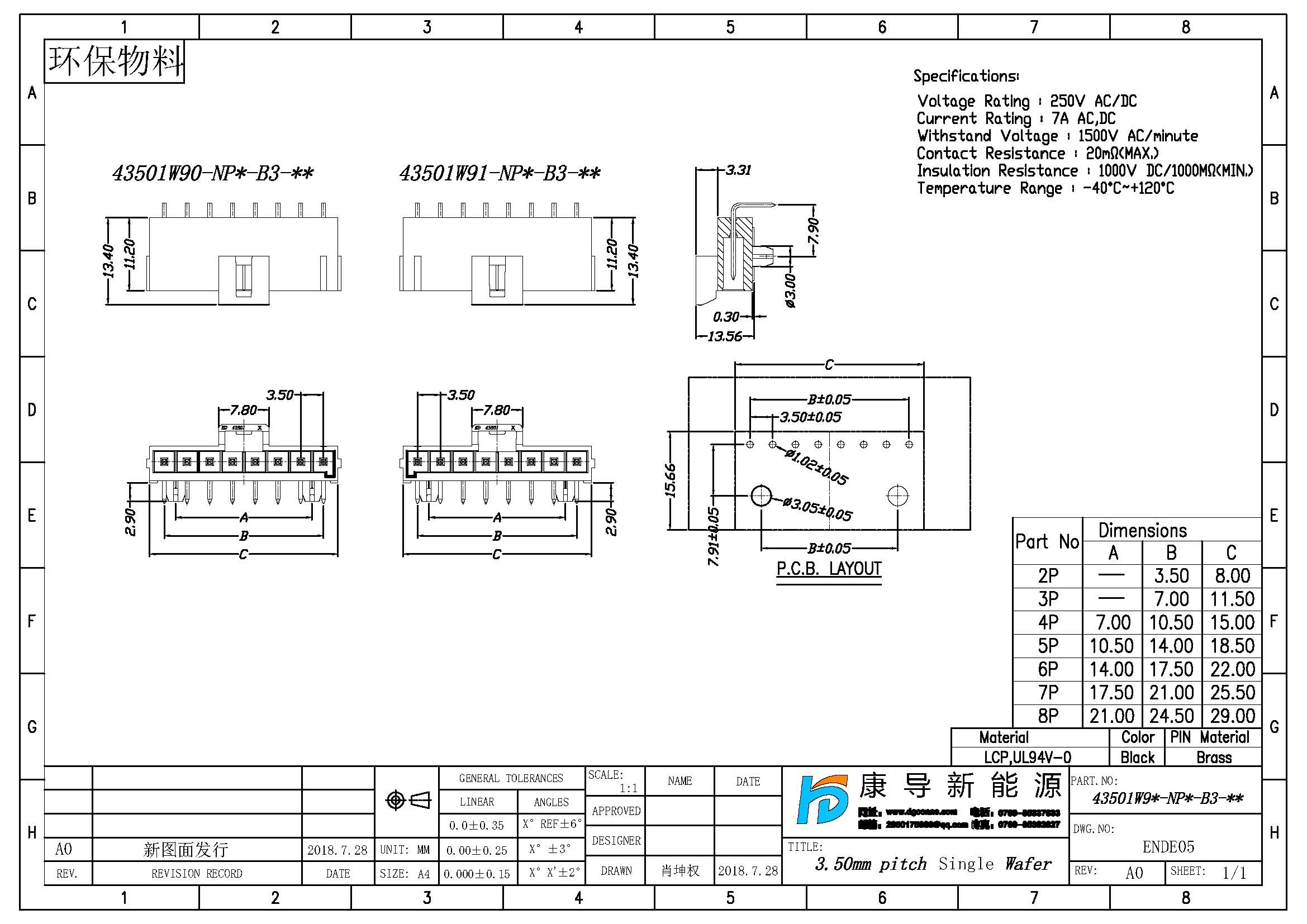

/js/htmledit/kindeditor/attached/20240826/20240826081457_69236.jpg

Spec:3.5mm PITCH 90° SINGLE WAFER
Poles:1*2~1*8
Rated Voltage:250V AC DC
Rated Current:7A AC DC
Withstand Voltage:1500V AC/minute
Contact resistance:20mΩ Max
Insulation resistance:1000MΩ Min
Temperature Range:-40℃~+120℃
