3.50MM(.138")
33501

43501TOP

  • Product Code:

    43501TOP
  • Order(MOQ):

    3000
  • Product Specifications:

    0.138"amphenol connector
  • Product Origin:

    Xiamen City, China.
  • Color:

    Red, yellow, blue, green, brown, black, white, grey
  • Shipping Port:

    Xiamen port, China.
  • Lead Time:

    Within 7-10 working days as soon as we received the deposit.

/js/htmledit/kindeditor/attached/20240823/20240823165243_15768.jpg

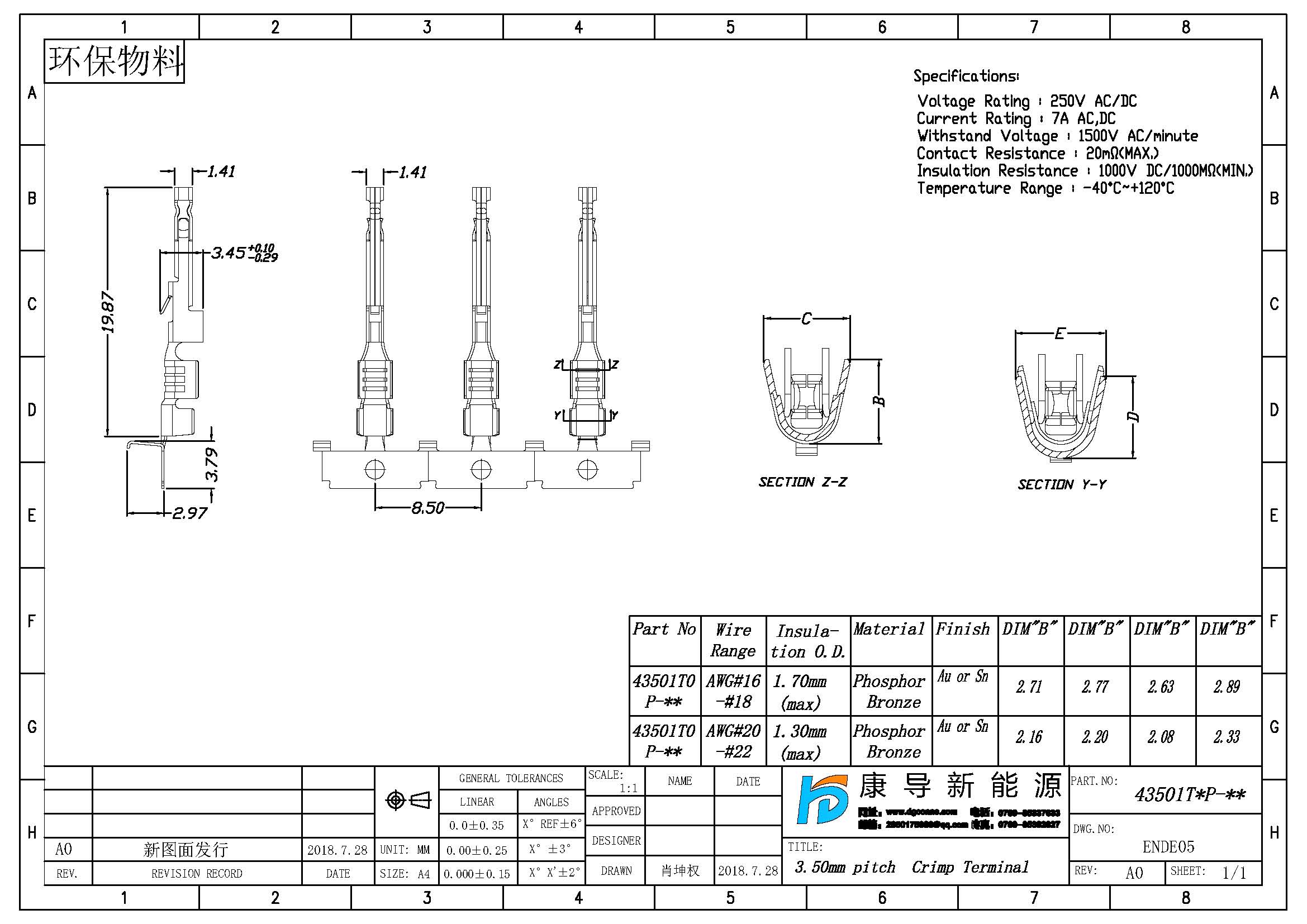

Spec:3.5mm PITCH TERMINAL
Wrie Range:AWG#16~#18 AWG#20~#22
Insulation O.D.:1.3mm 1.7mm
Material:Phosphor Bronze
Plating:Au or Sn
Rated Current:7A AC DC
Rated Voltage:250V AC DC
Contact resistance:20mΩ Max
Insulation resistance:1000MΩ Min
Withstand Voltage:1500V AC/minute
Temperature Range:-40℃~+120℃
