3.50MM(.138")
Home /

Automobile Connector

 /

3.50MM(.138")

 /

43501-W

43501-W

43501W90

PIN:2*2-2*8P H:13.56MM

  • Product Code:

    43501W90

  • Order(MOQ):

    3000

  • Product Specifications:

    0.138

  • Product Origin:

    Xiamen City, China.

  • Color:

    Red, yellow, blue, green, brown, black, white, grey

  • Shipping Port:

    Xiamen port, China.

  • Lead Time:

    Within 7-10 working days as soon as we received the deposit.
Inquire Now

/js/htmledit/kindeditor/attached/20240826/20240826085642_10416.jpg

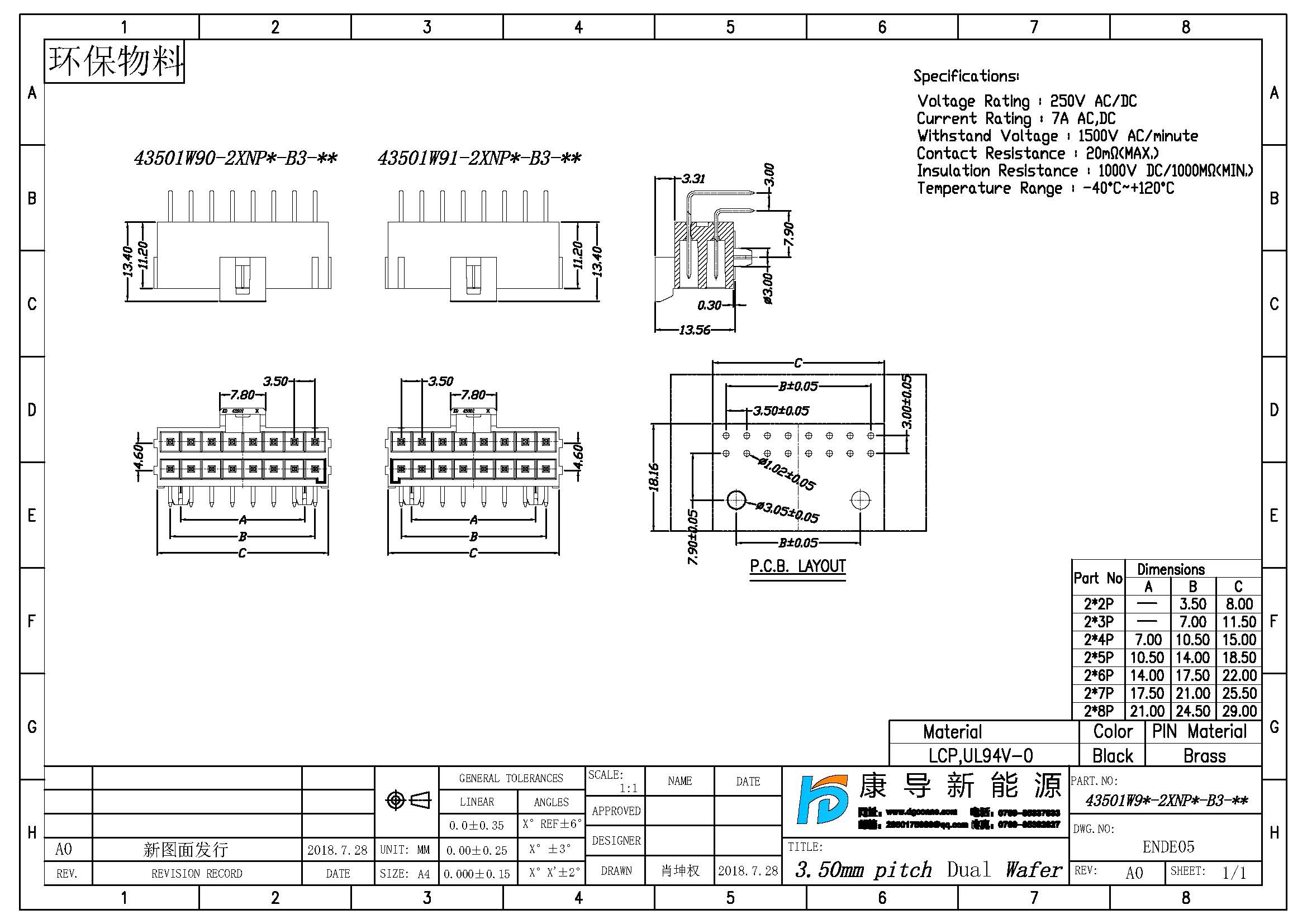

Spec：3.5mm PITCH 90° Dual WAFER DIP TYPE
Poles：2*5~2*20
Rated Current：7A AC DC
Rated Voltage：250V AC DC
Contact resistance：20mΩ Max
Insulation resistance：1000MΩ Min
Withstand Voltage：1000V AC/minute
Temperature Range：-40℃~+120℃
