3.50MM(.138")
43501-W

43501W01

  • Product Code:

    43501W01
  • Order(MOQ):

    3000
  • Product Specifications:

    0.138"180° Dual WAFER DIP TYPE Solder joint
  • Product Origin:

    Xiamen City, China.
  • Color:

    Red, yellow, blue, green, brown, black, white, grey
  • Shipping Port:

    Xiamen port, China.
  • Lead Time:

    Within 7-10 working days as soon as we received the deposit.

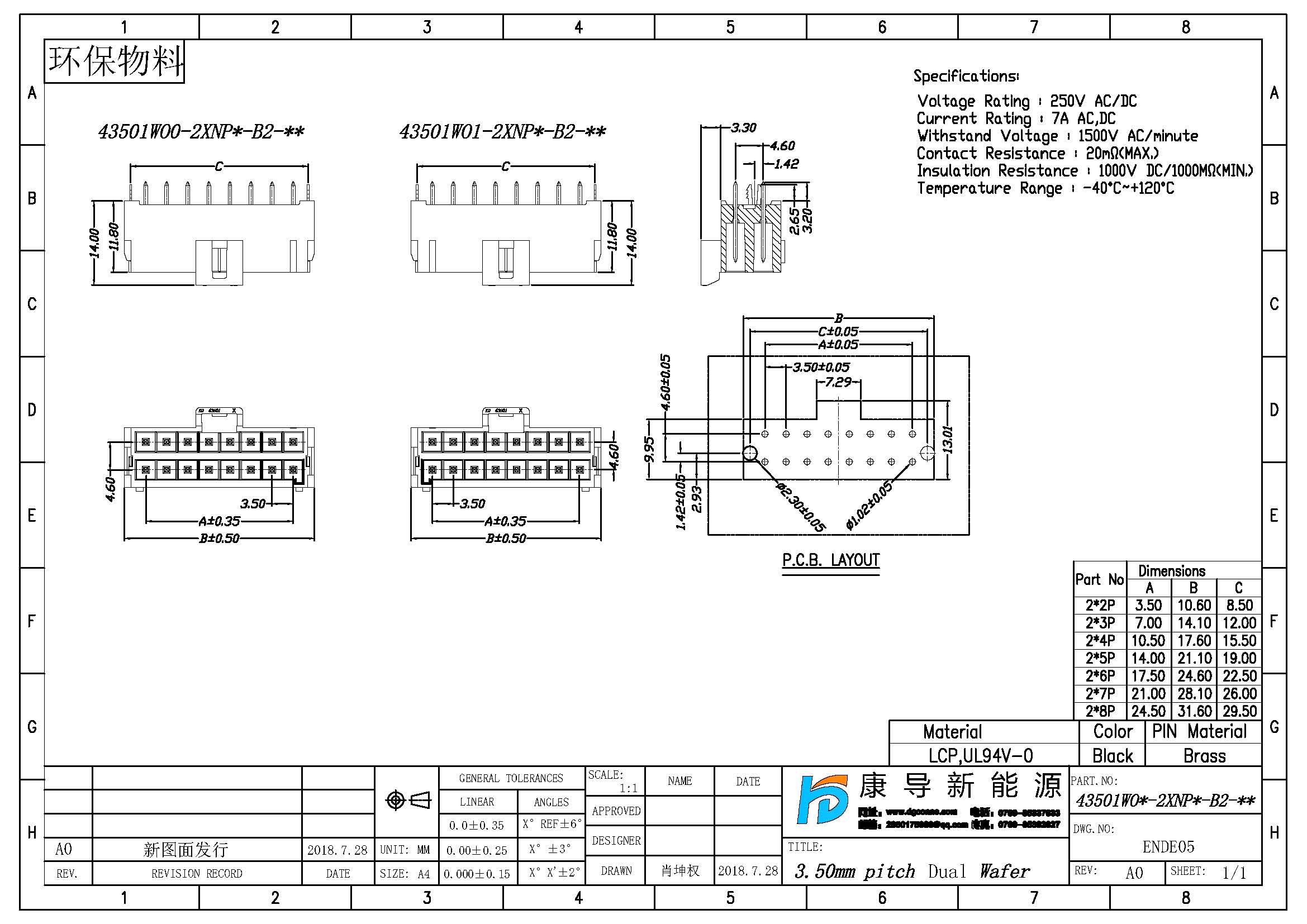

/js/htmledit/kindeditor/attached/20240826/20240826085301_88475.jpg

Spec:3.5mm PITCH 180° Dual WAFER DIP TYPE
Poles:2*2~2*8
Rated Current:7A AC DC
Rated Voltage:250V AC DC
Contact resistance:20mΩ Max
Insulation resistance:1000MΩ Min
Withstand Voltage:1000V AC/minute
Temperature Range:-40℃~+120℃
