Product Code:
43501W00Order(MOQ):
3000Product Specifications:
0.138"180°Dual WAFER DIP TYPEProduct Origin:
Xiamen City, China.Color:
Red, yellow, blue, green, brown, black, white, greyShipping Port:
Xiamen port, China.Lead Time:

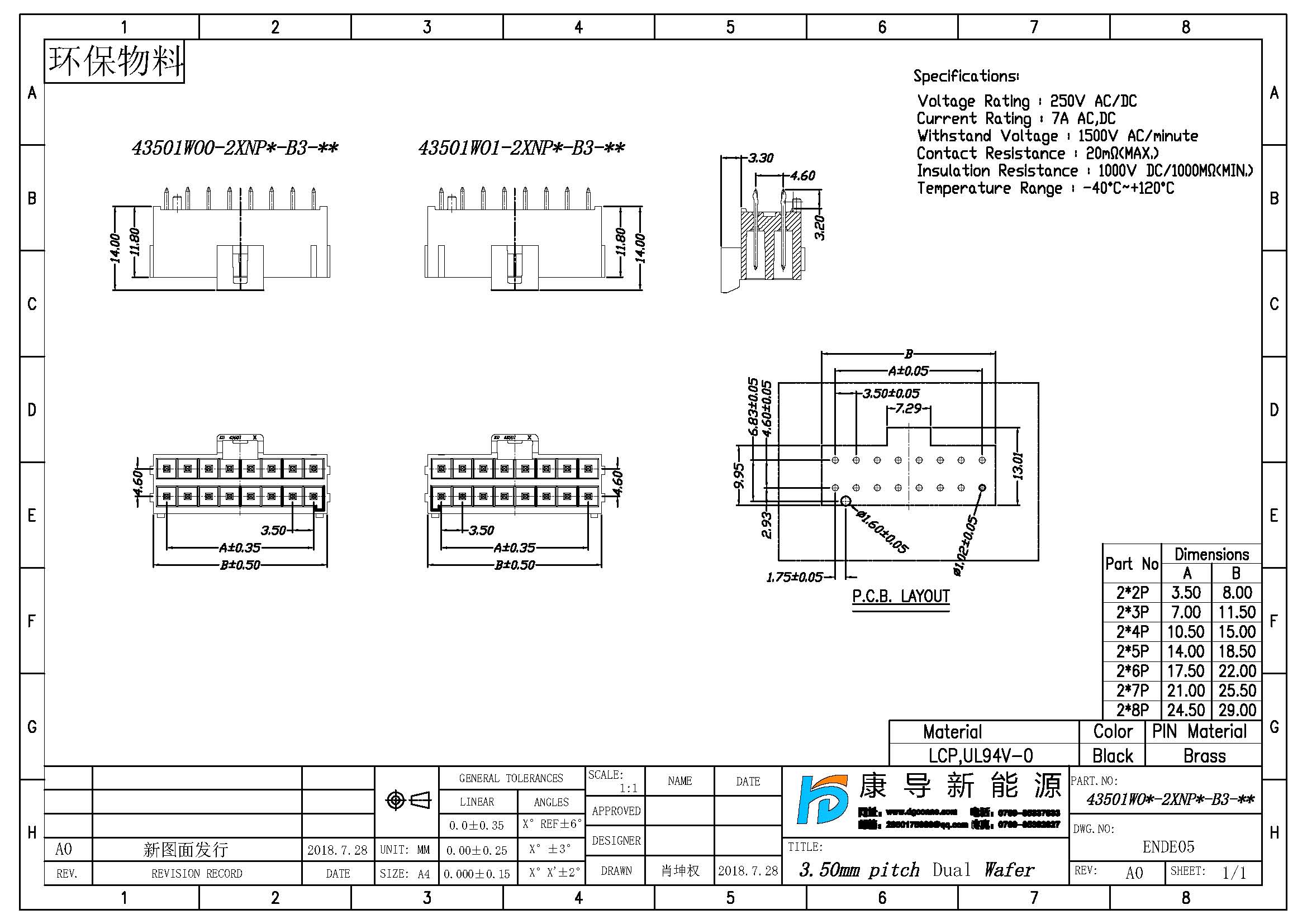

Within 7-10 working days as soon as we received the deposit./js/htmledit/kindeditor/attached/20240826/20240826085223_83779.jpg
Spec:3.5mm PITCH 180° Dual WAFER DIP TYPE
Poles:2*2~2*8
Rated Current:7A AC DC
Rated Voltage:250V AC DC
Contact resistance:20mΩ Max
Insulation resistance:1000MΩ Min
Withstand Voltage:1000V AC/minute
Temperature Range:-40℃~+120℃
