1.80MM(.071")
41801

41801W90

  • Product Code:

    41801W90
  • Order(MOQ):

    3000
  • Product Specifications:

    0.071"90°SINGLE WAFER SMT TYPE
  • Product Origin:

    Xiamen City, China.
  • Color:

    Red, yellow, blue, green, brown, black, white, grey
  • Shipping Port:

    Xiamen port, China.
  • Lead Time:

    Within 7-10 working days as soon as we received the deposit.

/js/htmledit/kindeditor/attached/20240827/20240827141553_66448.jpg

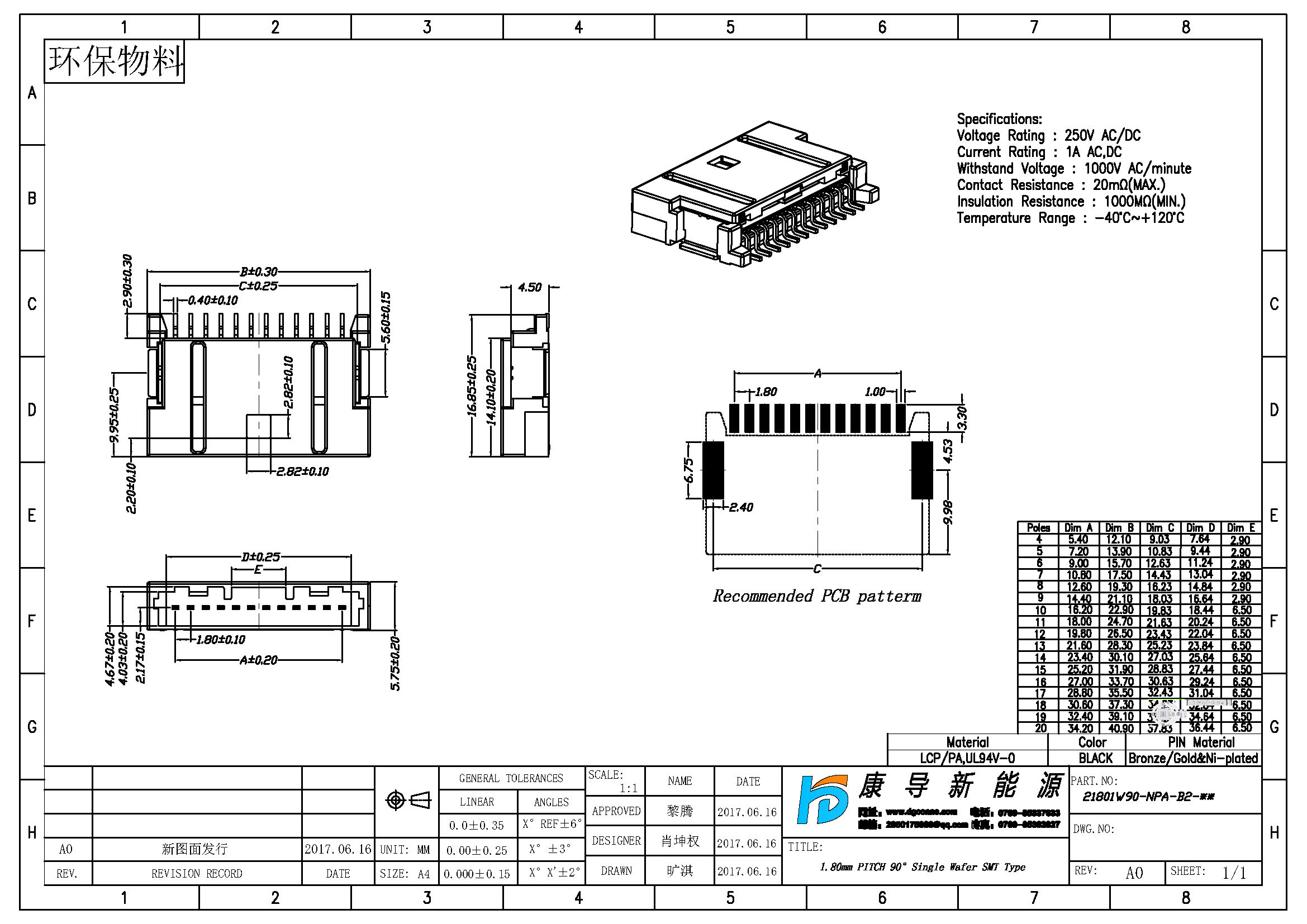

Spec:1.8mm PITCH 90° SINGLE WAFER SMT TYPE
Poles:4-20
Rated Voltage:250V AC DC
Rated Current:1A AC DC
Withstand Voltage:1000V AC/minute
Contact resistance:20mΩ Max
Insulation resistance:1000MΩ Min
Temperature Range:-40℃~+120℃
