Product Code:
KDBH-0022Order(MOQ):
3000Product Specifications:
0.079"box header,DIPProduct Origin:
Xiamen City, China.Color:
Red, yellow, blue, green, brown, black, white, greyShipping Port:
Xiamen port, China.Lead Time:

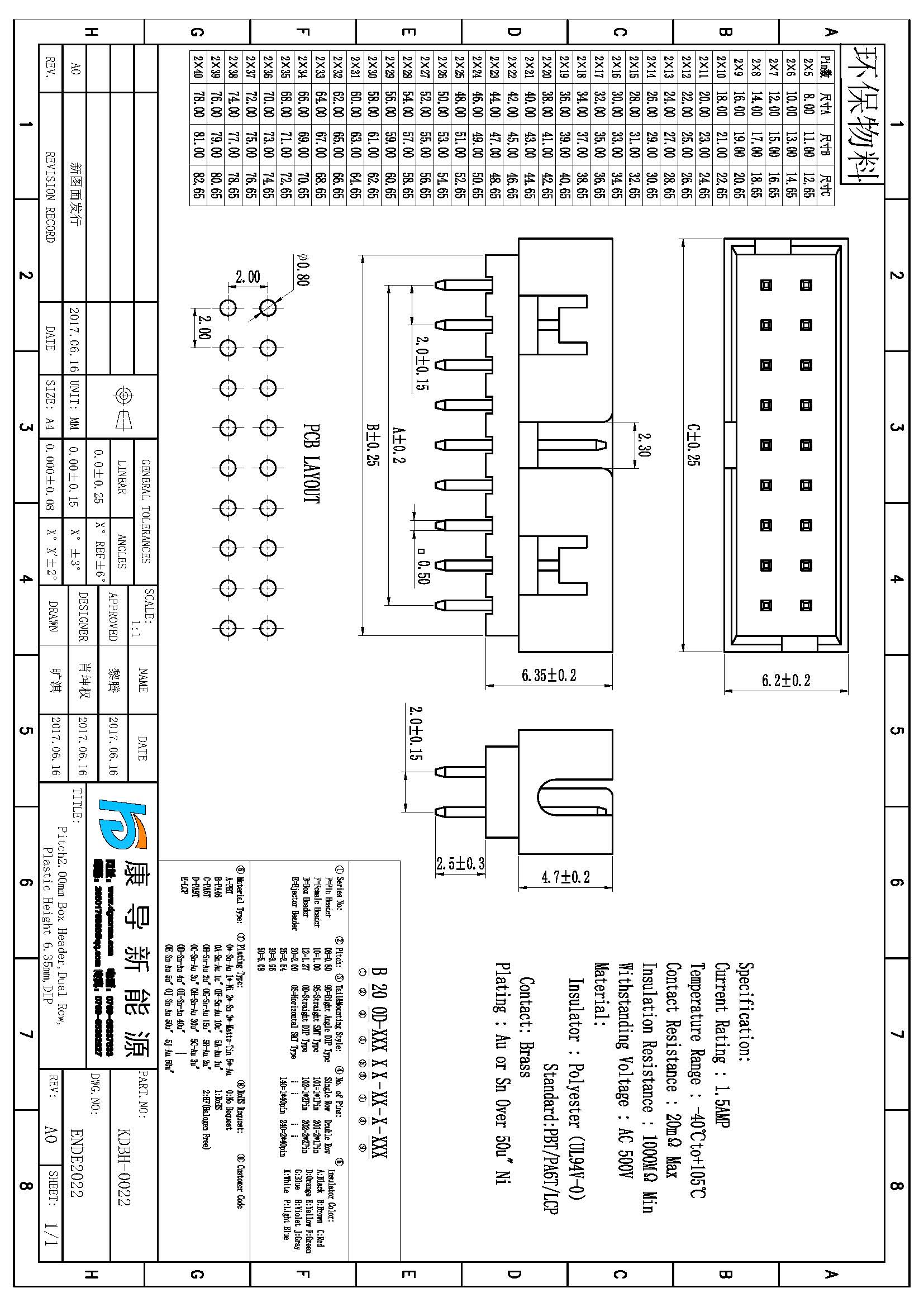

Within 7-10 working days as soon as we received the deposit./js/htmledit/kindeditor/attached/20240903/20240903185303_54519.jpg
Pitch:2.00MM
Type: DIP
Row: Dual
Pins:2*5~2*40
Plastics Height:6.35MM
Rated Voltage:250V AC DC
Rated Current:2A AC DC
Withstand Voltage:500V AC/minute
Contact resistance:20mΩ Max
Insulation resistance:1000MΩ Min
Temperature Range:-40℃~+105℃
