2.00MM(.079")
KDEH-0009

KDEH-0009

  • Product Code:

    KDEH-0009
  • Order(MOQ):

    3000
  • Product Specifications:

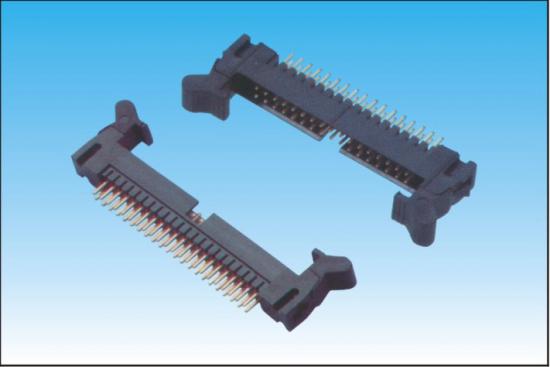

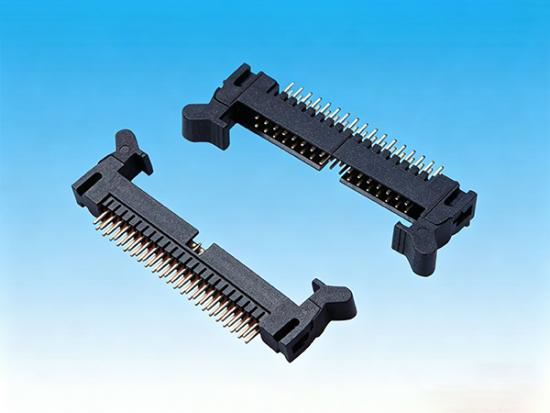

    0.079"Ejector Header, DIP
  • Product Origin:

    Xiamen City, China.
  • Color:

    Red, yellow, blue, green, brown, black, white, grey
  • Shipping Port:

    Xiamen port, China.
  • Lead Time:

    Within 7-10 working days as soon as we received the deposit.

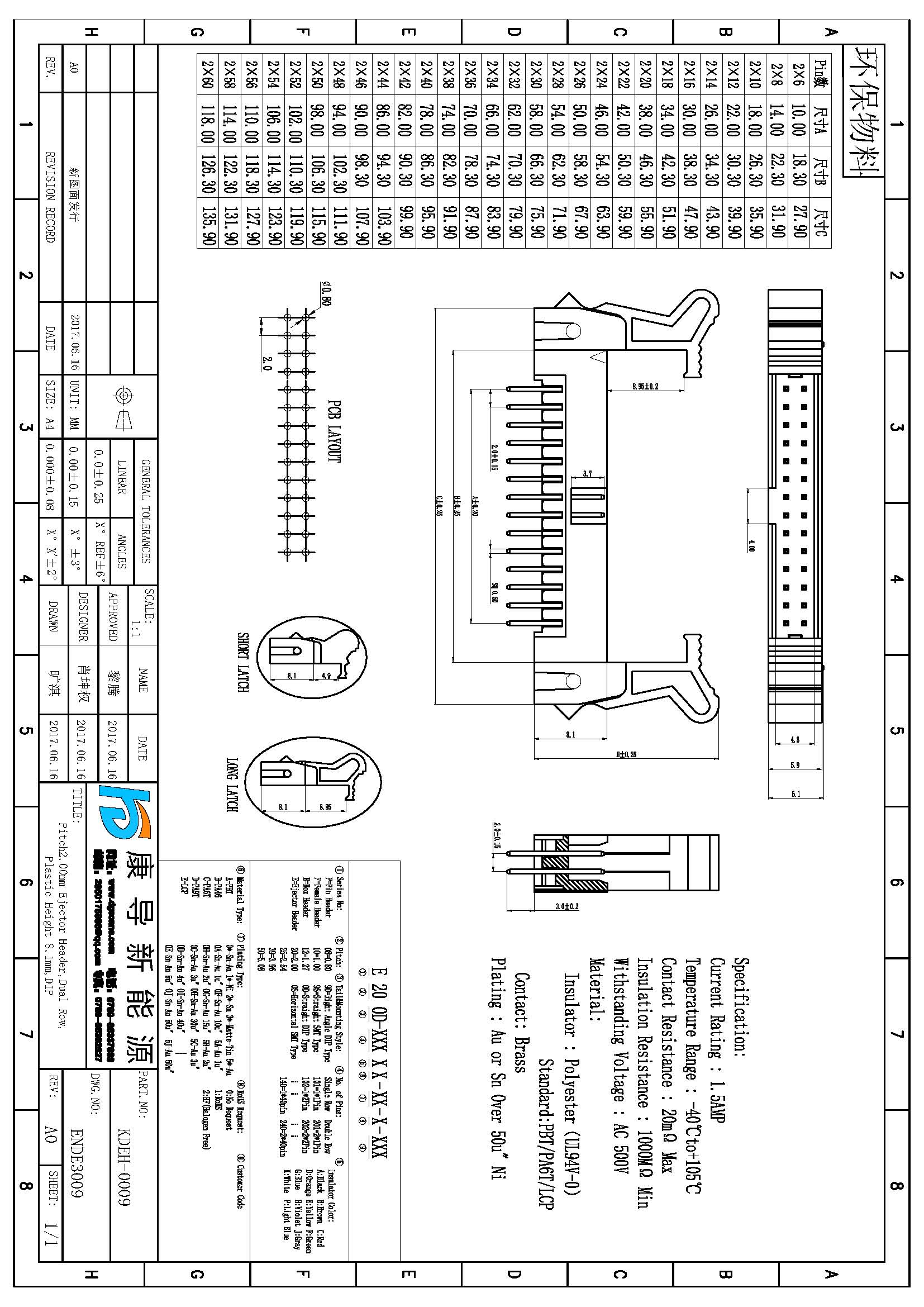

/js/htmledit/kindeditor/attached/20240903/20240903184328_24978.jpg

 Pitch:2.00MM
Type:  DIP
Row: Dual
Pins:2*6~2*60
Plastics Height:13.0/17.05MM
Rated Voltage:250V AC DC
Rated Current:2A AC DC
Withstand Voltage:500V AC/minute
Contact resistance:20mΩ Max
Insulation resistance:1000MΩ Min
Temperature Range:-40℃~+105℃
