Product Code:
23961AWGJOrder(MOQ):
3000Product Specifications:
0.156"90°WAFER DIP TYPE inflectionProduct Origin:
Xiamen City, China.Color:
Red, yellow, blue, green, brown, black, white, greyShipping Port:
Xiamen port, China.Lead Time:
Within 7-10 working days as soon as we received the deposit./js/htmledit/kindeditor/attached/20240905/20240905142319_39446.jpg

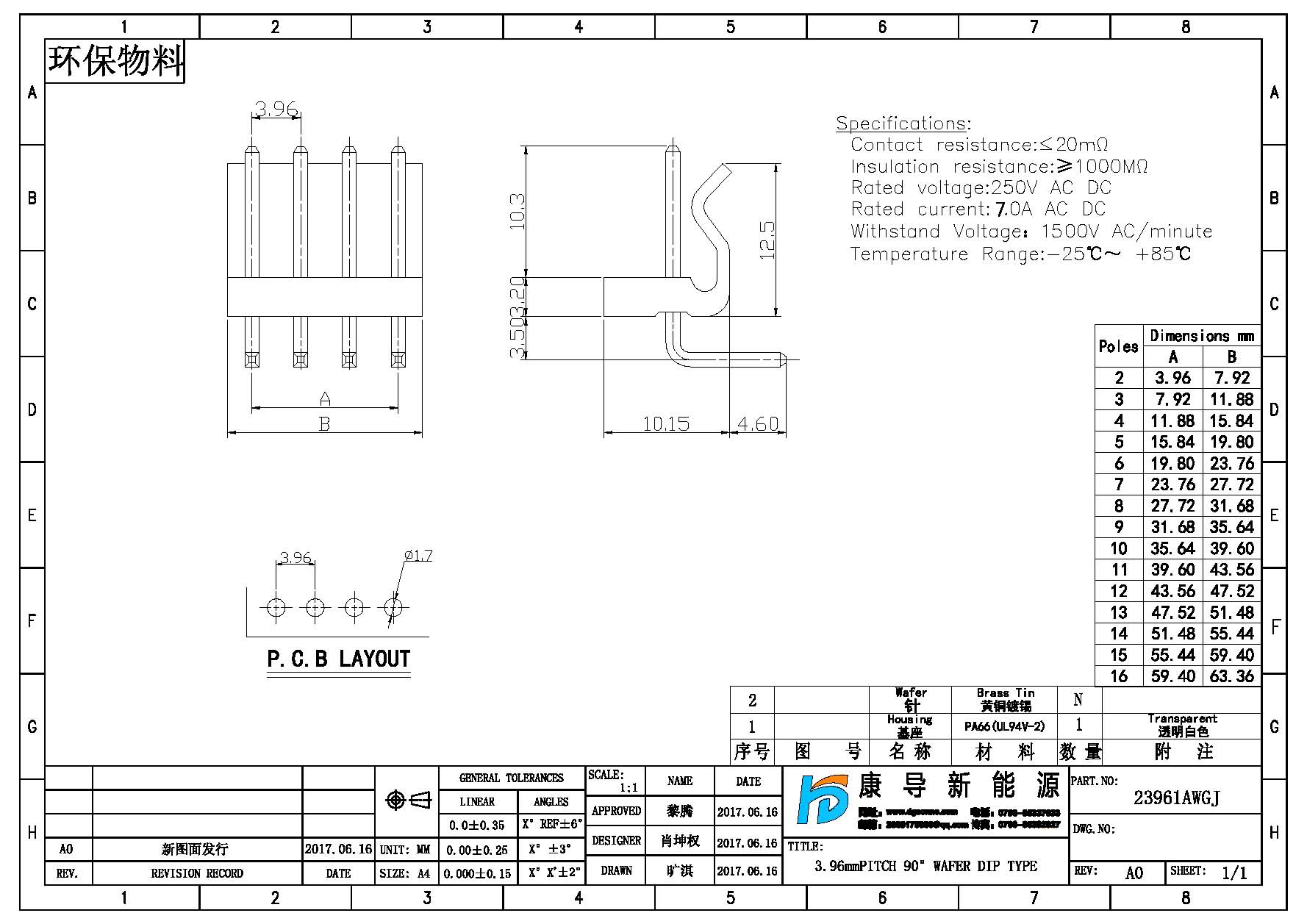

Spec:3.96mm PITCH 90° WAFER DIP TYPE
Poles:02-16
Contact resistance:20mΩ Max
Insulation resistance:1000MΩ Min
Rated Voltage:250V AC DC
Rated Current:7.0A AC DC
Withstand Voltage:1500V AC/minute
Temperature Range:-25℃~+85℃
