3.96MM(.156")
23962A

23962A

  • Product Code:

    23962A
  • Order(MOQ):

    3000
  • Product Specifications:

    0.156"180°WAFER DIP TYPE Vertical back
  • Product Origin:

    Xiamen City, China.
  • Color:

    Red, yellow, blue, green, brown, black, white, grey
  • Shipping Port:

    Xiamen port, China.
  • Lead Time:

    Within 7-10 working days as soon as we received the deposit.

/js/htmledit/kindeditor/attached/20240905/20240905093953_41792.jpg

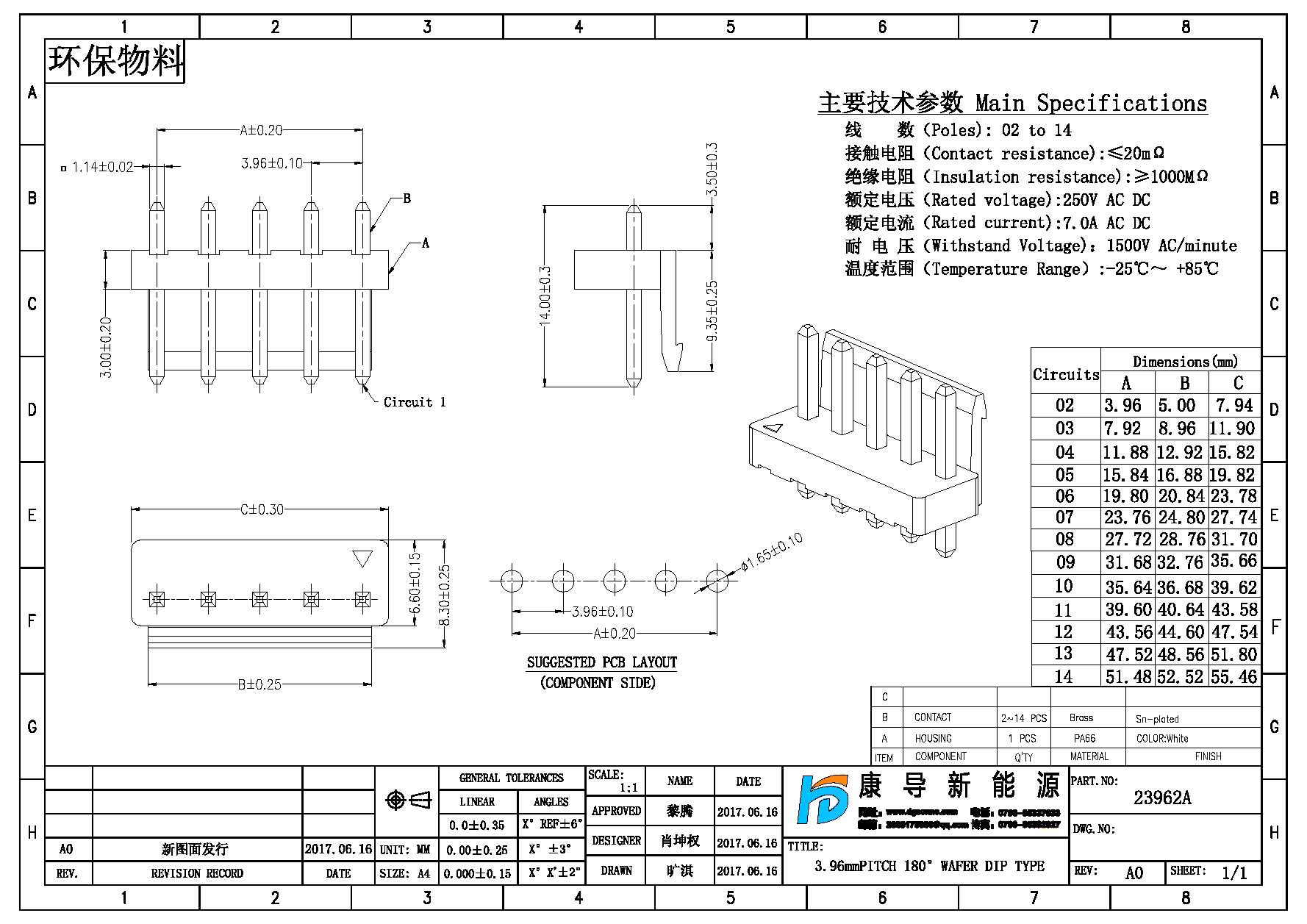

Spec:3.96mm PITCH 180° WAFER DIP TYPE
Poles:02-14
Contact resistance:20mΩ Max
Insulation resistance:1000MΩ Min
Rated Voltage:250V AC DC
Rated Current:7.0A AC DC
Withstand Voltage:1500V AC/minute
Temperature Range:-25℃~+85℃
