3.96MM(.156")
2396T

23962T

  • Phosphor bronze Plating:Sn

  • Product Code:

    23962T
  • Order(MOQ):

    3000
  • Product Specifications:

    0.156"amphenol connector
  • Product Origin:

    Xiamen City, China.
  • Color:

    Red, yellow, blue, green, brown, black, white, grey
  • Shipping Port:

    Xiamen port, China.
  • Lead Time:

    Within 7-10 working days as soon as we received the deposit.

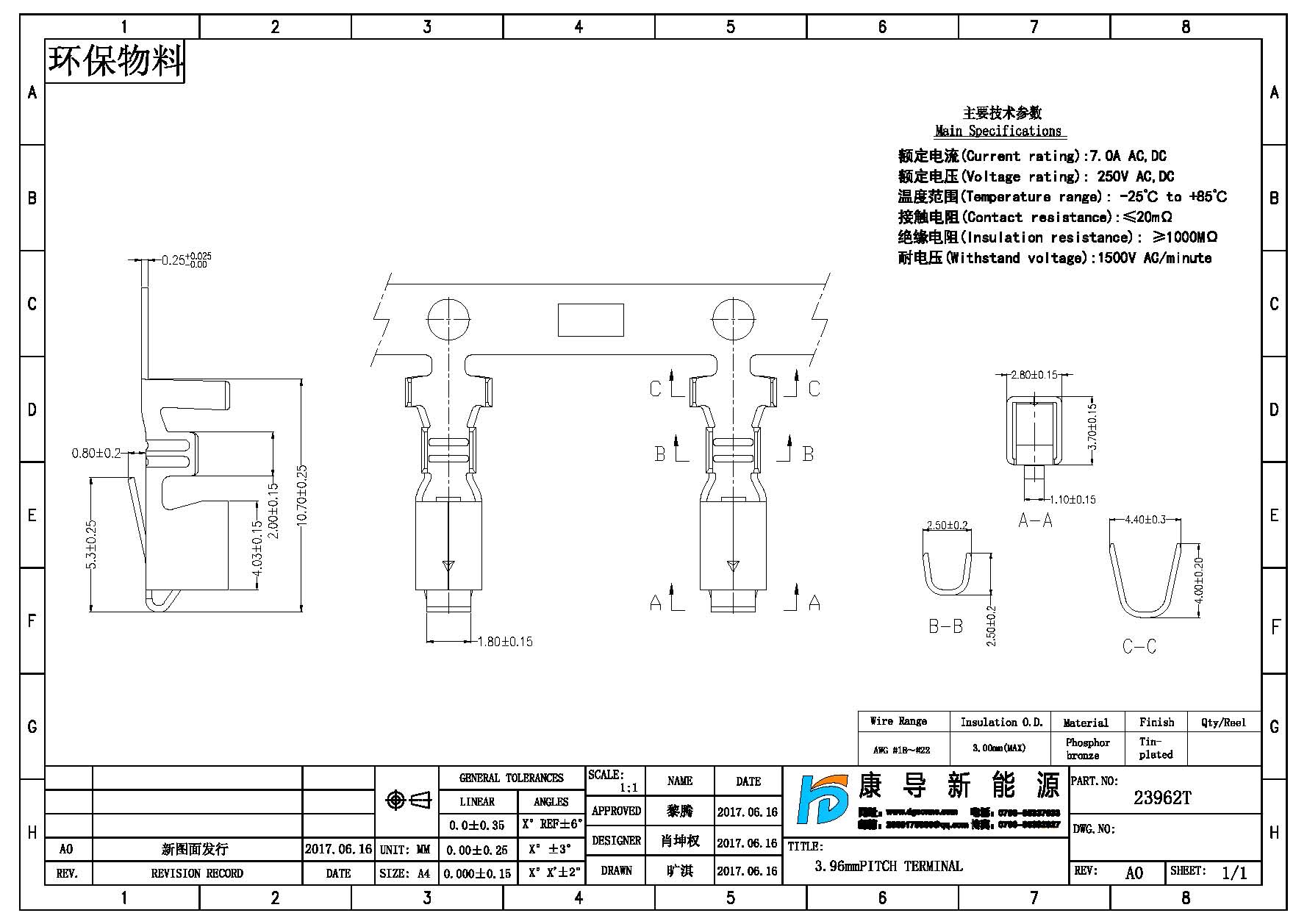

/js/htmledit/kindeditor/attached/20240905/20240905091520_63913.jpg

Spec:3.96mm PITCH TERMINAL
Wrie Range:AWG #18~#22
Insulation O.D.:3.00mm Max
Material:Phosphor bronze
Plating:Sn
Rated Current:7.0A AC DC
Rated Voltage:250V AC DC
Contact resistance:20mΩ Max
Insulation resistance:1000MΩ Min
Withstand Voltage:1500V AC/minute
Temperature Range:-25℃~+85℃
