Product Code:
23961AOrder(MOQ):
3000Product Specifications:
0.156"180° WAFER DIP TYPE Curved backProduct Origin:
Xiamen City, China.Color:
Red, yellow, blue, green, brown, black, white, greyShipping Port:
Xiamen port, China.Lead Time:

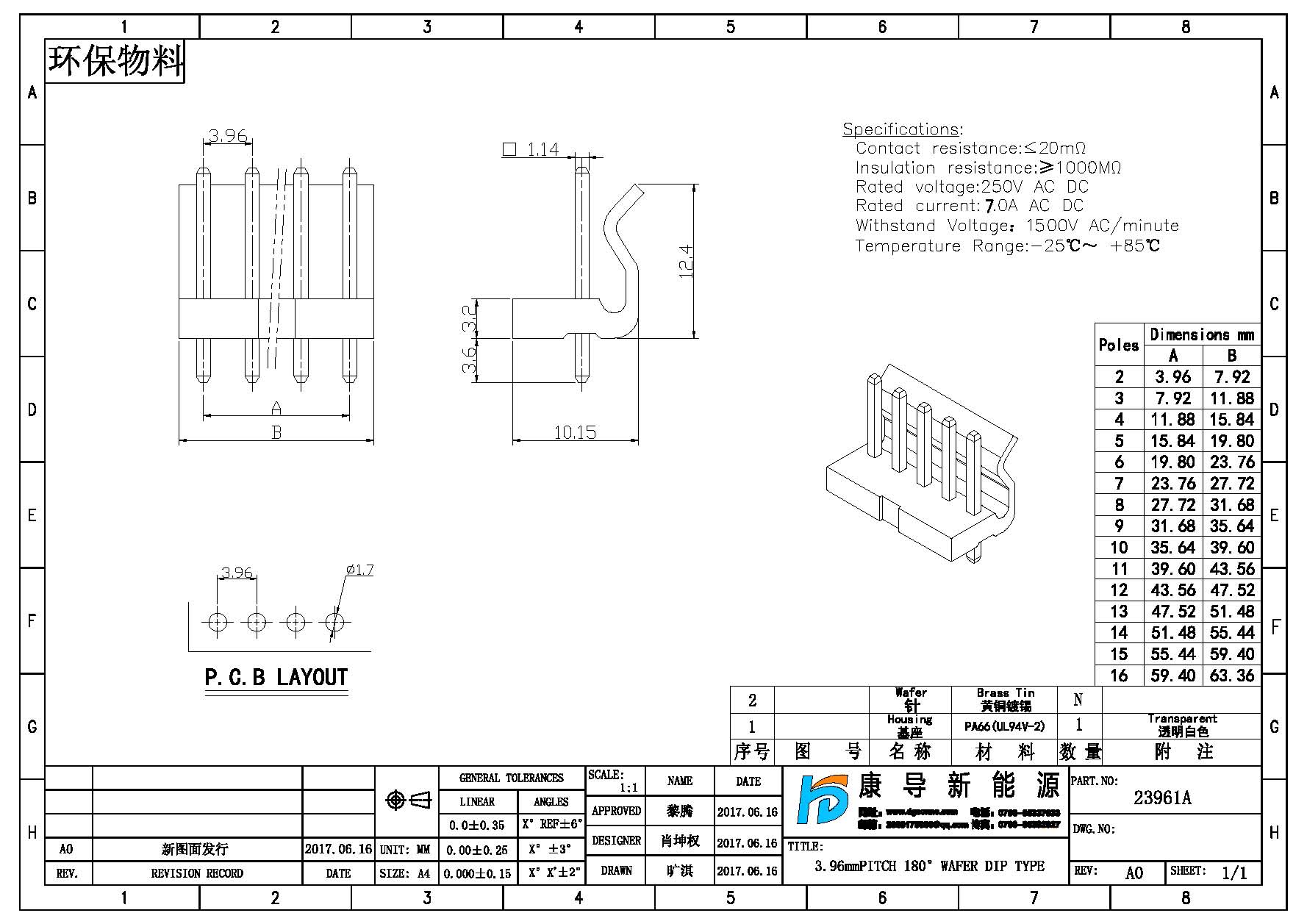

Within 7-10 working days as soon as we received the deposit./js/htmledit/kindeditor/attached/20240905/20240905140027_18440.jpg
Spec:3.96mm PITCH 180° WAFER DIP TYPE
Poles:02-16
Contact resistance:20mΩ Max
Insulation resistance:1000MΩ Min
Rated Voltage:250V AC DC
Rated Current:7.0A AC DC
Withstand Voltage:1500V AC/minute
Temperature Range:-25℃~+85℃
