Product Code:
KDPH-0119Order(MOQ):
3000Product Specifications:

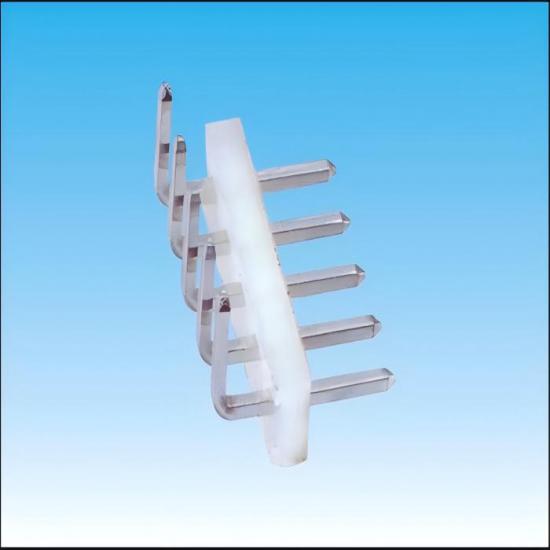

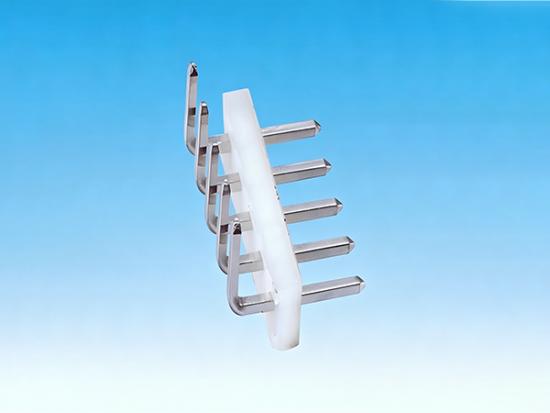

0.156"Pin Header,Single Plastic,Single Row,Right Angle TypeProduct Origin:
Xiamen City, China.Color:
Red, yellow, blue, green, brown, black, white, greyShipping Port:
Xiamen port, China.Lead Time:

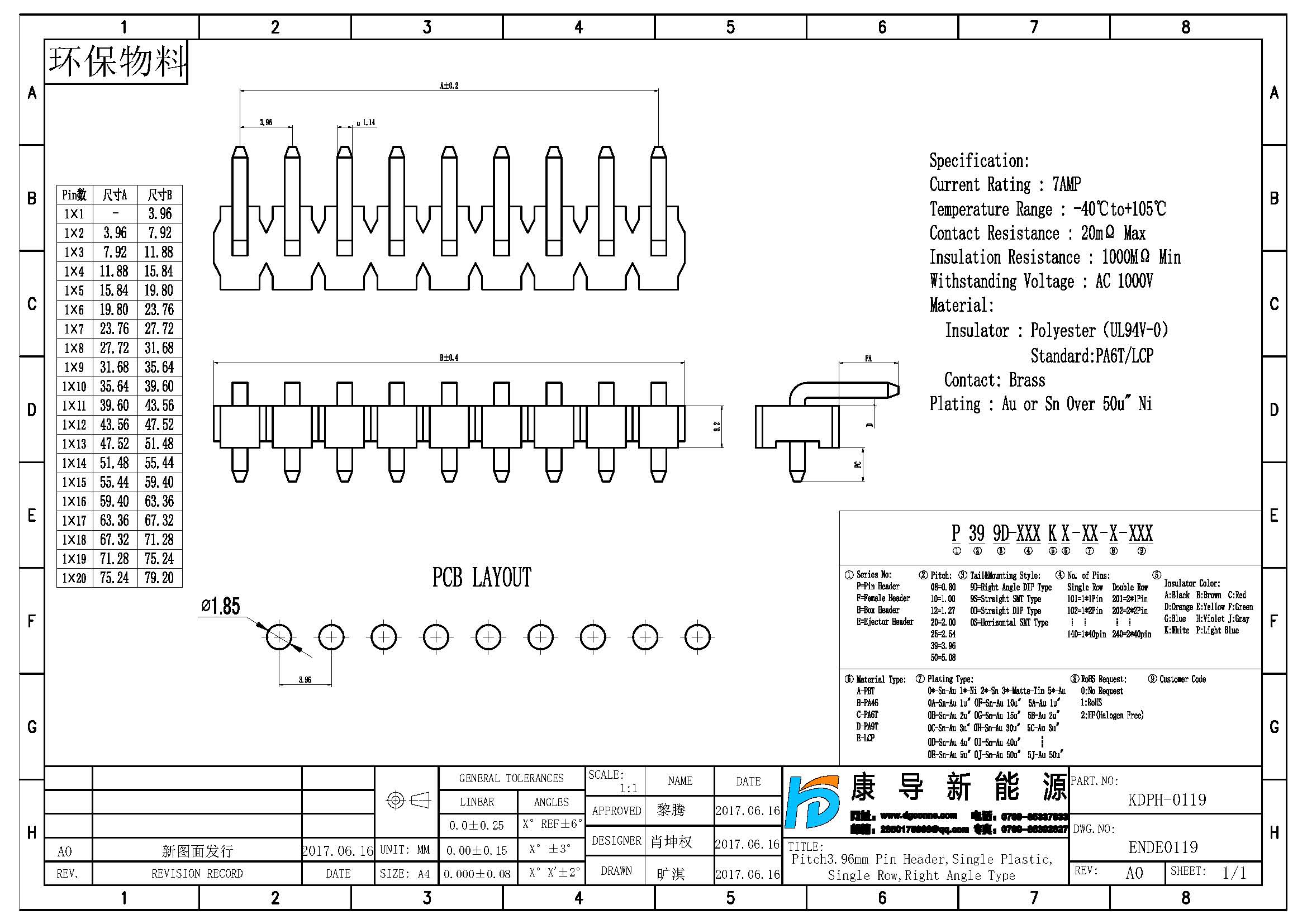

Within 7-10 working days as soon as we received the deposit./js/htmledit/kindeditor/attached/20240827/20240827143026_52638.jpg
Spec:Pitch3.96mm Pin Header,Single Plastic,Single Row,Right Angle Type
Pins:1*1-1*20
Plastics Height:3.2MM
Rated Voltage:250V AC DC
Rated Current:7A AC DC
Contact resistance:20mΩ Max
Insulation resistance:1000MΩ Min
Withstand Voltage:1000V AC/minute
Temperature Range:-40℃~+105℃
