Product Code:
KDPH-0089Order(MOQ):
3000Product Specifications:

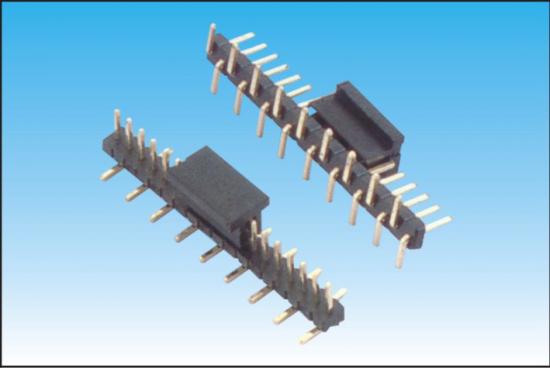

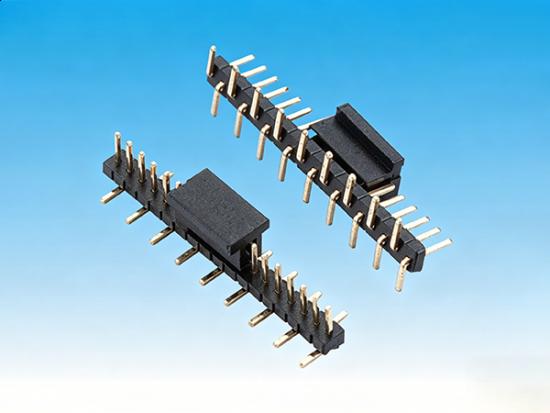

0.100" Pin Header,Single Plastic,Single Row,SMT TypeProduct Origin:
Xiamen City, China.Color:
Red, yellow, blue, green, brown, black, white, greyShipping Port:
Xiamen port, China.Lead Time:
Within 7-10 working days as soon as we received the deposit./js/htmledit/kindeditor/attached/20240828/20240828085449_98474.jpg

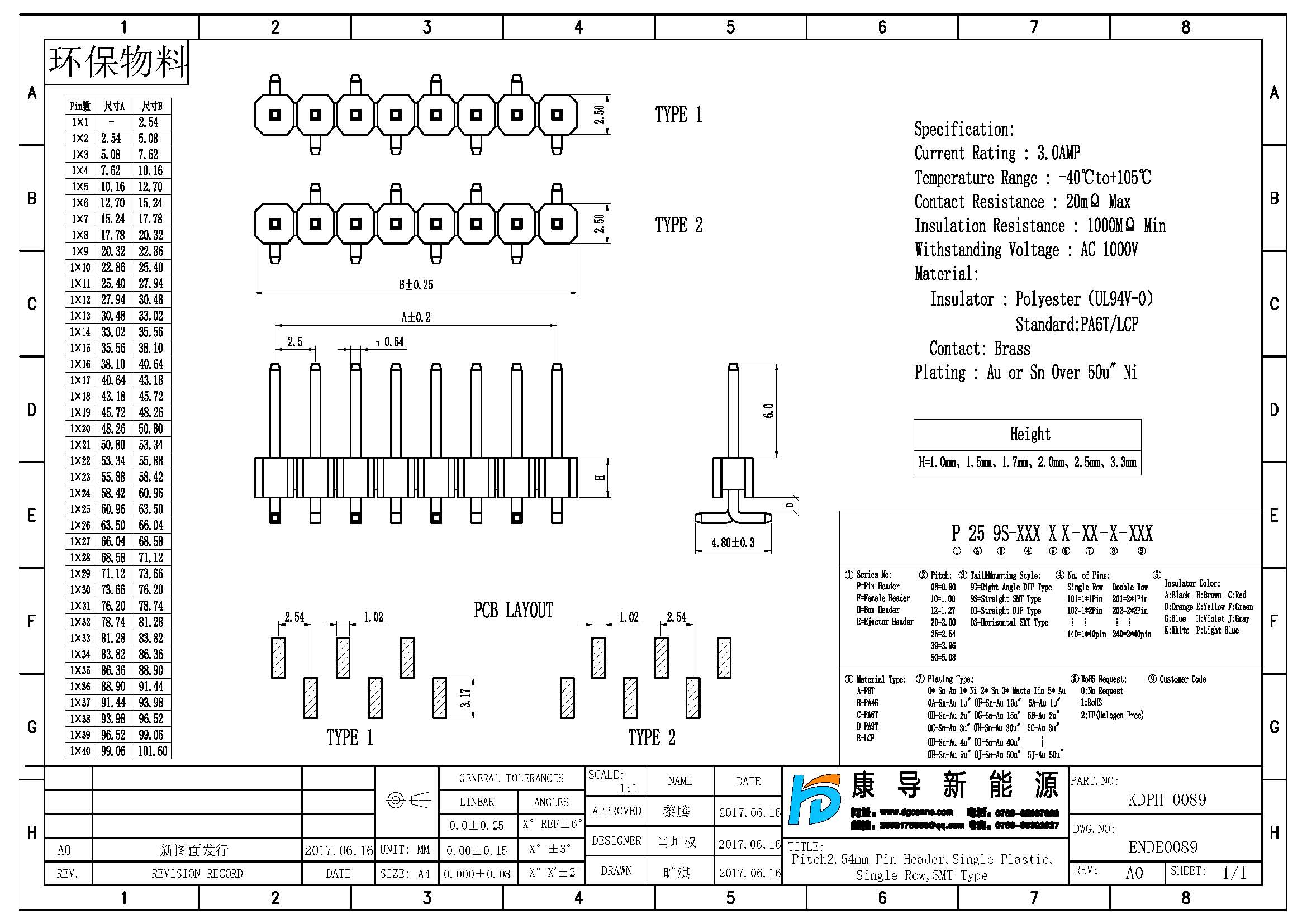

Spec:Pitch2.54mm Pin Header,Single Plastic,Single Row,SMT Type
Pins:1*2-1*41
Plastics Height:1.0/1.5/1.7/2.0/2.5/3.3MM
Rated Voltage:250V AC DC
Rated Current:3A AC DC
Contact resistance:20mΩ Max
Insulation resistance:1000MΩ Min
Withstand Voltage:1000V AC/minute
Temperature Range:-40℃~+105℃
