Product Code:
KDPH-0109Order(MOQ):
3000Product Specifications:

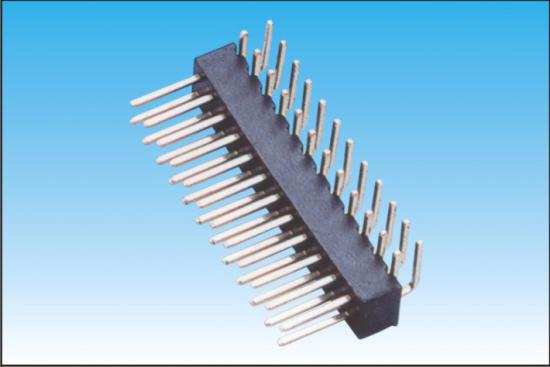

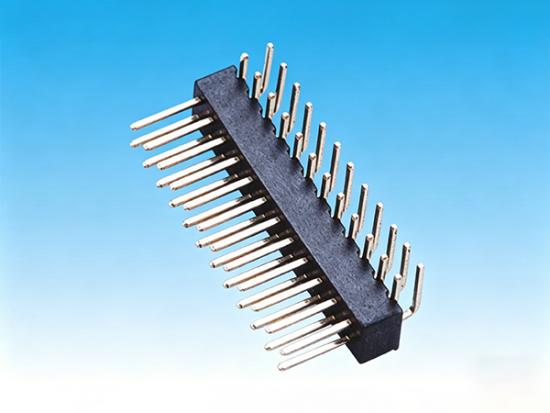

0.100"Pin Header,Single Plastic,Dual Row,Right Angle TypeProduct Origin:
Xiamen City, China.Color:
Red, yellow, blue, green, brown, black, white, greyShipping Port:
Xiamen port, China.Lead Time:
Within 7-10 working days as soon as we received the deposit./js/htmledit/kindeditor/attached/20240827/20240827161925_42153.jpg

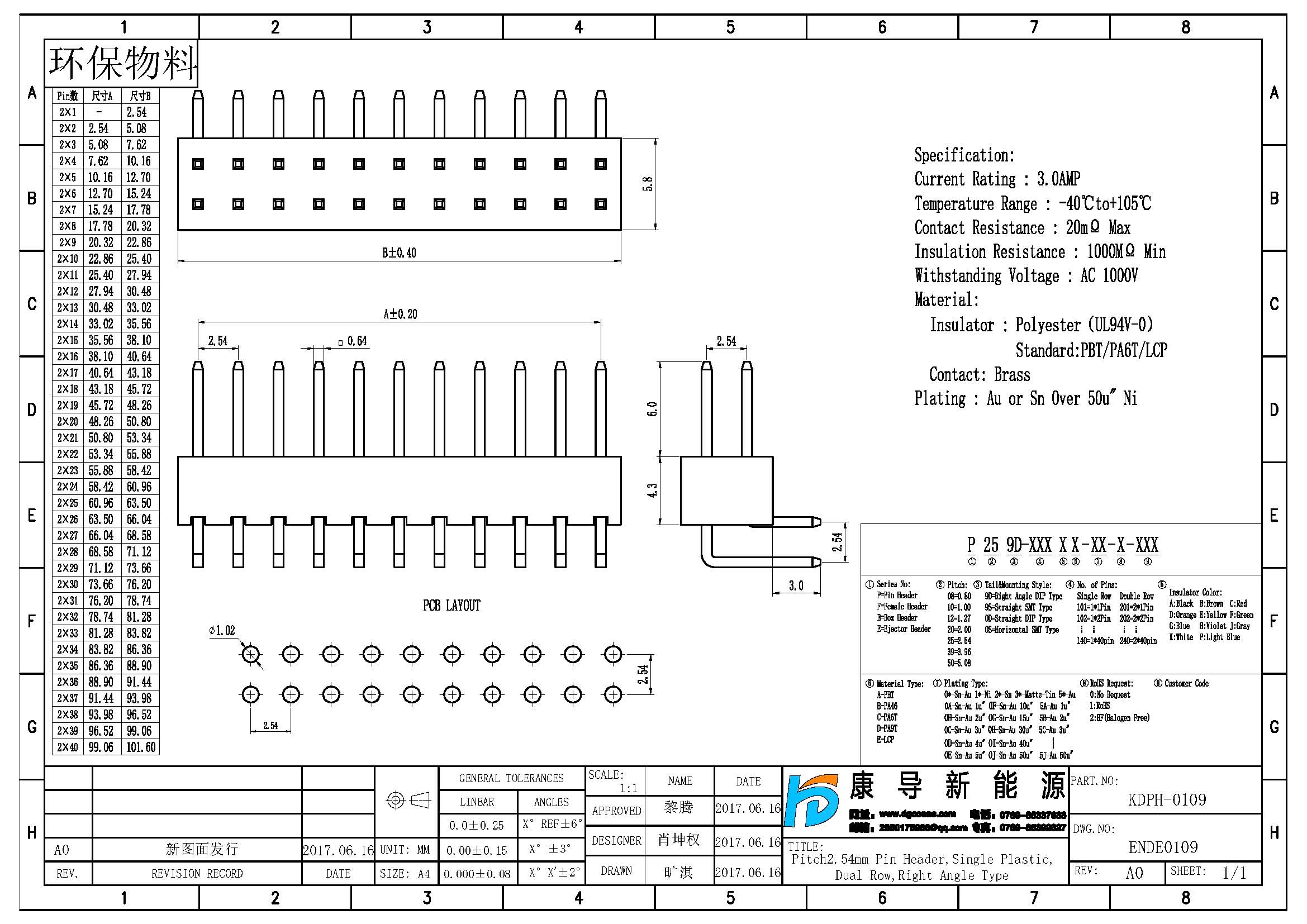

Spec:Pitch2.54mm Pin Header,Single Plastic,Dual Row,Right Angle Type
Pins:2*2-2*40
Plastics Height:4.3MM
Rated Voltage:250V AC DC
Rated Current:3A AC DC
Contact resistance:20mΩ Max
Insulation resistance:1000MΩ Min
Withstand Voltage:1000V AC/minute
Temperature Range:-40℃~+105℃
