2.54MM(.100")
KDEH-0017

KDEH-0017

  • Product Code:

    KDEH-0017
  • Order(MOQ):

    3000
  • Product Specifications:

    .100" Ejector Header,Right Angle
  • Product Origin:

    Xiamen City, China.
  • Color:

    Red, yellow, blue, green, brown, black, white, grey
  • Shipping Port:

    Xiamen port, China.
  • Lead Time:

    Within 7-10 working days as soon as we received the deposit.

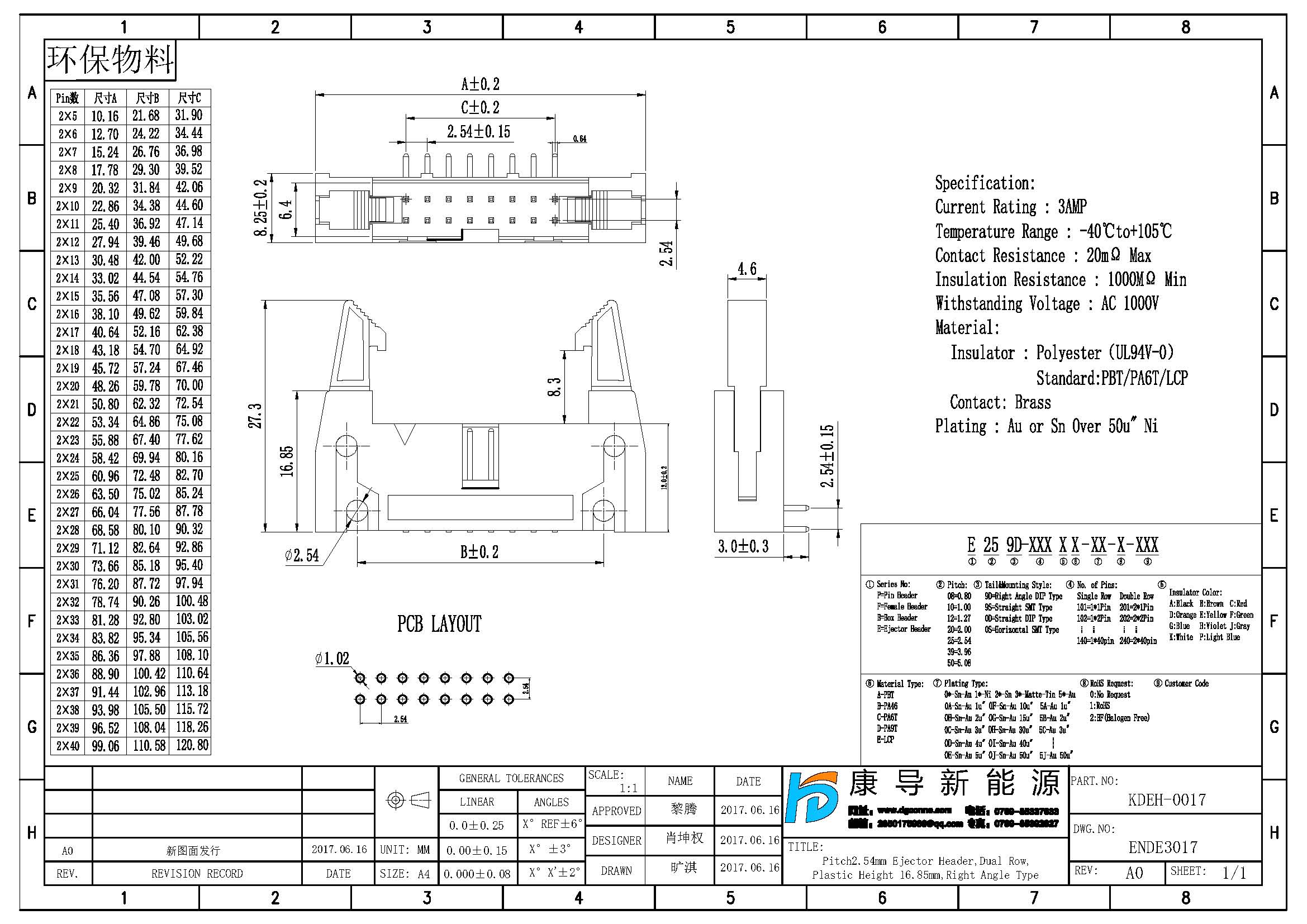

/js/htmledit/kindeditor/attached/20240903/20240903164056_59090.jpg

Pitch:2.54MM
Type:  Right Angle
Row: Dual
Pins:2*5~2*40
Plastics Height:27.30MM
Rated Voltage:250V AC DC
Rated Current:3A AC DC
Withstand Voltage:1000V AC/minute
Contact resistance:20mΩ Max
Insulation resistance:1000MΩ Min
Temperature Range:-40℃~+105℃
