Product Code:
KDEH-0016Order(MOQ):
3000Product Specifications:

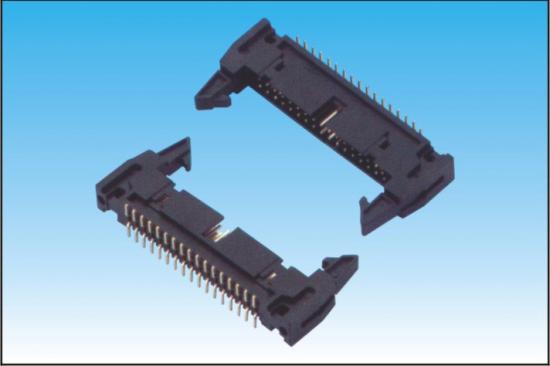

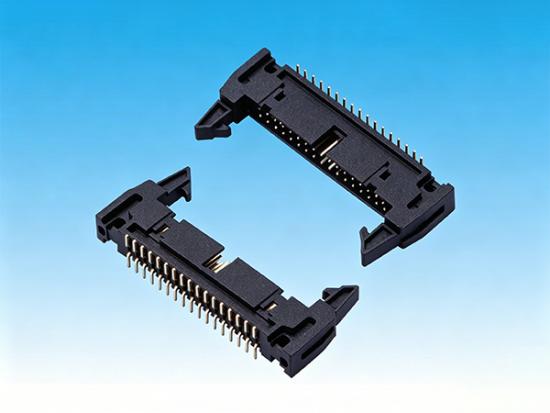

.100 Ejector Header,SMTProduct Origin:
Xiamen City, China.Color:
Red, yellow, blue, green, brown, black, white, greyShipping Port:
Xiamen port, China.Lead Time:

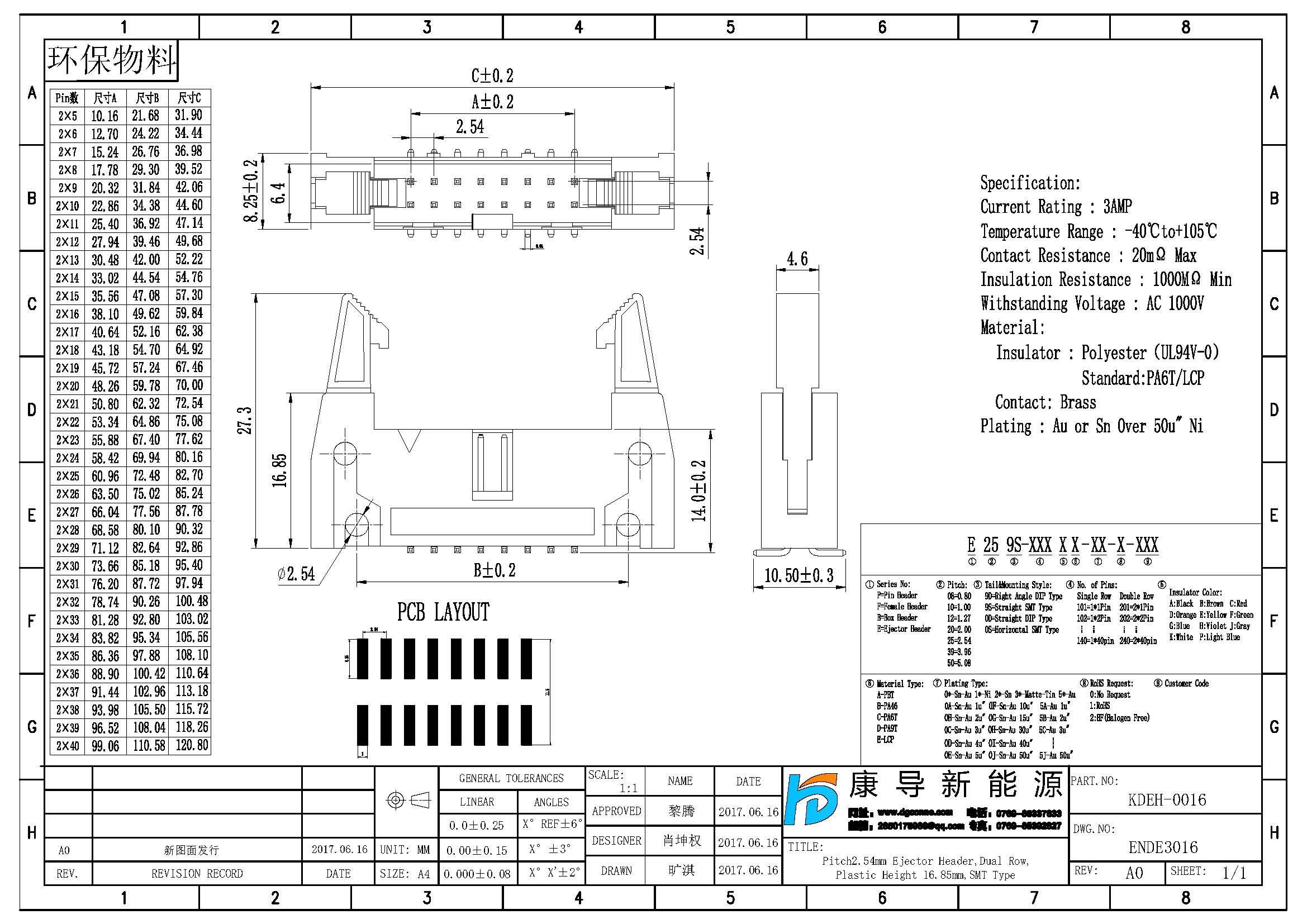

Within 7-10 working days as soon as we received the deposit./js/htmledit/kindeditor/attached/20240903/20240903165204_18074.jpg
Pitch:2.54MM
Type: SMT
Row: Dual
Pins:2*5~2*40
Plastics Height:27.30MM
Rated Voltage:250V AC DC
Rated Current:3A AC DC
Withstand Voltage:1000V AC/minute
Contact resistance:20mΩ Max
Insulation resistance:1000MΩ Min
Temperature Range:-40℃~+105℃
