5.08MM(.200")
45802

45082H00

  • Product Code:

    45082H00
  • Order(MOQ):

    3000
  • Product Specifications:

    0.200 Wire end rubber shell
  • Product Origin:

    Xiamen City, China.
  • Color:

    Red, yellow, blue, green, brown, black, white, grey
  • Shipping Port:

    Xiamen port, China.
  • Lead Time:

    Within 7-10 working days as soon as we received the deposit.

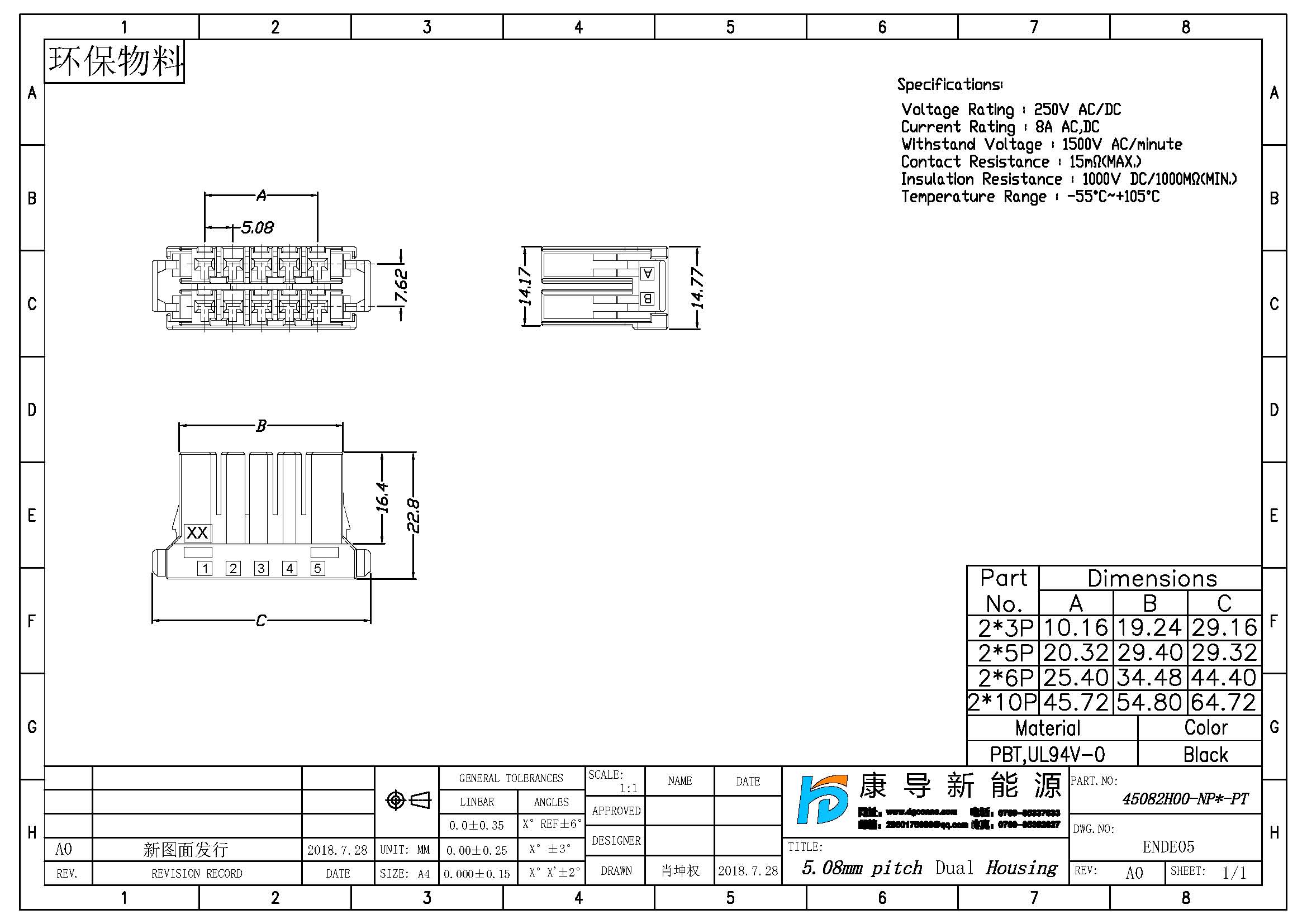

/js/htmledit/kindeditor/attached/20240822/20240822180931_13318.jpg

Spec:5.08mm PITCH HOUSING
Poles:2*3~2*10
Material:PBT
Rated Current:8A AC DC
Rated Voltage:250V AC DC
Contact resistance:15mΩ Max
Insulation resistance:100MΩ Min
Withstand Voltage:1500V AC/minute
