5.08MM(.200")
45802

45082W90

  • Product Code:

    45082W90
  • Order(MOQ):

    3000
  • Product Specifications:

    0.200 90°Dual WAFER DIP TYPE
  • Product Origin:

    Xiamen City, China.
  • Color:

    Red, yellow, blue, green, brown, black, white, grey
  • Shipping Port:

    Xiamen port, China.
  • Lead Time:

    Within 7-10 working days as soon as we received the deposit.

/js/htmledit/kindeditor/attached/20240822/20240822180822_95242.jpg

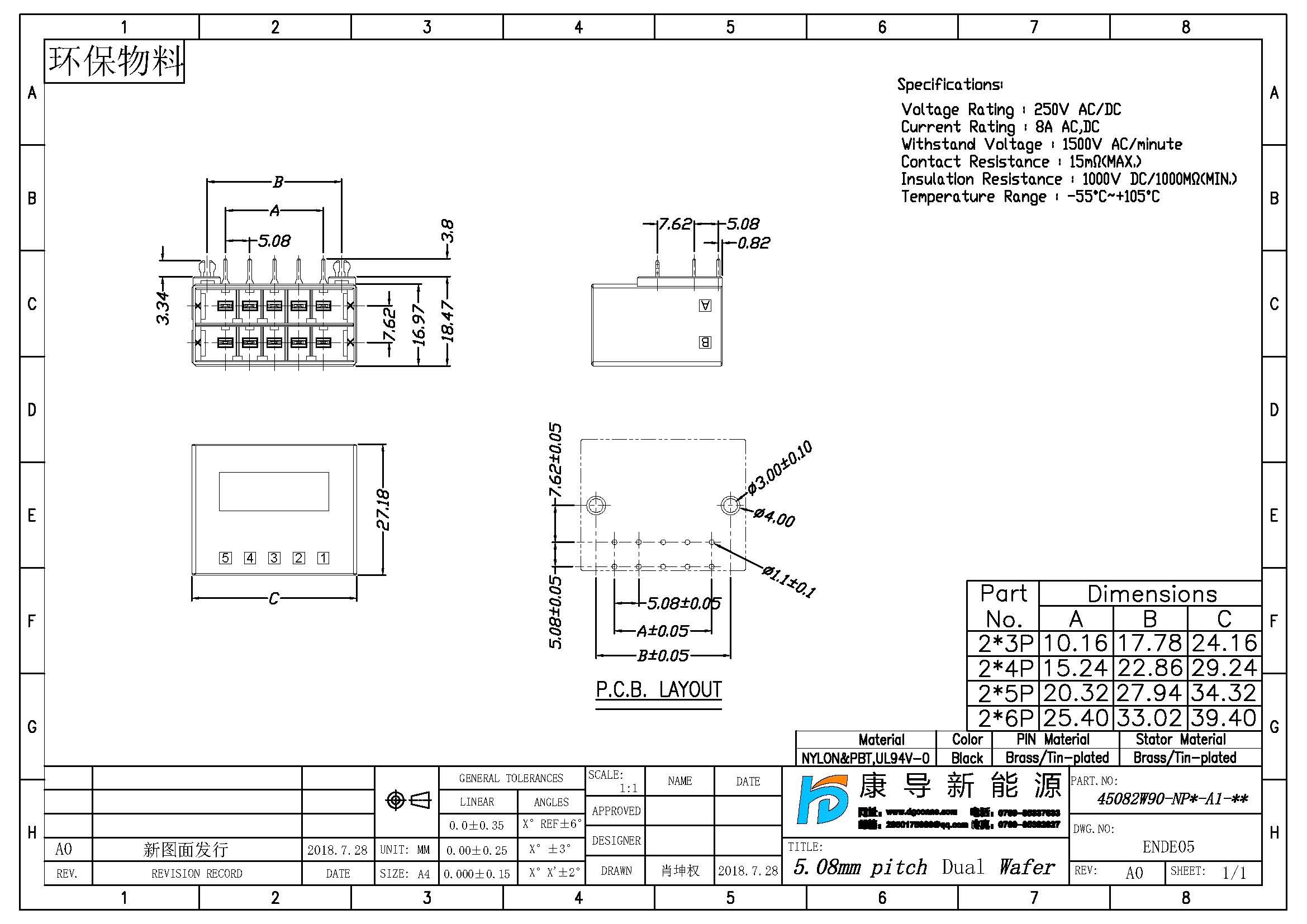

Spec:5.08mm PITCH 90° Dual WAFER DIP TYPE
Poles:2*3 2*4 2*5 2*6
Rated Current:8A AC DC
Rated Voltage:250V AC DC
Contact resistance:15mΩ Max
Insulation resistance:100MΩ Min
Withstand Voltage:1500V AC/minute
Temperature Range:-55℃~+105℃
