Product Code:
43811W90Order(MOQ):
3000Product Specifications:
0.150 90°Dual WAFER DIP TYPEProduct Origin:
Xiamen City, China.Color:
Red, yellow, blue, green, brown, black, white, greyShipping Port:
Xiamen port, China.Lead Time:

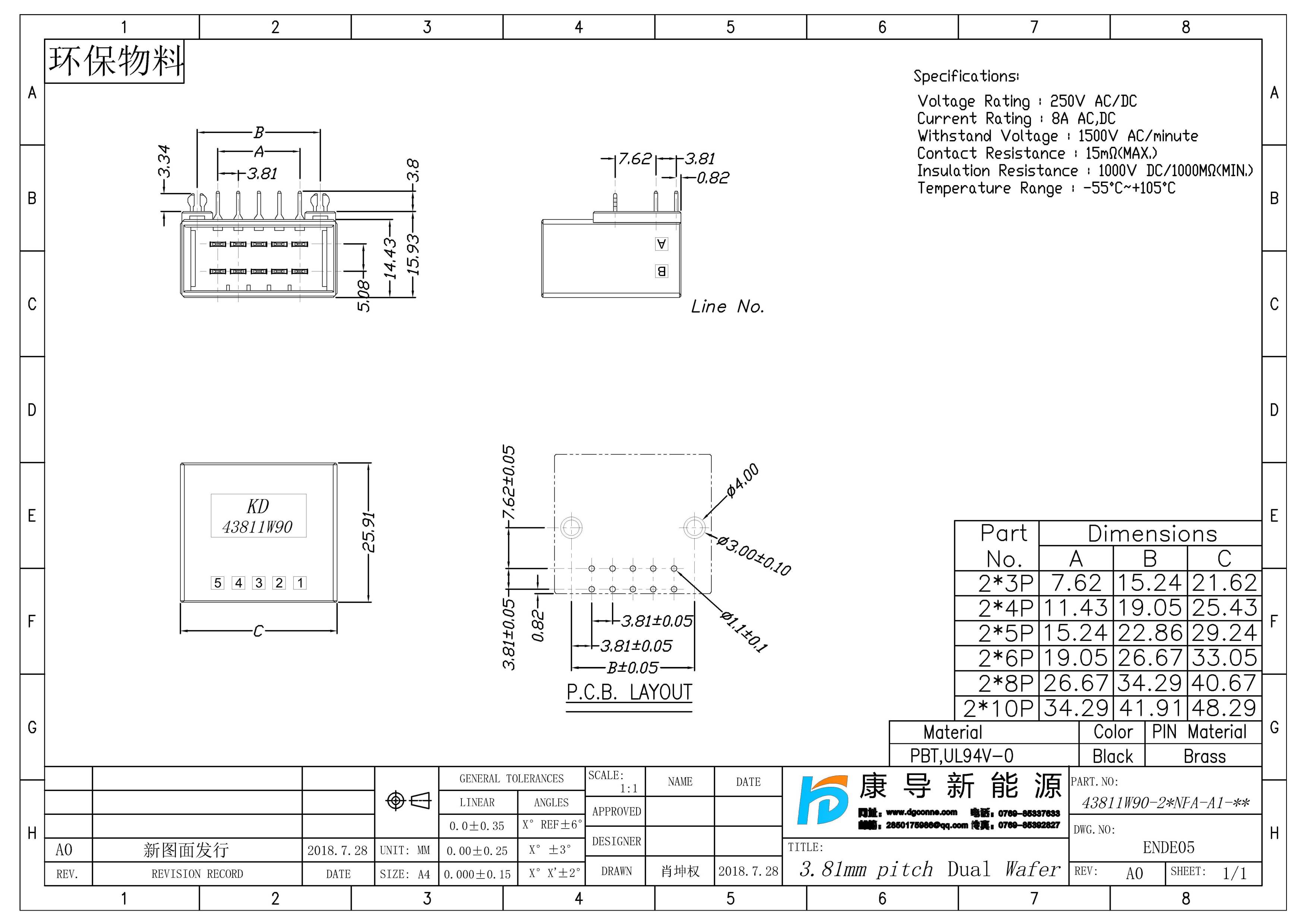

Within 7-10 working days as soon as we received the deposit./js/htmledit/kindeditor/attached/20240823/20240823161751_26720.jpg
Spec:3.81mm PITCH 90° Dual WAFER DIP TYPE
Poles:2*3~2*10
Rated Current:8A AC DC
Rated Voltage:250V AC DC
Contact resistance:15mΩ Max
Insulation resistance:1000MΩ Min
Withstand Voltage:1500V AC/minute
Temperature Range:-55℃~+105℃
