3.81MM(.150")
33811

33811TOP

  • Product Code:

    33811TOP
  • Order(MOQ):

    3000
  • Product Specifications:

    0.150 PITCH TERMINAL
  • Product Origin:

    Xiamen City, China.
  • Color:

    Red, yellow, blue, green, brown, black, white, grey
  • Shipping Port:

    Xiamen port, China.
  • Lead Time:

    Within 7-10 working days as soon as we received the deposit.

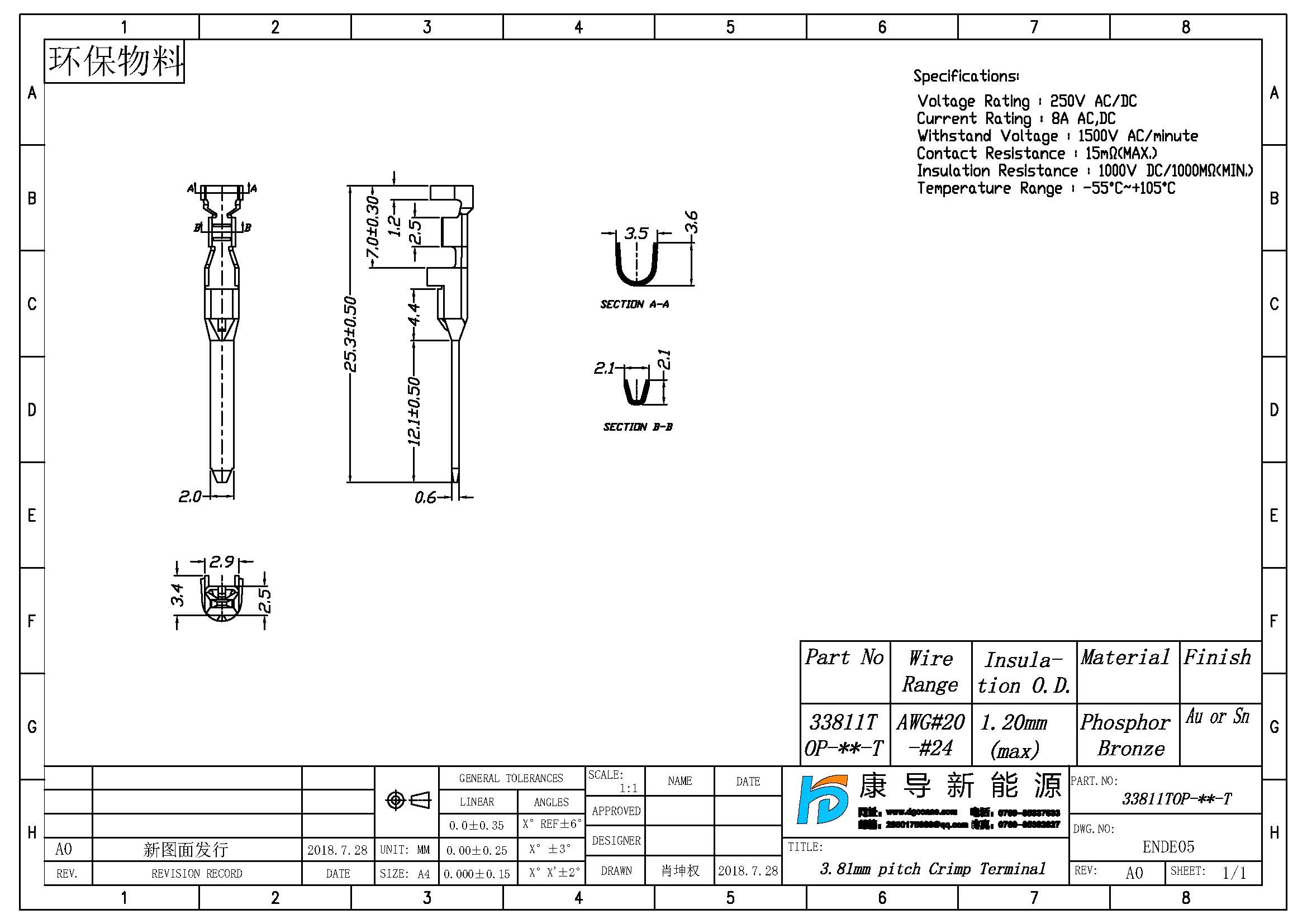

/js/htmledit/kindeditor/attached/20240823/20240823104115_27491.jpg

Spec:3.81mm PITCH TERMINAL
Wrie Range:AWG#20~#24
Insulation O.D.:1.2mm
Material:Phosphor Bronze
Plating:Au or Sn
Rated Current:8A AC DC
Rated Voltage:250V AC DC
Contact resistance:15mΩ Max
Insulation resistance:1000MΩ Min
Withstand Voltage:1500V AC/minute
Temperature Range:-55℃~+105℃
