Product Code:
33811TOPOrder(MOQ):
3000Product Specifications:

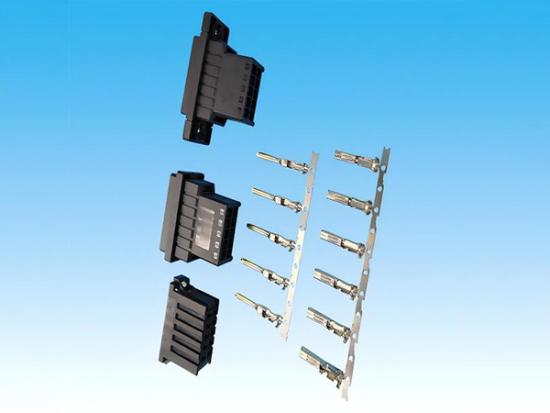

0.150 amphenol connectorProduct Origin:
Xiamen City, China.Color:
Red, yellow, blue, green, brown, black, white, greyShipping Port:
Xiamen port, China.Lead Time:
Within 7-10 working days as soon as we received the deposit./js/htmledit/kindeditor/attached/20240823/20240823160034_39209.jpg

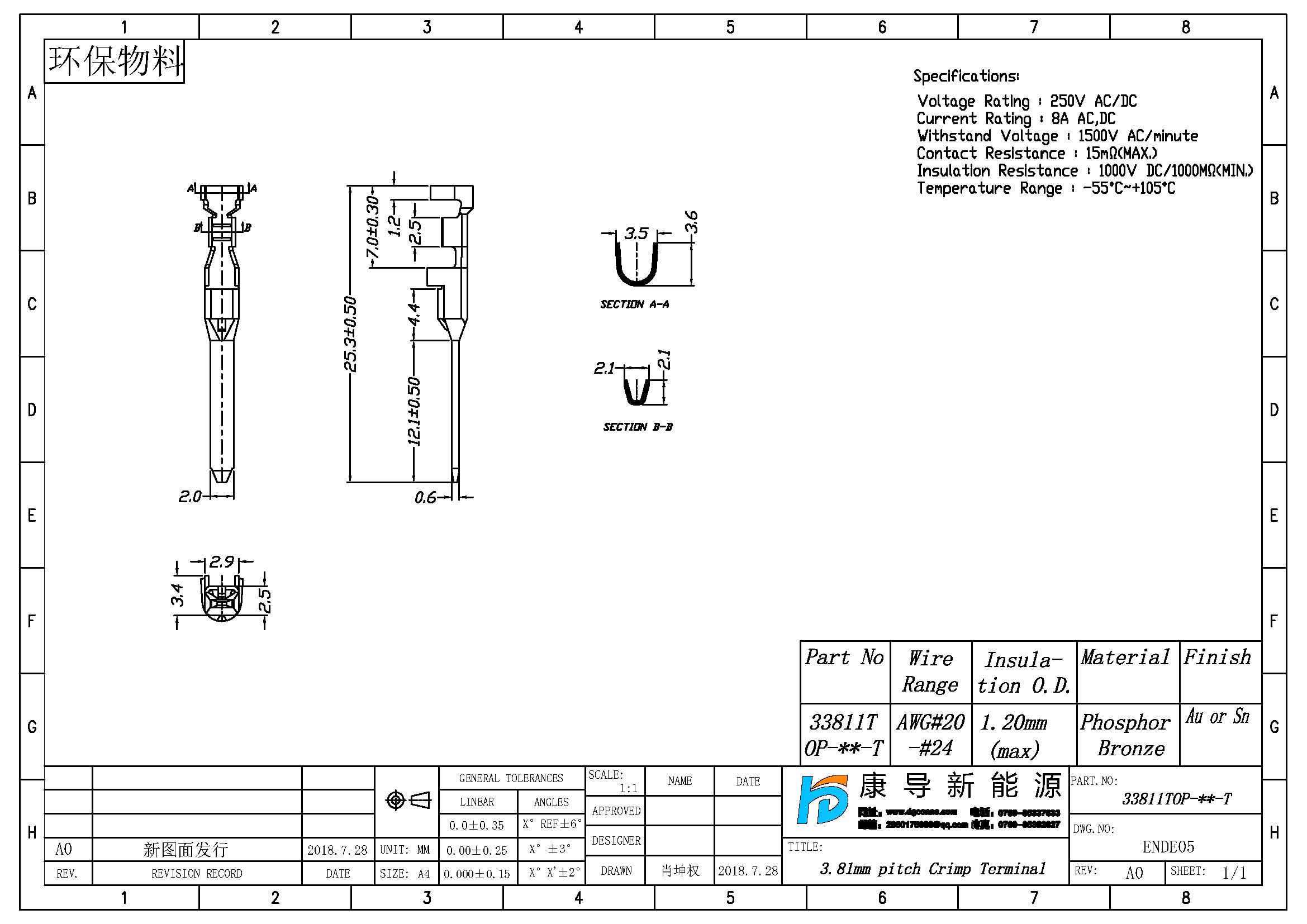

Spec:3.81mm PITCH TERMINAL
Wrie Range:AWG#20~#24
Insulation O.D.:1.2mm
Material:Phosphor Bronze
Plating:Au or Sn
Rated Current:8A AC DC
Rated Voltage:250V AC DC
Contact resistance:15mΩ Max
Insulation resistance:1000MΩ Min
Withstand Voltage:1500V AC/minute
Temperature Range:-55℃~+105℃
