2.54MM(.100")
42541W

42541W00

  • Product Code:

    42541W00
  • Order(MOQ):

    3000
  • Product Specifications:

    0.100"180°Dual WAFER DIP TYPE
  • Product Origin:

    Xiamen City, China.
  • Color:

    Red, yellow, blue, green, brown, black, white, grey
  • Shipping Port:

    Xiamen port, China.
  • Lead Time:

    Within 7-10 working days as soon as we received the deposit.

/js/htmledit/kindeditor/attached/20240826/20240826095444_75991.jpg

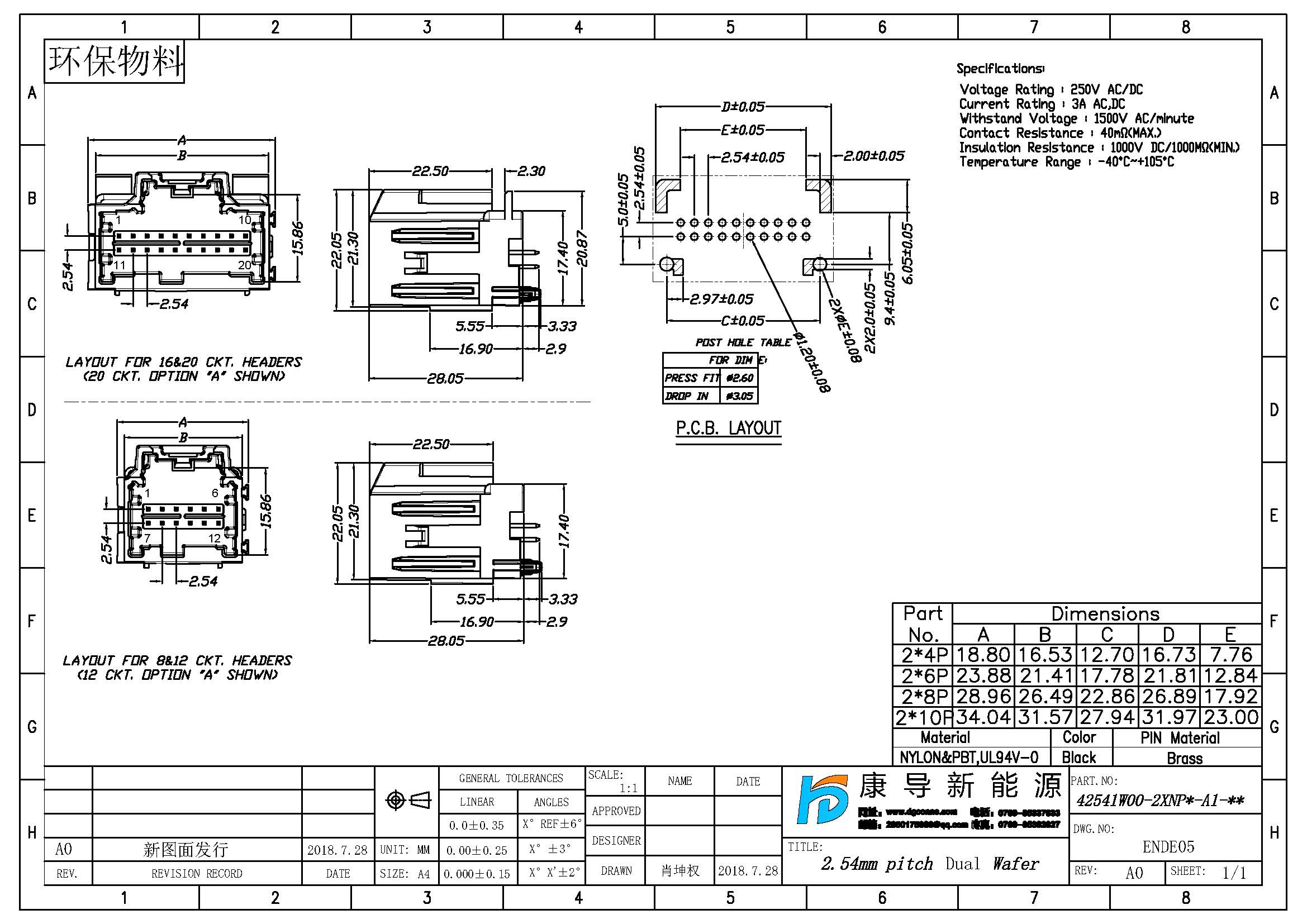

Spec:2.54mm PITCH 180° Dual WAFER DIP TYPE
Poles:2*4~2*10
Rated Current:3A AC DC
Rated Voltage:250V AC DC
Contact resistance:40mΩ Max
Insulation resistance:1000MΩ Min
Withstand Voltage:1500V AC/minute
Temperature Range:-40℃~+105℃
