Product Code:
24201ALOrder(MOQ):
3000Product Specifications:
0.165"180°WAFER DIP TYPE columnProduct Origin:
Xiamen City, China.Color:
Red, yellow, blue, green, brown, black, white, greyShipping Port:
Xiamen port, China.Lead Time:
Within 7-10 working days as soon as we received the deposit./js/htmledit/kindeditor/attached/20240904/20240904181344_85560.jpg

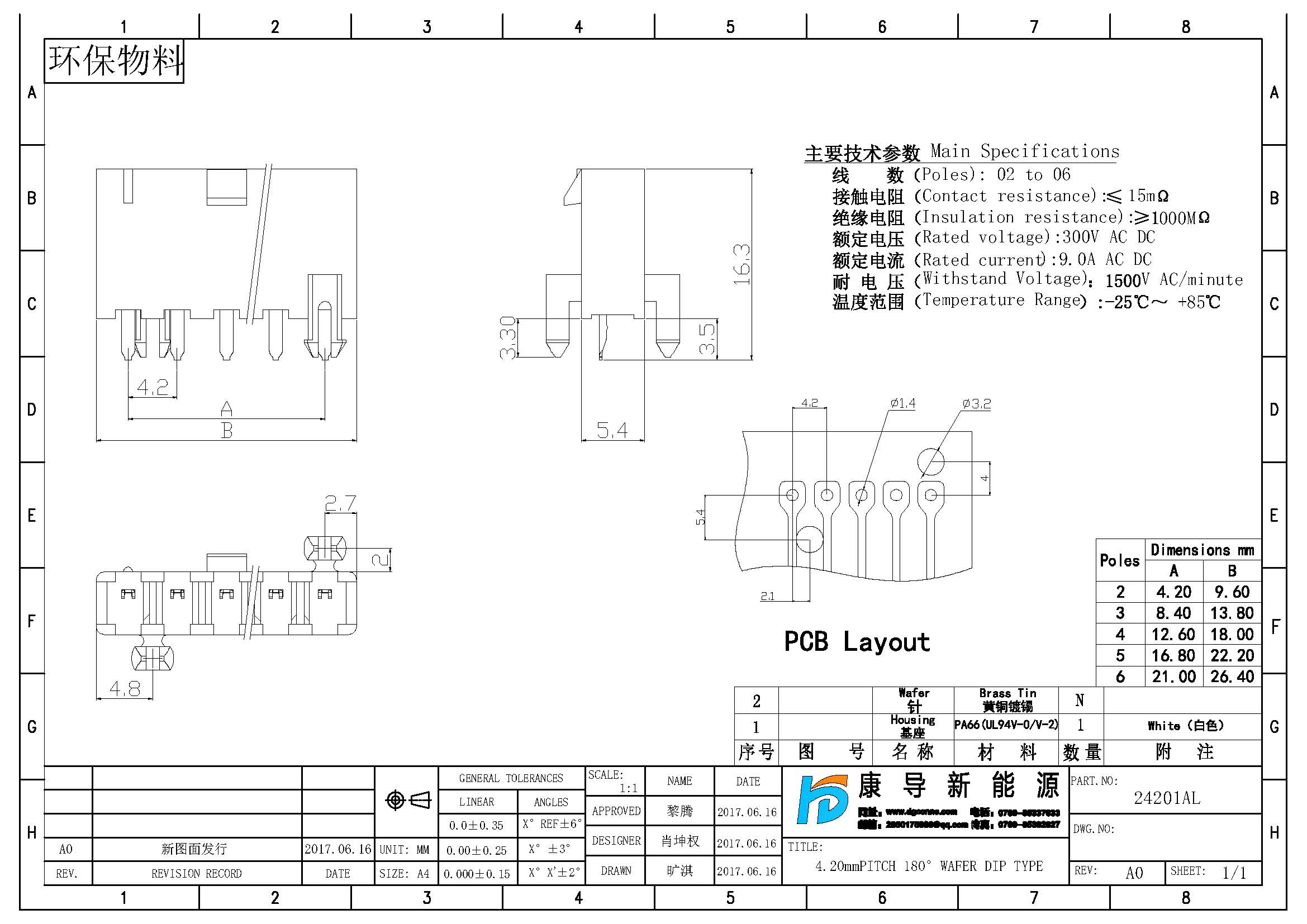

Spec:4.20mm PITCH 180° WAFER DIP TYPE
Poles:02-06
Contact resistance:20mΩ Max
Insulation resistance:1000MΩ Min
Rated Voltage:300V AC DC
Rated Current:9.0A AC DC
Withstand Voltage:1500V AC/minute
Temperature Range:-25℃~+85℃
