4.20MM(.165")
24201A2

24202WL2

  • Product Code:

    24202WL2
  • Order(MOQ):

    3000
  • Product Specifications:

    0.165"90° WAFER DIP TYPE
  • Product Origin:

    Xiamen City, China.
  • Color:

    Red, yellow, blue, green, brown, black, white, grey
  • Shipping Port:

    Xiamen port, China.
  • Lead Time:

    Within 7-10 working days as soon as we received the deposit.

/js/htmledit/kindeditor/attached/20240904/20240904162438_45392.jpg

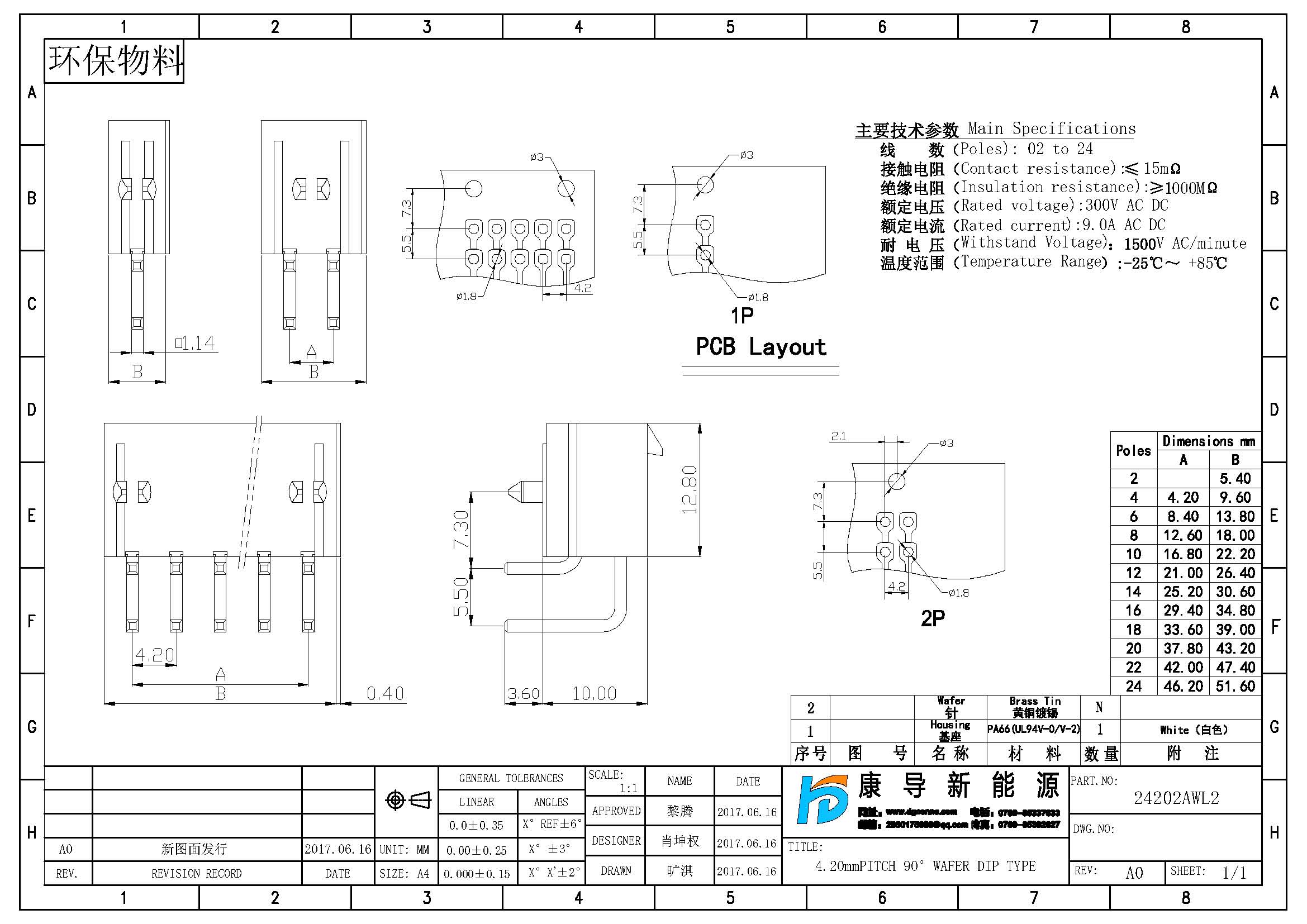

Spec:4.20mm PITCH 90° WAFER DIP TYPE
Poles:02-24
Contact resistance:20mΩ Max
Insulation resistance:1000MΩ Min
Rated Voltage:300V AC DC
Rated Current:9.0A AC DC
Withstand Voltage:1500V AC/minute
Temperature Range:-25℃~+85℃
