Product Code:
42508W00-B2Order(MOQ):
3000Product Specifications:
0.098"180°Dual WAFER DIP TYPE Solder jointProduct Origin:
Xiamen City, China.Color:
Red, yellow, blue, green, brown, black, white, greyShipping Port:
Xiamen port, China.Lead Time:
Within 7-10 working days as soon as we received the deposit./js/htmledit/kindeditor/attached/20240826/20240826135404_32194.jpg

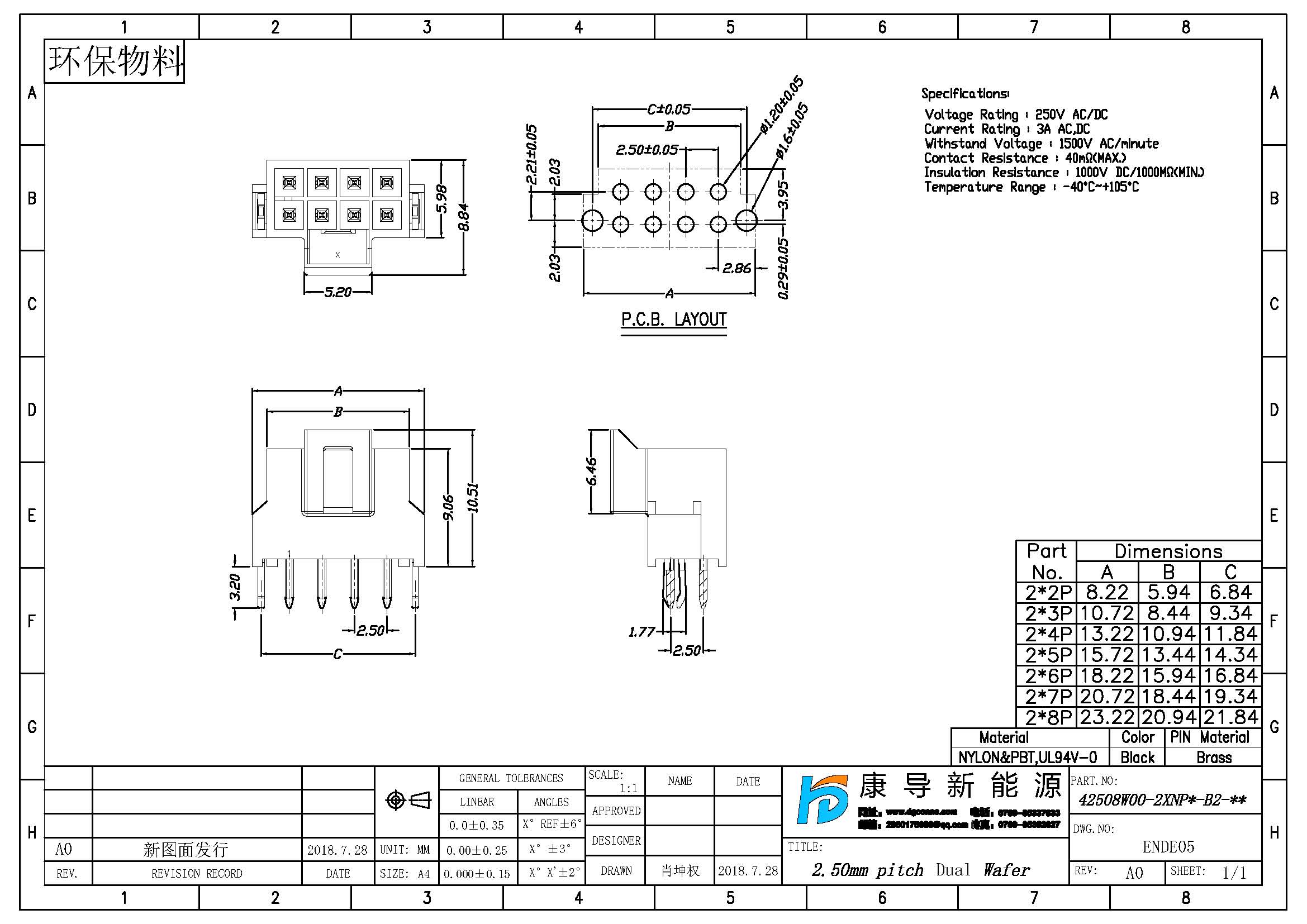

Spec:2.5mm PITCH 180° Dual WAFER DIP TYPE
Poles:2*2~2*8
Rated Current:3A AC DC
Rated Voltage:250V AC DC
Contact resistance:40mΩ Max
Insulation resistance:1000MΩ Min
Withstand Voltage:1500V AC/minute
Temperature Range:-40℃~+105℃
