2.50MM(.098")
42507

42507TOP

  • Product Code:

    42507TOP
  • Order(MOQ):

    3000
  • Product Specifications:

    0.098"Positioning buckle
  • Product Origin:

    Xiamen City, China.
  • Color:

    Red, yellow, blue, green, brown, black, white, grey
  • Shipping Port:

    Xiamen port, China.
  • Lead Time:

    Within 7-10 working days as soon as we received the deposit.

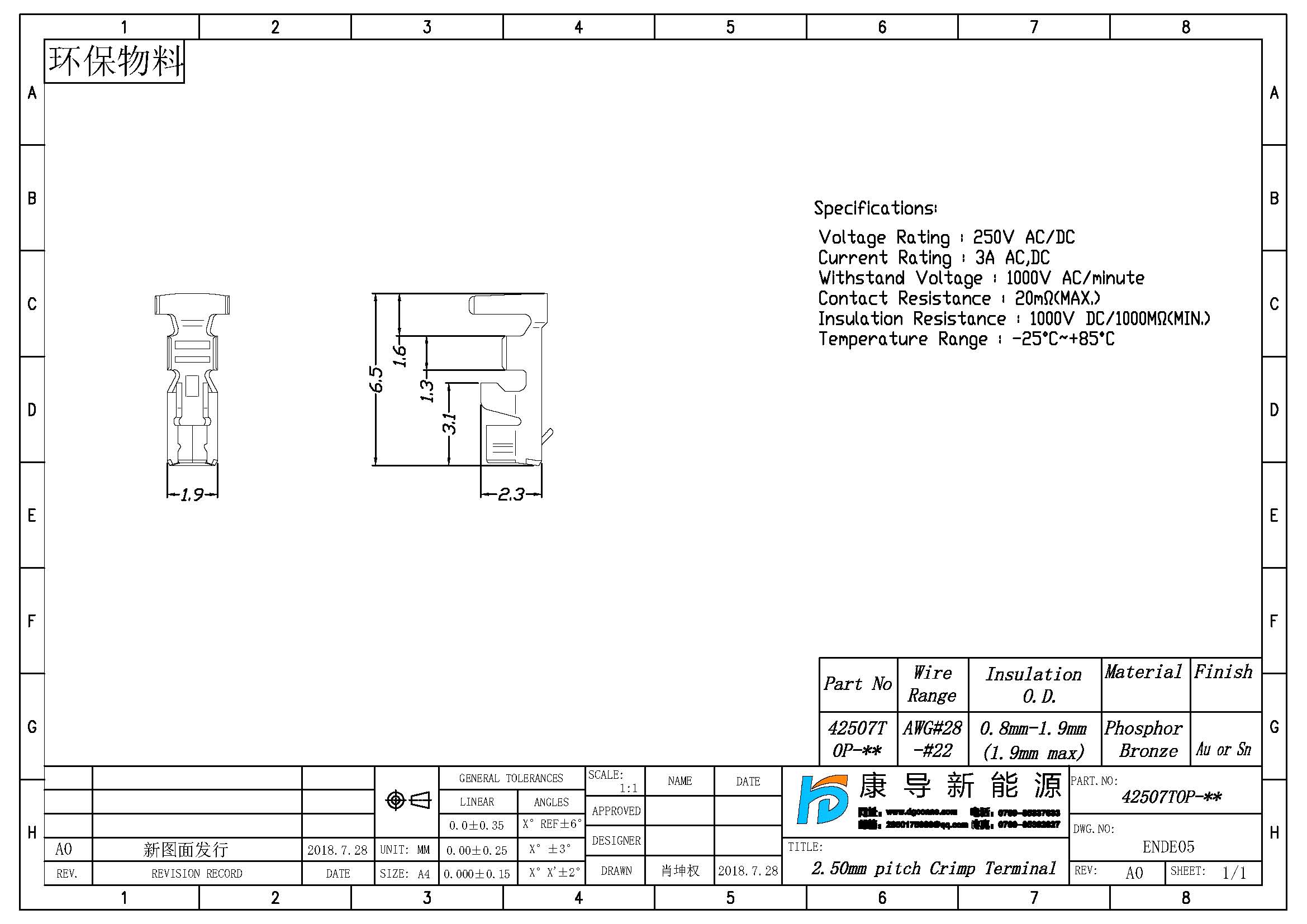

/js/htmledit/kindeditor/attached/20240826/20240826141244_79408.jpg

Spec:2.5mm PITCH TERMINAL
Wrie Range:AWG#22~#28
Insulation O.D.:0.8mm-1.9mm
Material:Phosphor Bronze
Plating:Au or Sn
Rated Current:3A AC DC
Rated Voltage:250V AC DC
Contact resistance:20mΩ Max
Insulation resistance:1000MΩ Min
Withstand Voltage:1000V AC/minute
Temperature Range:-25℃~+85℃
