2.50MM(.098")
42505

42505TOP

  • Product Code:

    42505TOP
  • Order(MOQ):

    3000
  • Product Specifications:

    0.098"amphenol connector
  • Product Origin:

    Xiamen City, China.
  • Color:

    Red, yellow, blue, green, brown, black, white, grey
  • Shipping Port:

    Xiamen port, China.
  • Lead Time:

    Within 7-10 working days as soon as we received the deposit.

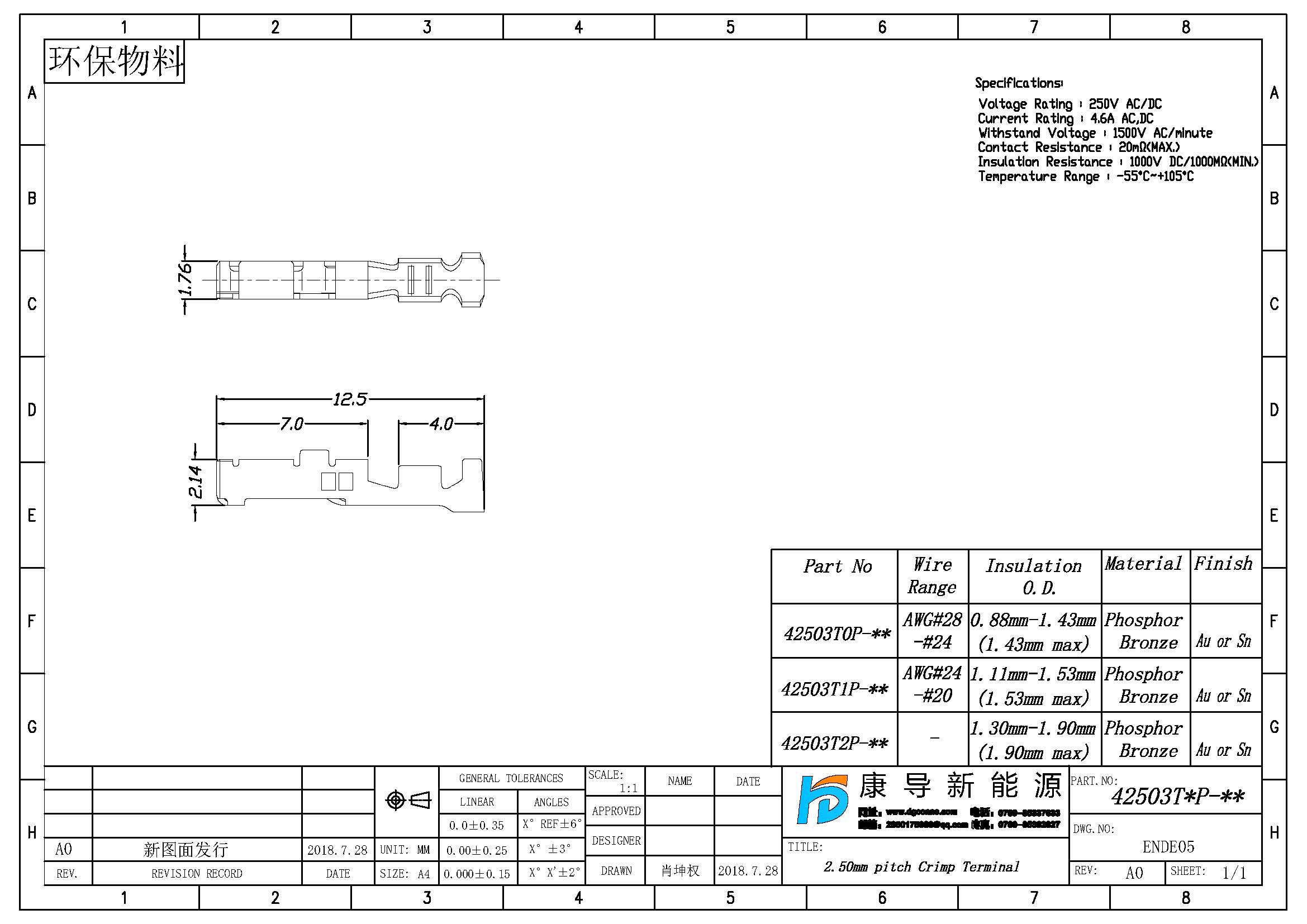

/js/htmledit/kindeditor/attached/20240826/20240826143047_78198.jpg

Spec:2.5mm PITCH TERMINAL
Wrie Range:AWG#24~#28  AWG#20~#24
Insulation O.D.:0.88mm-1.43mm  1.11mm-1.53mm  1.3mm-1.9mm
Material:Phosphor Bronze
Plating:Au or Sn
Rated Current:4.6A AC DC
Rated Voltage:250V AC DC
Contact resistance:20mΩ Max
Insulation resistance:1000MΩ Min
Withstand Voltage:1500V AC/minute
Temperature Range:-55℃~+105℃
