2.50MM(.098")
42505

42505W90

  • Product Code:

    42505W90
  • Order(MOQ):

    3000
  • Product Specifications:

    0.098"90°Dual WAFER DIP TYPE waterproof
  • Product Origin:

    Xiamen City, China.
  • Color:

    Red, yellow, blue, green, brown, black, white, grey
  • Shipping Port:

    Xiamen port, China.
  • Lead Time:

    Within 7-10 working days as soon as we received the deposit.

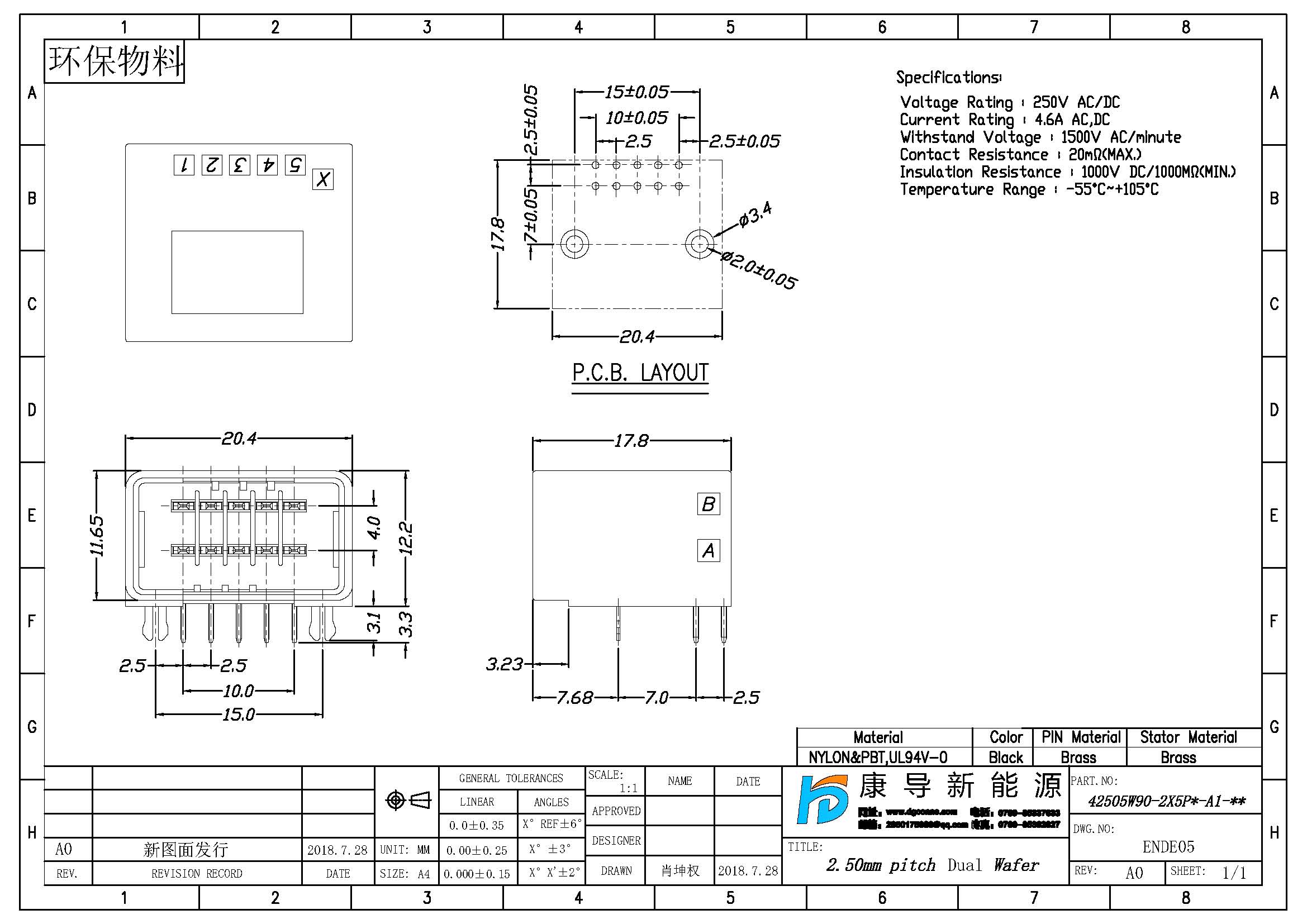

/js/htmledit/kindeditor/attached/20240826/20240826142139_62211.jpg

Specifications Model: PH:2.50MM H:18.30MM 2*NP 90 degrees waterproof

Product spacing: 2.50MM

Number of circuits: 18P 26P 34P 40P

Color: Black

Plastic material: PA9T

Plastic height: 18.30MM

Terminal length: 20.70MM

Metal material: Brass/high conductivity copper

Electroplating material: tin plating/half gold plating

Operating temperature: -45°C to +125°C

Contact type: Welding

Loading direction: parallel

Loading size: AWG16#-AWG20#

Maximum current: 3.0A

Maximum temperature resistance: 260 degrees

Maximum voltage: 1000V

Rated voltage: 250V
