Product Code:
42502TOPOrder(MOQ):
3000Product Specifications:
0.098"amphenol connectorProduct Origin:
Xiamen City, China.Color:
Red, yellow, blue, green, brown, black, white, greyShipping Port:
Xiamen port, China.Lead Time:
Within 7-10 working days as soon as we received the deposit./js/htmledit/kindeditor/attached/20240826/20240826202307_82991.jpg

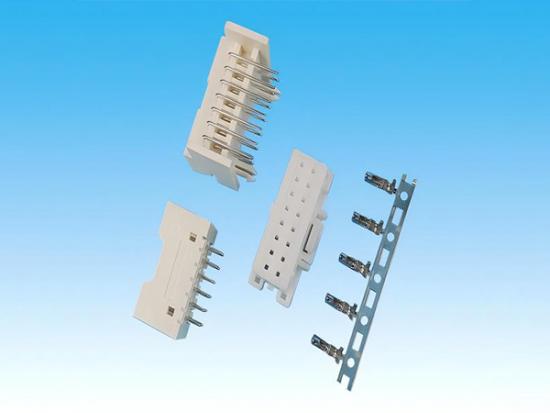

Spec:2.5mm PITCH TERMINAL
Wrie Range:AWG#24~#20 AWG#22~#28 AWG#22~#26
Insulation O.D.:1.5mm-1.9mm 0.8mm-1.9mm 1.3mm-1.7mm
Material:Phosphor Bronze
Plating:Au or Sn
Rated Current:3A AC DC
Rated Voltage:250V AC DC
Contact resistance:20mΩ Max
Insulation resistance:1000MΩ Min
Withstand Voltage:1000V AC/minute
Temperature Range:-25℃~+85℃
