Product Code:
42502W00Order(MOQ):
3000Product Specifications:
0.098"180°Dual WAFER DIP TYPEProduct Origin:
Xiamen City, China.Color:
Red, yellow, blue, green, brown, black, white, greyShipping Port:
Xiamen port, China.Lead Time:
Within 7-10 working days as soon as we received the deposit./js/htmledit/kindeditor/attached/20240826/20240826202021_48049.jpg

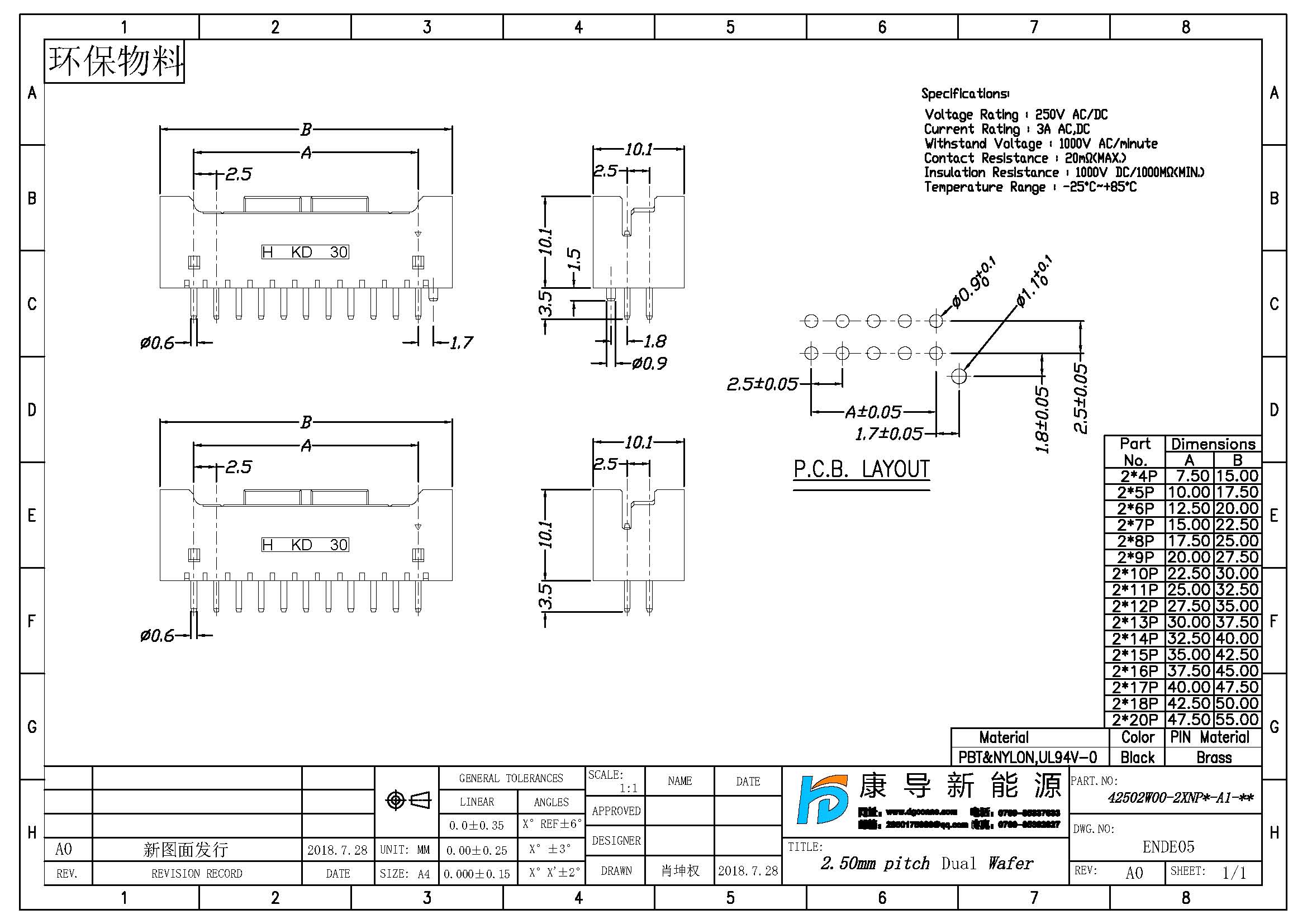

Spec:2.5mm PITCH 180° Dual WAFER DIP TYPE
Poles:2*4~2*20
Rated Current:3A AC DC
Rated Voltage:250V AC DC
Contact resistance:20mΩ Max
Insulation resistance:1000MΩ Min
Withstand Voltage:1000V AC/minute
Temperature Range:-25℃~+85℃
