2.20MM(.087")
42204

42204TOP

  • Product Code:

    42204TOP
  • Order(MOQ):

    3000
  • Product Specifications:

    0.087"amphenol connector
  • Product Origin:

    Xiamen City, China.
  • Color:

    Red, yellow, blue, green, brown, black, white, grey
  • Shipping Port:

    Xiamen port, China.
  • Lead Time:

    Within 7-10 working days as soon as we received the deposit.

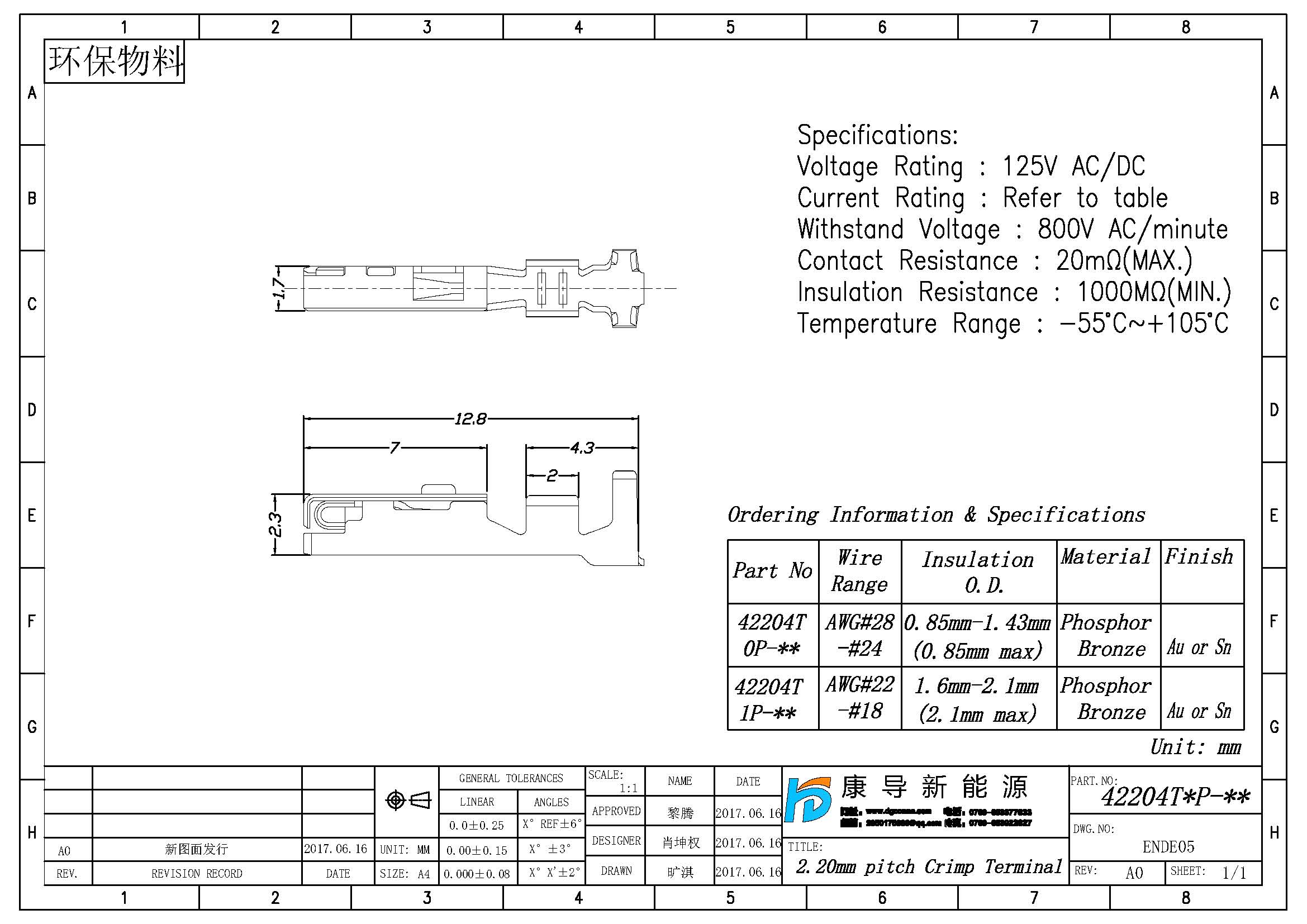

/js/htmledit/kindeditor/attached/20240827/20240827135414_97364.jpg

Spec:2.2mm PITCH TERMINAL
Wrie Range:AWG#24~#28  AWG#18~#22
Insulation O.D.:0.85mm-1.43mm  1.6mm-2.1mm
Material:Phosphor Bronze
Plating:Au or Sn
Rated Current:Refer to table
Rated Voltage:125V AC DC
Contact resistance:20mΩ Max
Insulation resistance:1000MΩ Min
Withstand Voltage:800V AC/minute
Temperature Range:-55℃~+105℃
